HARNESS LAYOUT
EL-93wiring diagramConnectors and components vary by drive model (L.H. drive model vs R.H. drive model). D1/D2 connect to M18/M19 for L.H. drive; D11/D12 connect to M54/M55 for R.H. drive. D9 is door lock actuator (R.H. drive model) or unlabeled connector (L.H. drive model). D13 is power window sub switch (R.H. drive model only). Similar distinctions apply to R.H. door harness connectors D101-D114.
Door Harness L.H.

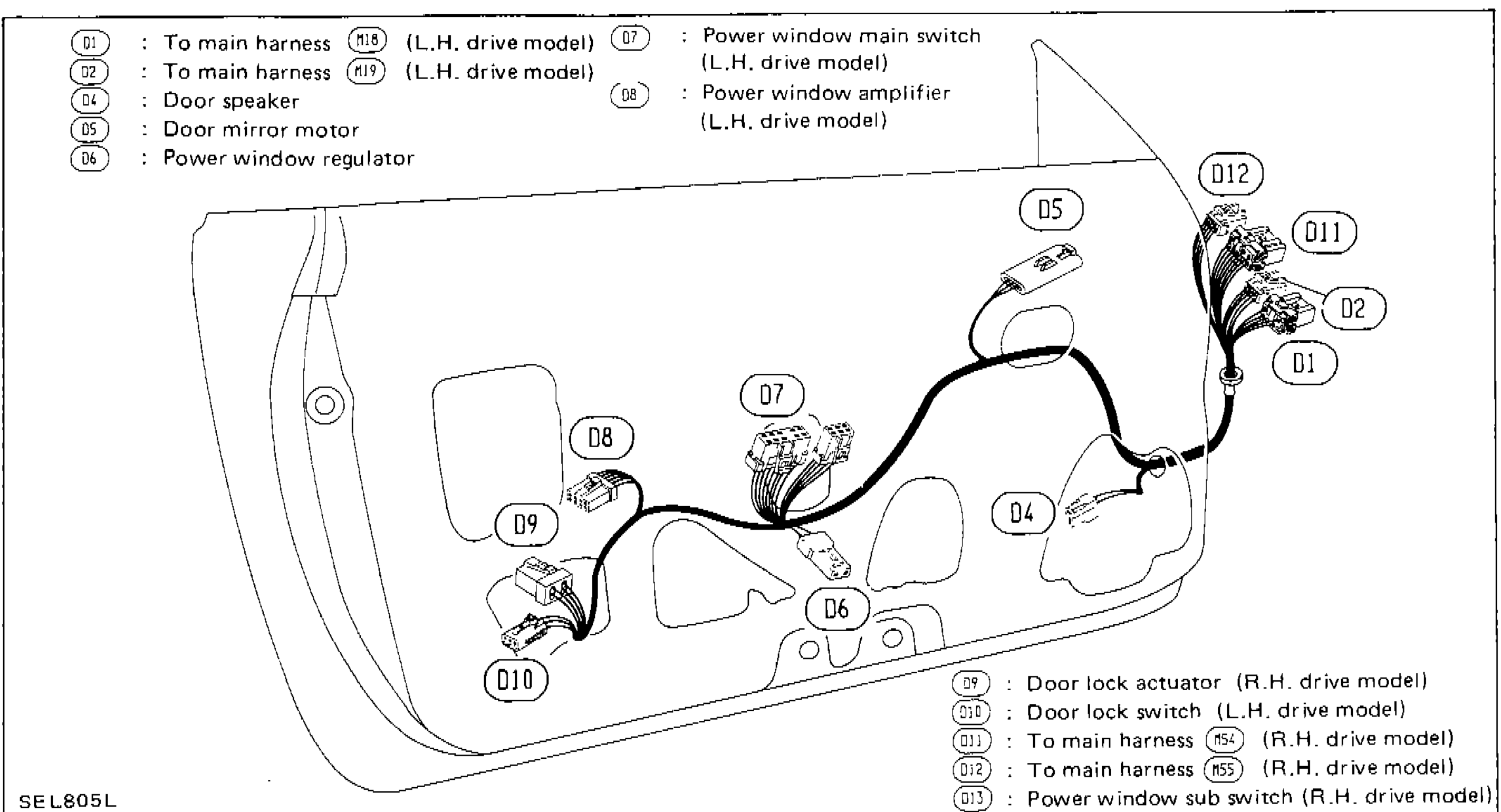

Component LocationFig. fig1
Door Harness L.H. connector and component callout legend
SEL805L
1D1 : To main harness M18 (L.H. drive model)(top-right)
2D2 : To main harness M19 (L.H. drive model)(top-right)
3D4 : Door speaker(mid-right)
4D5 : Door mirror motor(top-right)
5D6 : Power window regulator(mid)
6D7 : Power window main switch (L.H. drive model)(top-right)
7D8 : Power window amplifier (L.H. drive model)(top-right)
8D9 : (connector)(mid-left)
9D10 : (connector)(lower-left)
10D11 : (connector)(top-right)
11D12 : (connector)(top-right)
12D9 : Door lock actuator (R.H. drive model)(lower-right legend)
13D10 : Door lock switch (L.H. drive model)(lower-right legend)
14D11 : To main harness M54 (R.H. drive model)(lower-right legend)
15D12 : To main harness M55 (R.H. drive model)(lower-right legend)
16D13 : Power window sub switch (R.H. drive model)(lower-right legend)
Door Harness R.H.

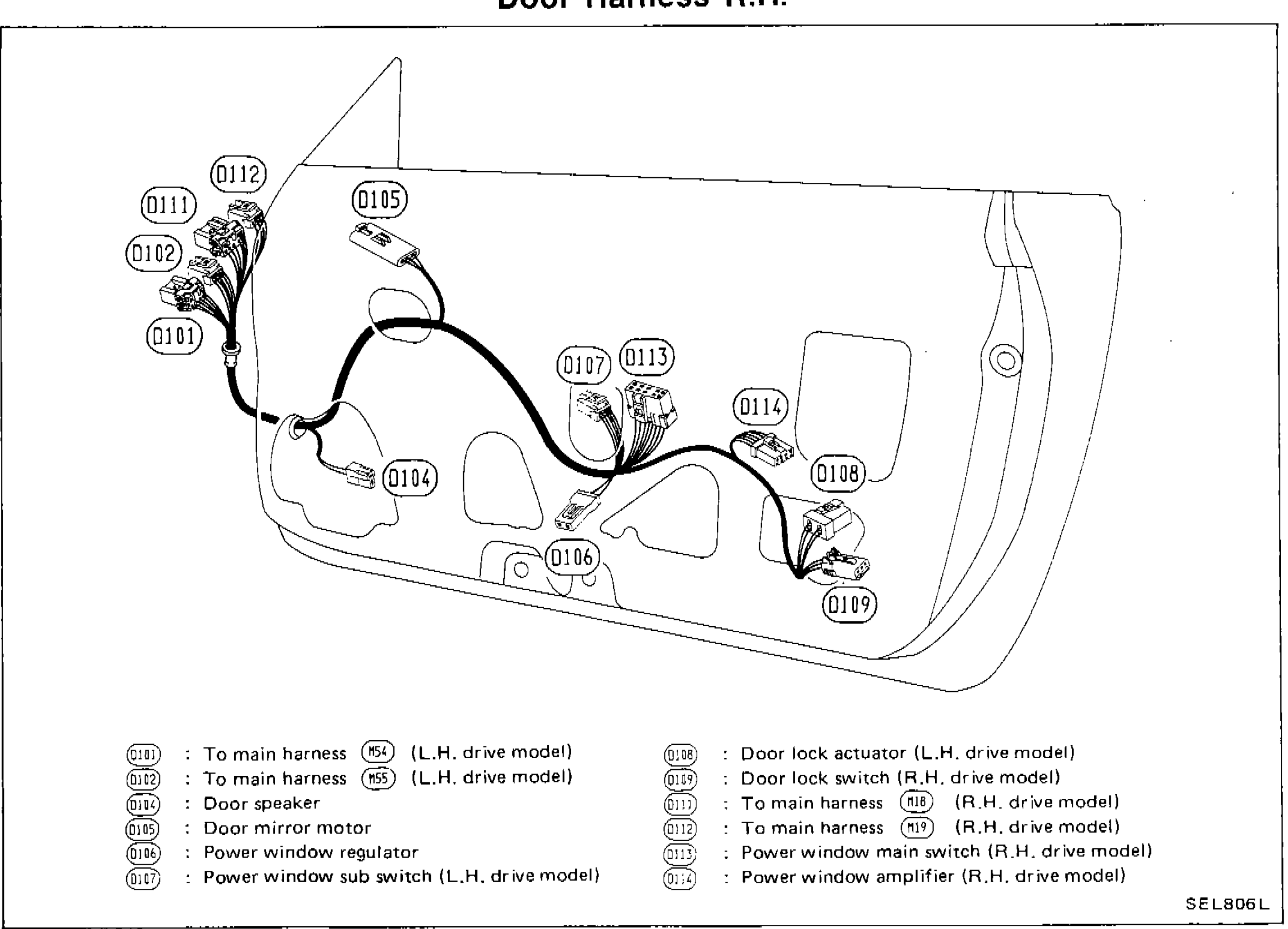

Component LocationFig. fig2
Door Harness R.H. connector and component callout legend
SEL806L
1D101 : To main harness M54 (L.H. drive model)(top-left)
2D102 : To main harness M55 (L.H. drive model)(top-left)
3D104 : Door speaker(mid-left)
4D105 : Door mirror motor(upper-left)
5D106 : Power window regulator(lower-mid)
6D107 : Power window sub switch (L.H. drive model)(mid)
7D108 : Door lock actuator (L.H. drive model)(lower-right legend)
8D109 : Door lock switch (R.H. drive model)(lower-right legend)
9D111 : (connector)(top-left)
10D112 : (connector)(top-left)
11D113 : To main harness M18 (R.H. drive model)(lower-right legend)
12D112 : To main harness M19 (R.H. drive model)(lower-right legend)
13D113 : (connector in diagram)(mid)
14D114 : (connector in diagram)(mid)
15D108 : (connector in diagram)(lower-right)
16D109 : (connector in diagram)(lower-right)
17D113 : Power window main switch (R.H. drive model)(lower-right legend)
18D114 : Power window amplifier (R.H. drive model)(lower-right legend)
