WARNING LAMPS AND CHIME

EL-64prose procedure

Diode Check

  1. 1
    Check continuity using an ohmmeter.

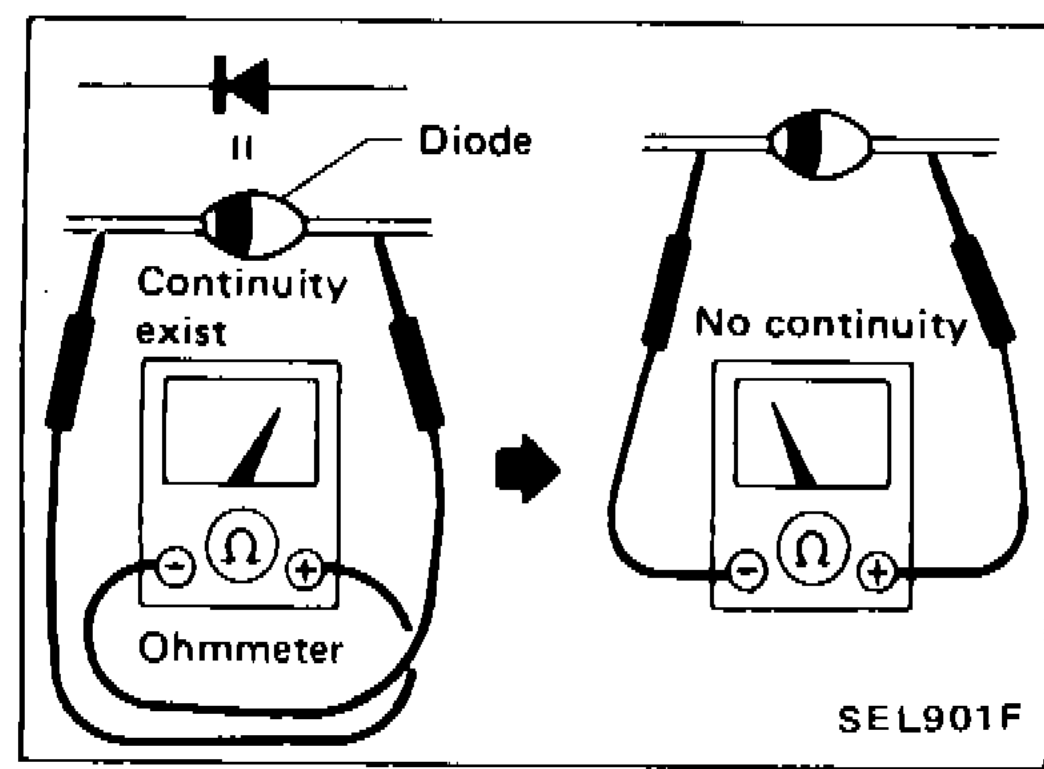

    Diode check using ohmmeter — showing continuity exists in one direction and no continuity in the other direction through a diode
    SEL901F
  2. 2
    Diode is functioning properly if test results are as shown in the figure at left.
  3. 3
    Diodes for warning lamps are built into the combination meter printed circuit.

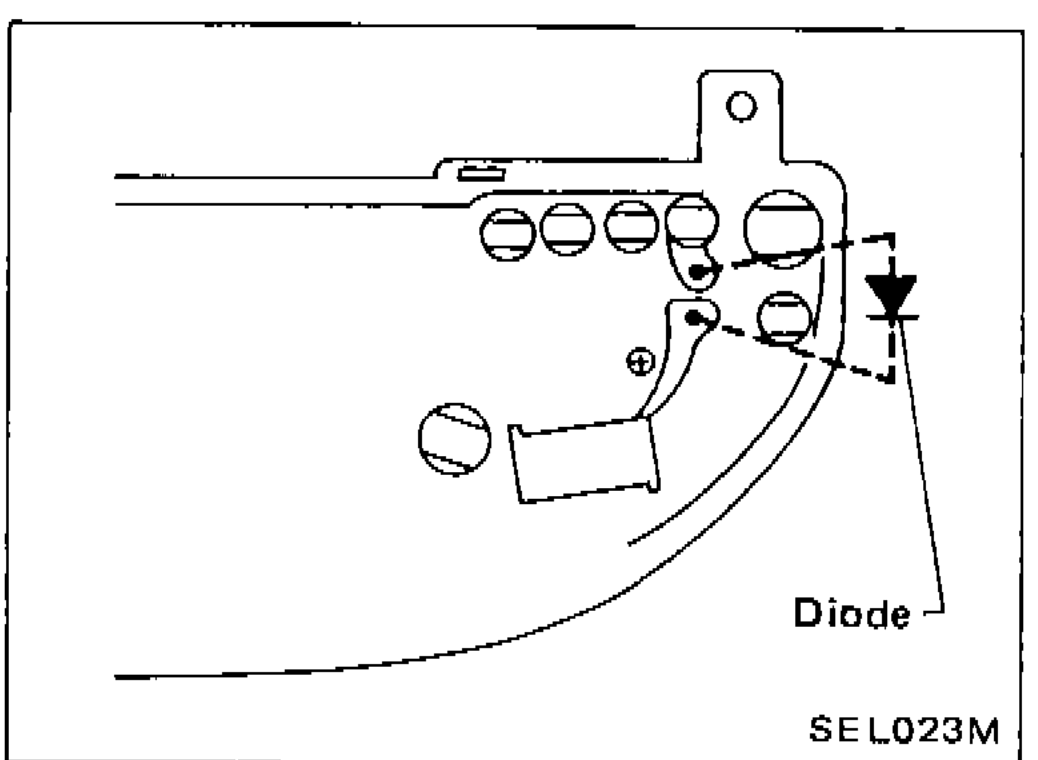

    Combination meter printed circuit board with diode location indicated
    SEL023M

Warning Chime Check
