SUPER MULTIPLE JUNCTION (S.M.J.)
EL-107prose procedureREMOVAL
- 1Remove fuse block retaining screws to gain access to S.M.J.
- 2Slide fuse block to the side, and remove S.M.J. retaining bolts to detach S.M.J.
INSTALLATION

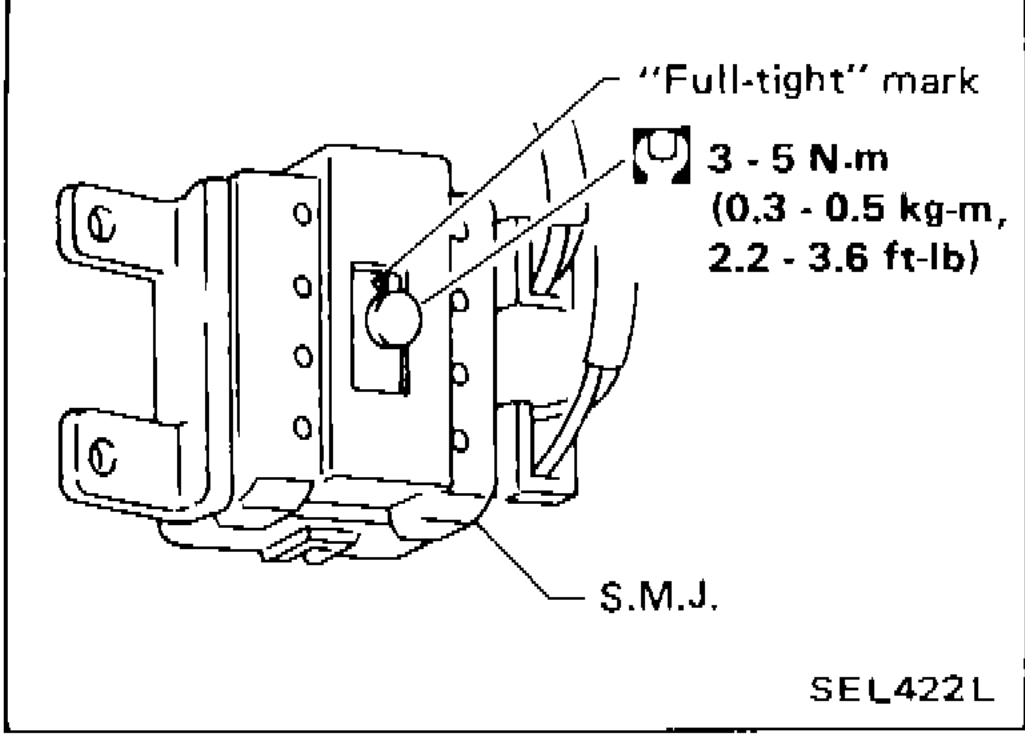

- 1To install S.M.J., tighten bolts until orange "full-tight" mark appears and then retighten to specified torque as required.
SEL422L
| Specification | Value |
|---|---|
| S.M.J. retaining bolt | 3 - 5N·m |
S.M.J. retaining bolt
3 - 5N·m
CAUTION
Do not overtighten bolts, otherwise, they may be damaged.
