COMBINATION SWITCH
EL-33prose procedureReplacement
- 1Each switch can be replaced without removing combination switch base.
SEL697L - 2To remove combination switch base, remove base attaching screw and turn after pushing on it.
SEL699L

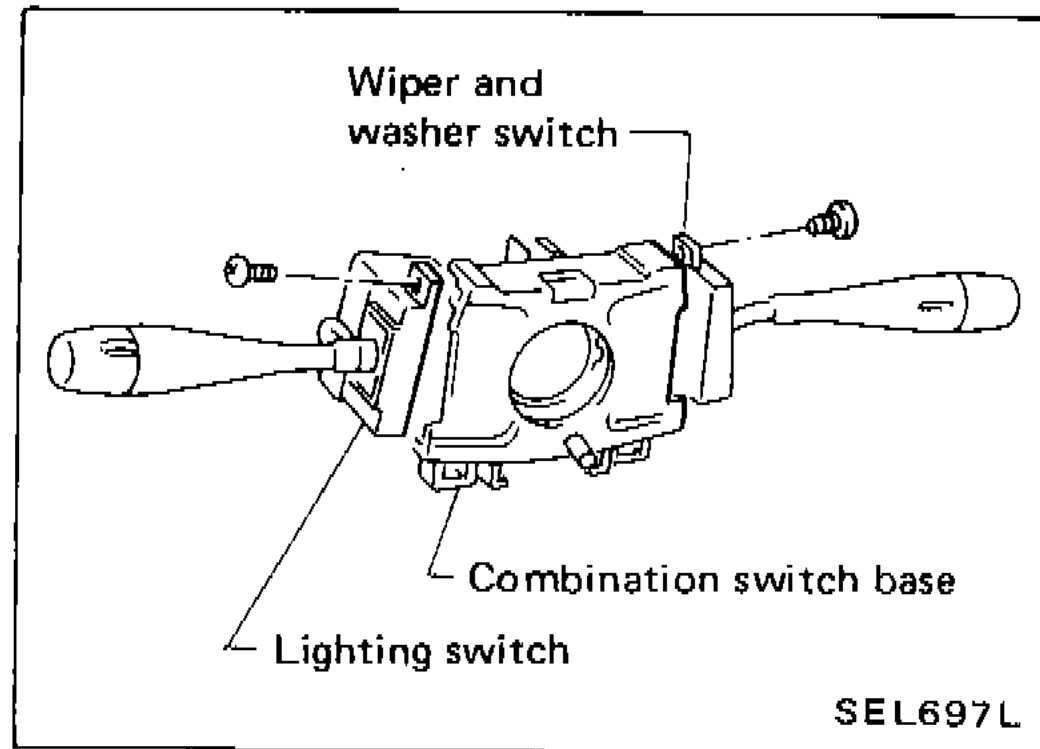

Component LocationFig. fig1
Combination switch assembly components
1Wiper and washer switch(top-left of assembly)
2Combination switch base(center of assembly)
3Lighting switch(bottom-left of assembly)

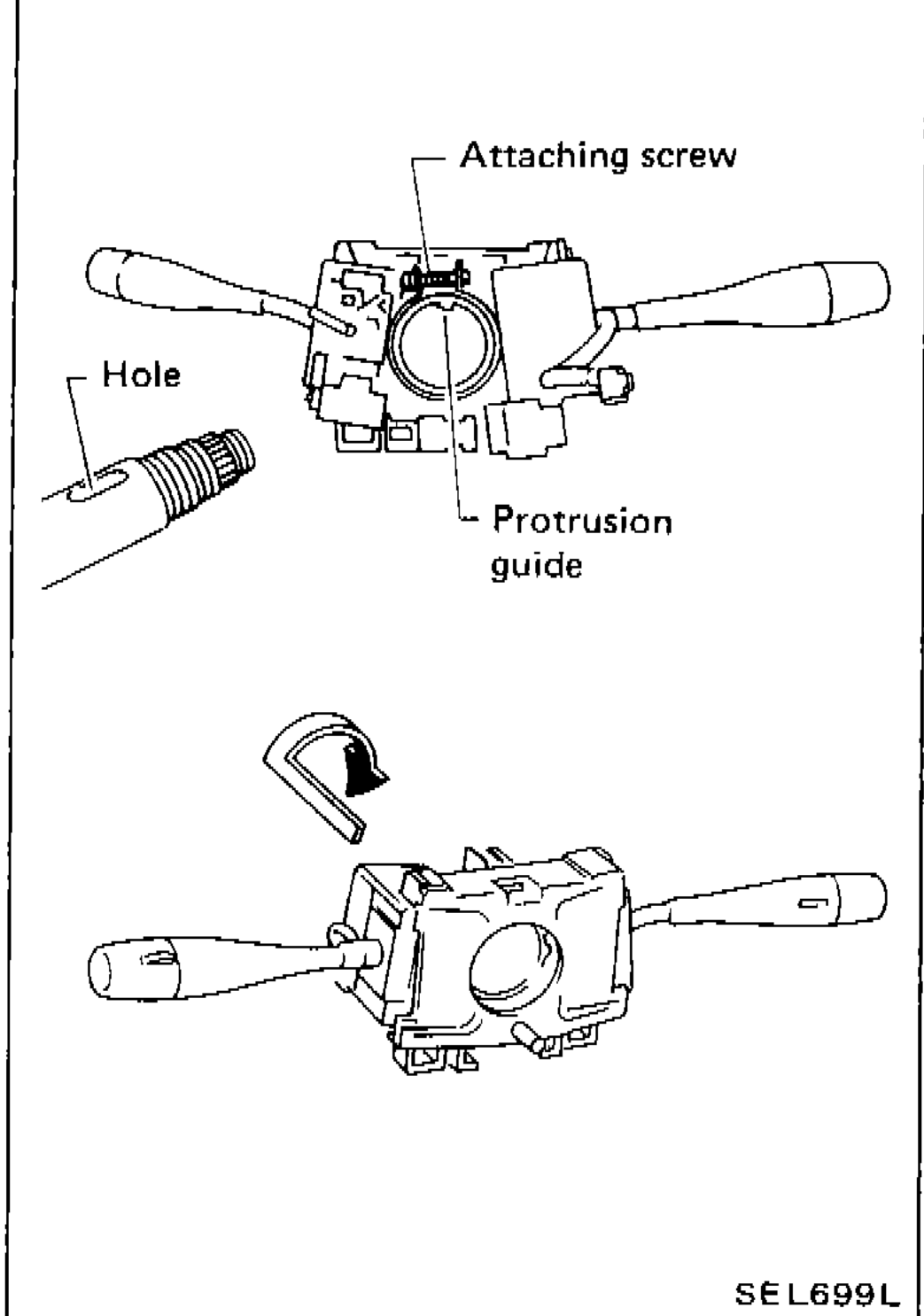

Component LocationFig. fig2
Combination switch base removal components
1Attaching screw(top-center of base)
2Hole(left side)
3Protrusion guide(center-bottom of base)
