STARTING SYSTEM — Starter — Brush Check (Cont'd), Pole Piece Check, Armature Check

EL-22prose procedure

Figures reference two starter models: M1T71481 and S114-523

Continued from EL-21

Brush Check (Cont'd)

BRUSH HOLDER

  1. 1
    Perform insulation test between brush holder (positive side) and its base (negative side).
    Continuity exists. ... Replace.

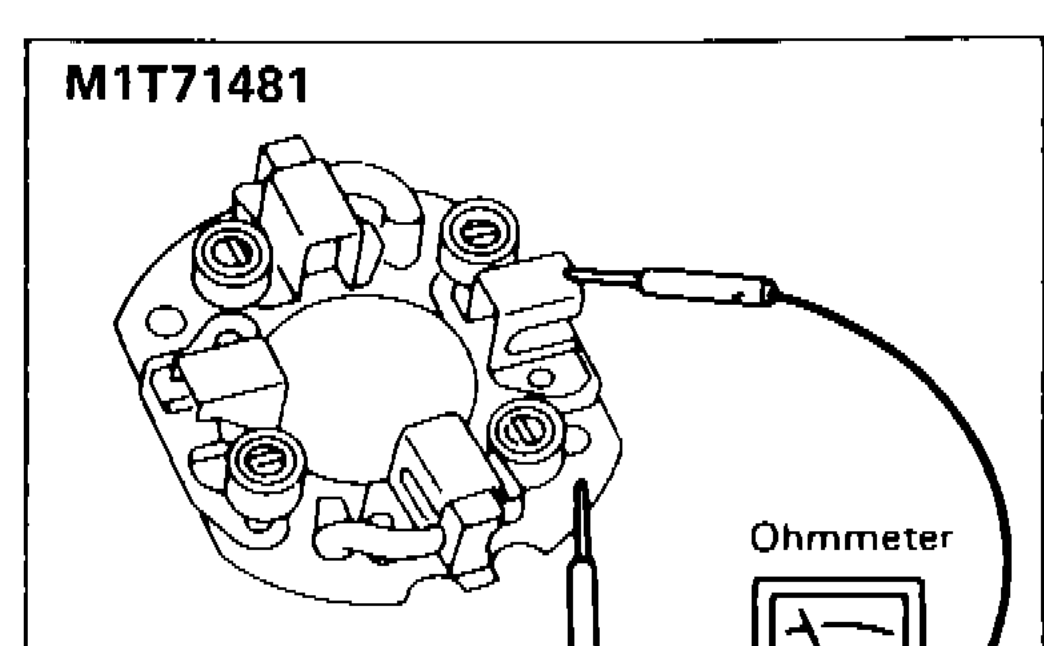

    Brush holder insulation test using ohmmeter for starter M1T71481 — probes on positive brush holder and base
    SEL568B
  2. 2
    Check brush to see if it moves smoothly.
    If brush holder is bent, replace it; if sliding surface is dirty, clean.

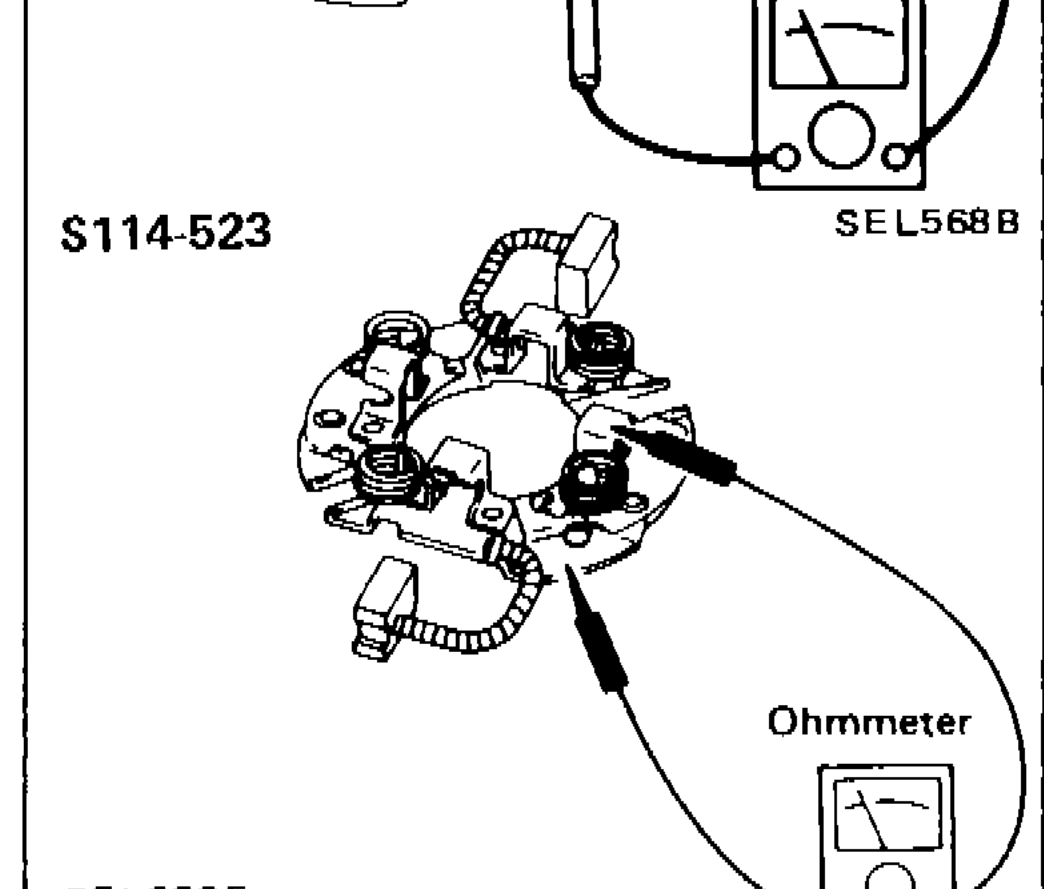

    Brush holder insulation test using ohmmeter for starter S114-523 — probes on positive brush holder and base
    SEL558E

Pole Piece Check

Pole piece is secured to yoke by bonding agent. Check pole piece to see that it is secured to yoke and for any cracks. Replace malfunctioning parts as an assembly. Holder may move slightly as it is only inserted and not bonded.

Armature Check

  1. 1
    Continuity test (between two segments side by side).
    No continuity ... Replace.

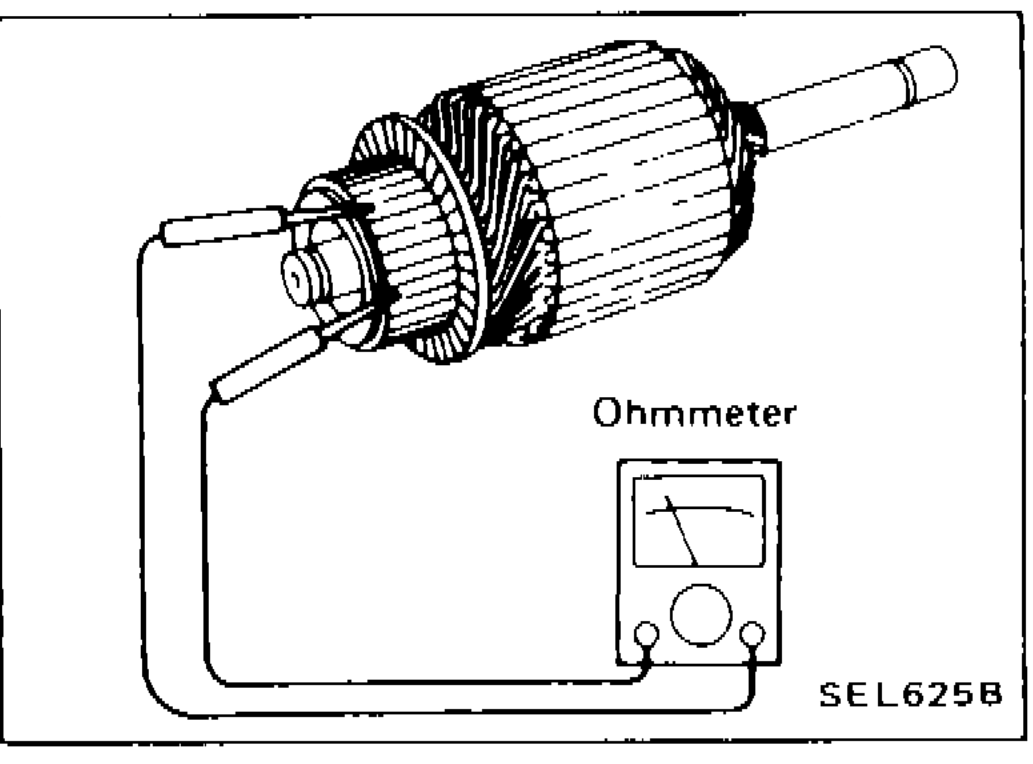

    Armature continuity test using ohmmeter between two adjacent commutator segments
    SEL625B
  2. 2
    Insulation test (between each commutator bar and shaft).
    Continuity exists. ... Replace.

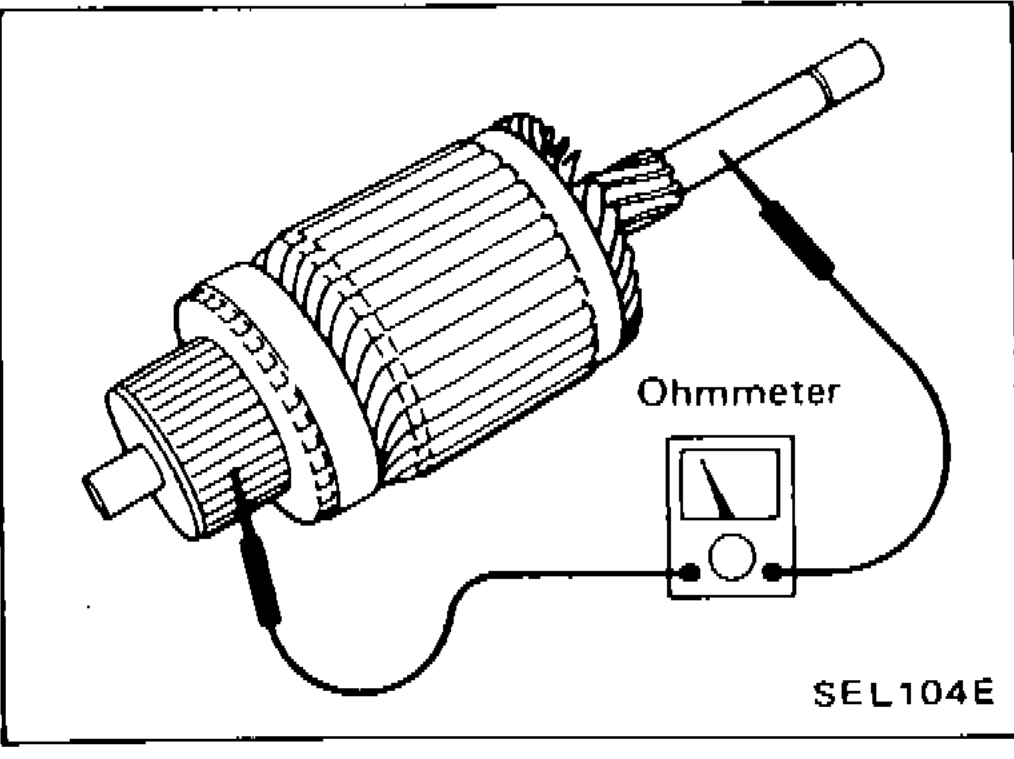

    Armature insulation test using ohmmeter between commutator bar and shaft
    SEL104E
Component LocationFig. fig3

Pole piece and holder in starter yoke assembly

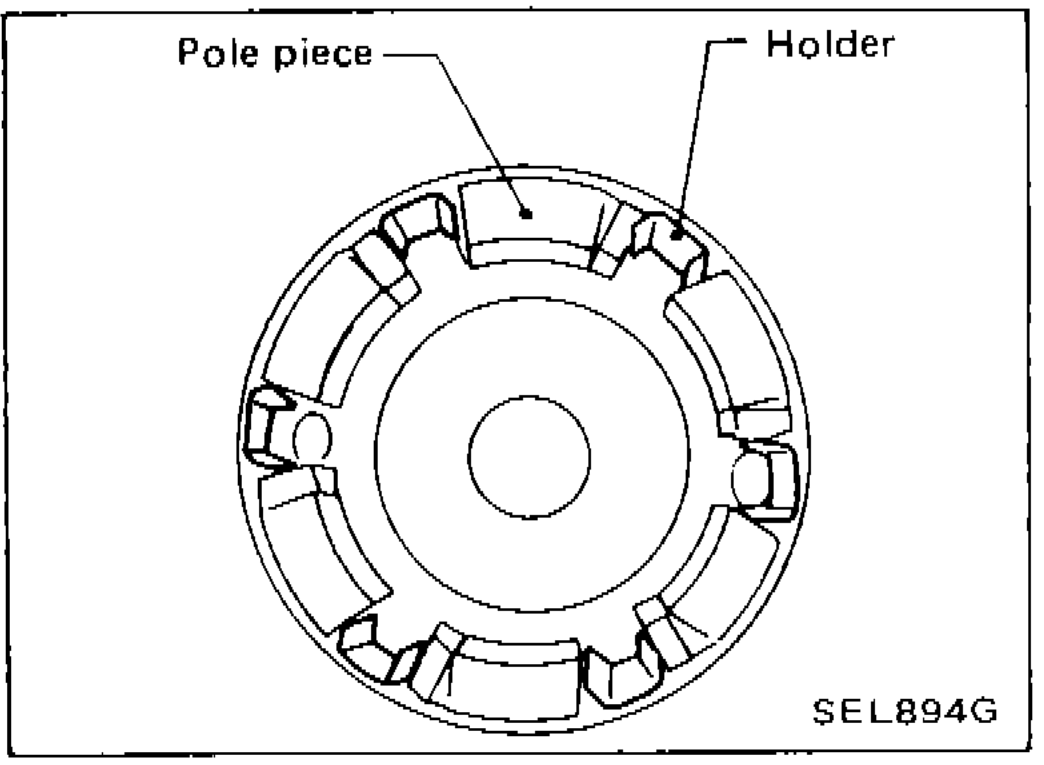

Pole piece and holder diagram showing pole piece secured to yoke with holder inserted
SEL894G
1Pole piece(left side of yoke diagram)
2Holder(right side of yoke diagram)
