HARNESS LAYOUT — Back Door Harness

EL-106wiring diagram

Back door harness applies to S13 hatchback body configuration with rear wiper. Connector D551/D506 pair is White; D552/D507 pair is Brown.

Back Door Harness

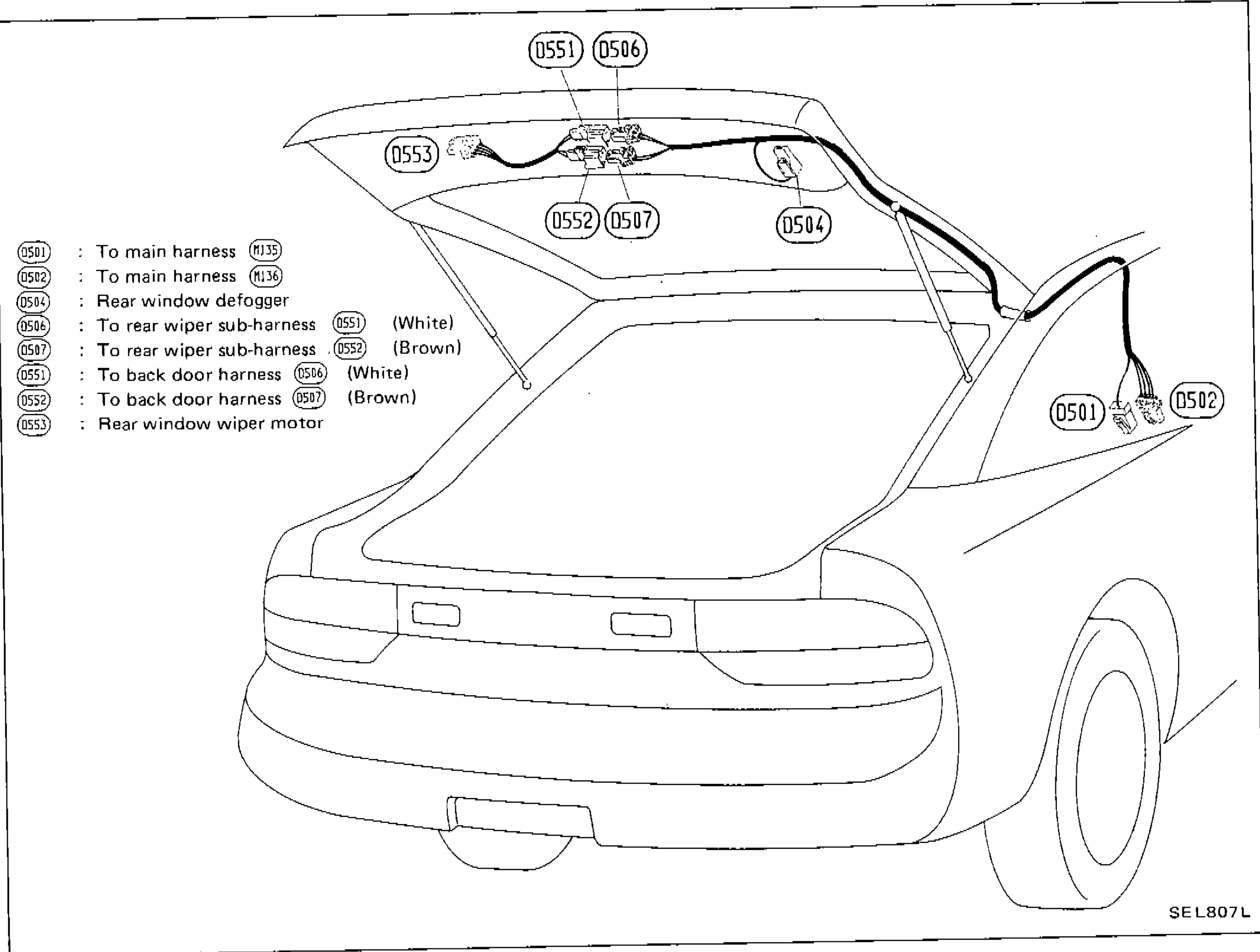

Component LocationFig. fig1

Back door harness connector and component identification for 1989 Nissan 200SX (S13). Connector codes with their functions are listed below.

SEL807L

1D501(To main harness (M135))

2D502(To main harness (M136))

3D504(Rear window defogger)

4D506(To rear wiper sub-harness (D551) (White))

5D507(To rear wiper sub-harness (D552) (Brown))

6D551(To back door harness (D506) (White))

7D552(To back door harness (D507) (Brown))

8D553(Rear window wiper motor)

Back Door Harness Connector Legend
