Meter and Gauges - Combination Meter
EL-57wiring diagram(E) indicates For Europe only. MPH version of combination meter shown in inset (fig1). Km/h version shown in main face diagram (fig2). *BRAKE or (CD)* notation on km/h meter variant.
Combination Meter

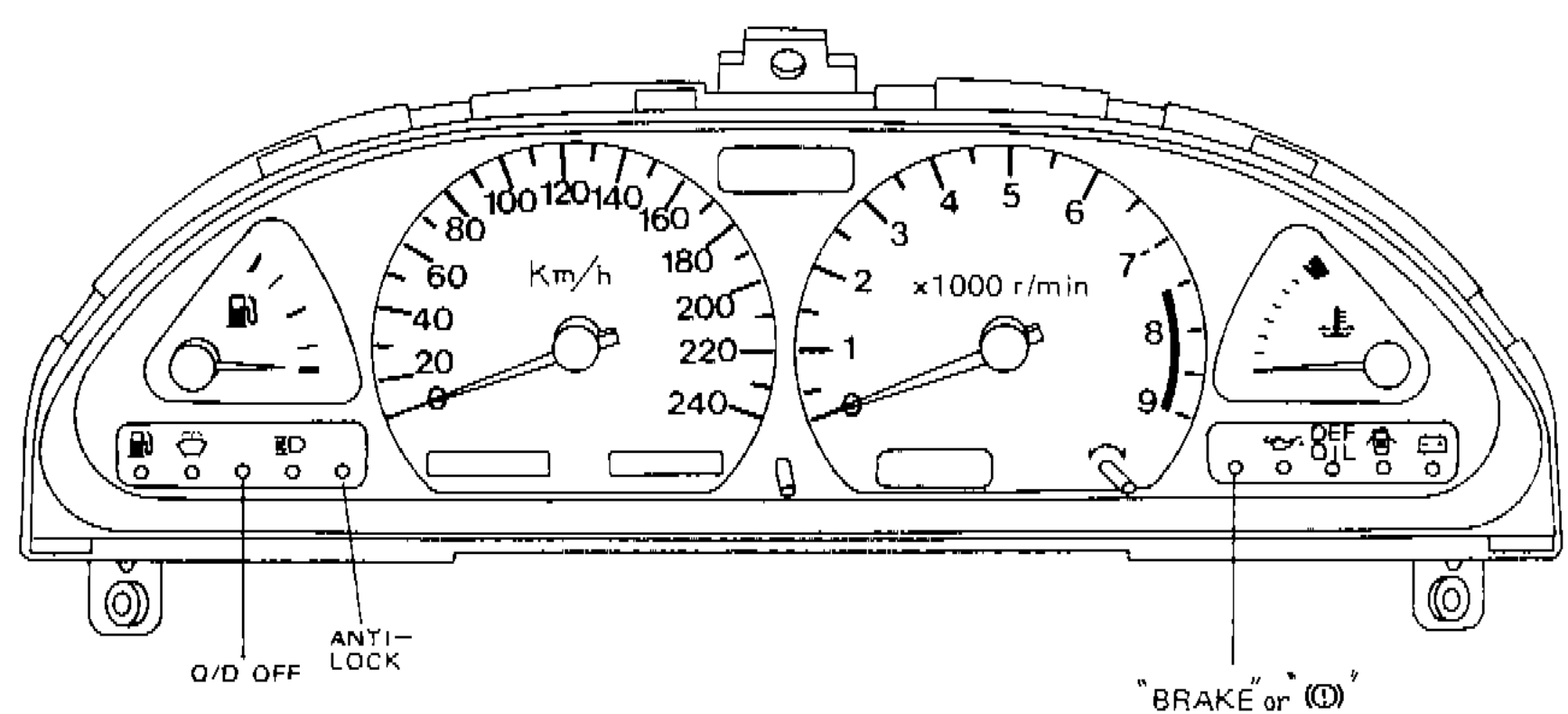

Component LocationFig. fig2
Combination meter face variants: km/h speedometer reading 20-240 km/h, tachometer x1000 r/min 1-9, with indicators O/D OFF, ANTI-LOCK, and *BRAKE or (CD)*
1O/D OFF(bottom-left of meter face)
2ANTI-LOCK(bottom-center of meter face)
3*BRAKE or (CD)*(bottom-right of meter face)

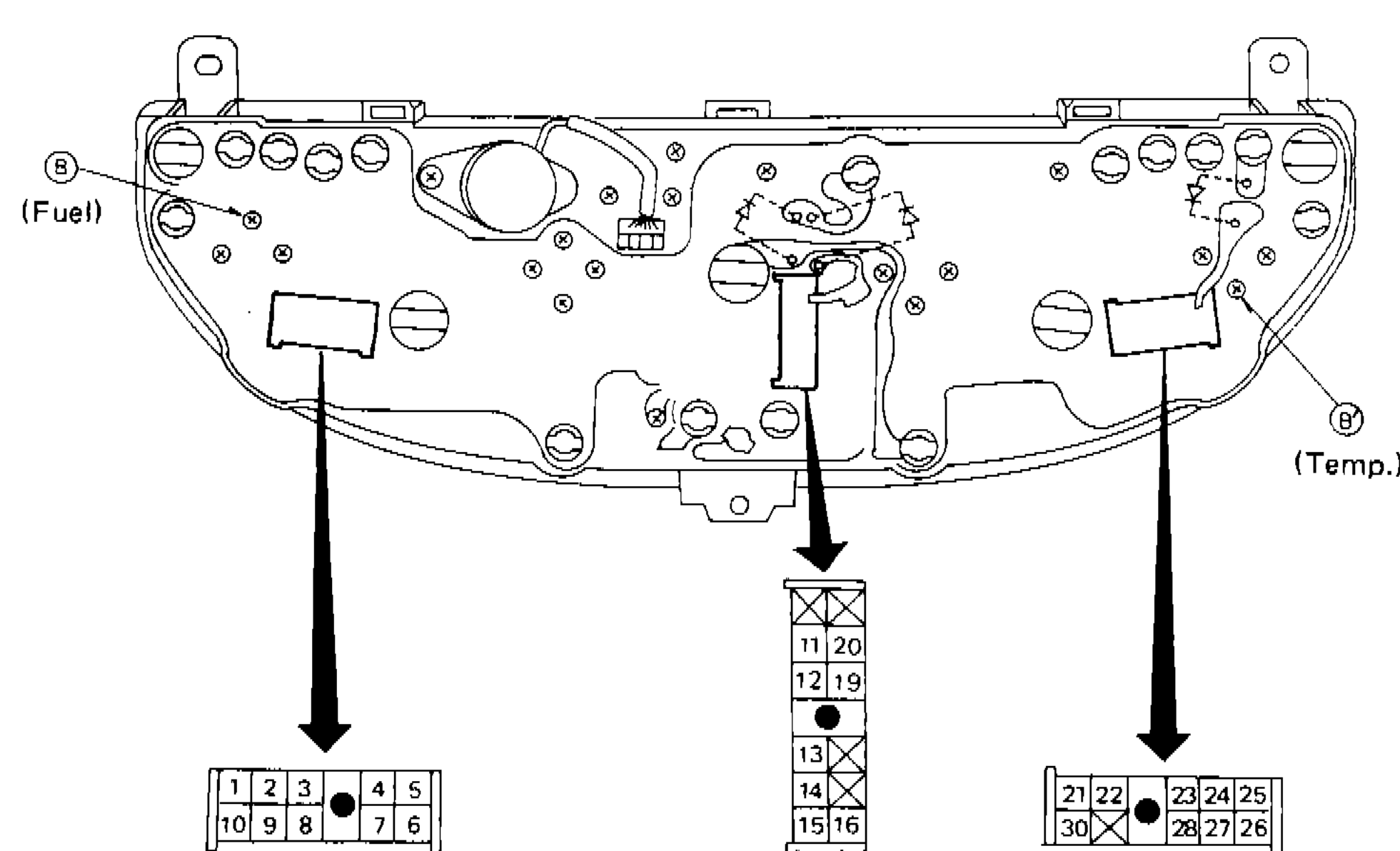

Component LocationFig. fig3
Rear of combination meter showing three connectors and two variable resistors labeled (Fuel) and (Temp.)
1(Fuel)(left-center rear of meter)
2(Temp.)(right-center rear of meter)
3Connector pins 1-10(left connector)
4Connector pins 11-20(center connector)
5Connector pins 21-30(right connector)
Combination Meter Wiring Schematic
Components (18)
ILLUMINATION (LIQUID CRYSTAL)ILLUMINATIONHIGH BEAMTURN L.H.TURN R.H.CLOCKELECTRIC SPEEDOMETERTACHOMETERFUEL GAUGETEMP. GAUGEDOORBRAKEOILDIFFERENTIAL OIL (E)ANTI-LOCKWASHERFUELCHARGE
NOTE
(E) : For Europe
Connector Pin Assignments - Left Connector (Pins 1-10)
1
CircuitWASHER / FUEL indicator
2
CircuitCHARGE (ground)
3
CircuitHIGH BEAM
4
CircuitILLUMINATION (ground) / HIGH BEAM (ground)
5
CircuitANTI-LOCK / WASHER
6
CircuitELECTRIC SPEEDOMETER
7
CircuitELECTRIC SPEEDOMETER (ground)
8
CircuitILLUMINATION (LIQUID CRYSTAL) ground
9
CircuitFUEL / CHARGE
10
CircuitFUEL GAUGE (ground)
Connector Pin Assignments - Center Connector (Pins 11-20)
11
CircuitILLUMINATION
12
CircuitTACHOMETER
13
CircuitCLOCK (ground)
14
CircuitTURN L.H.
15
CircuitTURN L.H. (ground)
16
CircuitTURN R.H.
19
CircuitTACHOMETER (ground)
20
CircuitILLUMINATION (LIQUID CRYSTAL)
Connector Pin Assignments - Right Connector (Pins 21-30)
21
CircuitBRAKE / OIL indicator
22
CircuitDIFFERENTIAL OIL (E - For Europe)
23
CircuitANTI-LOCK / DIFFERENTIAL OIL (E)
24
CircuitFUEL GAUGE
25
CircuitBRAKE / TEMP. GAUGE (ground)
26
CircuitTEMP. GAUGE / DOOR indicator
27
CircuitCHARGE (ground)
28
CircuitTURN R.H. (ground)
30
CircuitCLOCK
