HARNESS LAYOUT — Main Harness (Cont'd) — R.H.D. dashboard run
EL-88component photoUnverifiedMirror of EL-84. Connector ID legend is shared with EL-85.
Main Harness (Cont'd)
R.H. DRIVE MODEL — dashboard
NOTE
Mirror-image of the L.H.D. main-harness dashboard map shown on EL-84. Connectors retain the same M-numbers; only the routing is mirrored across the cabin. Two body-ground insets in the upper-left identify the physical side-panel grounding location.

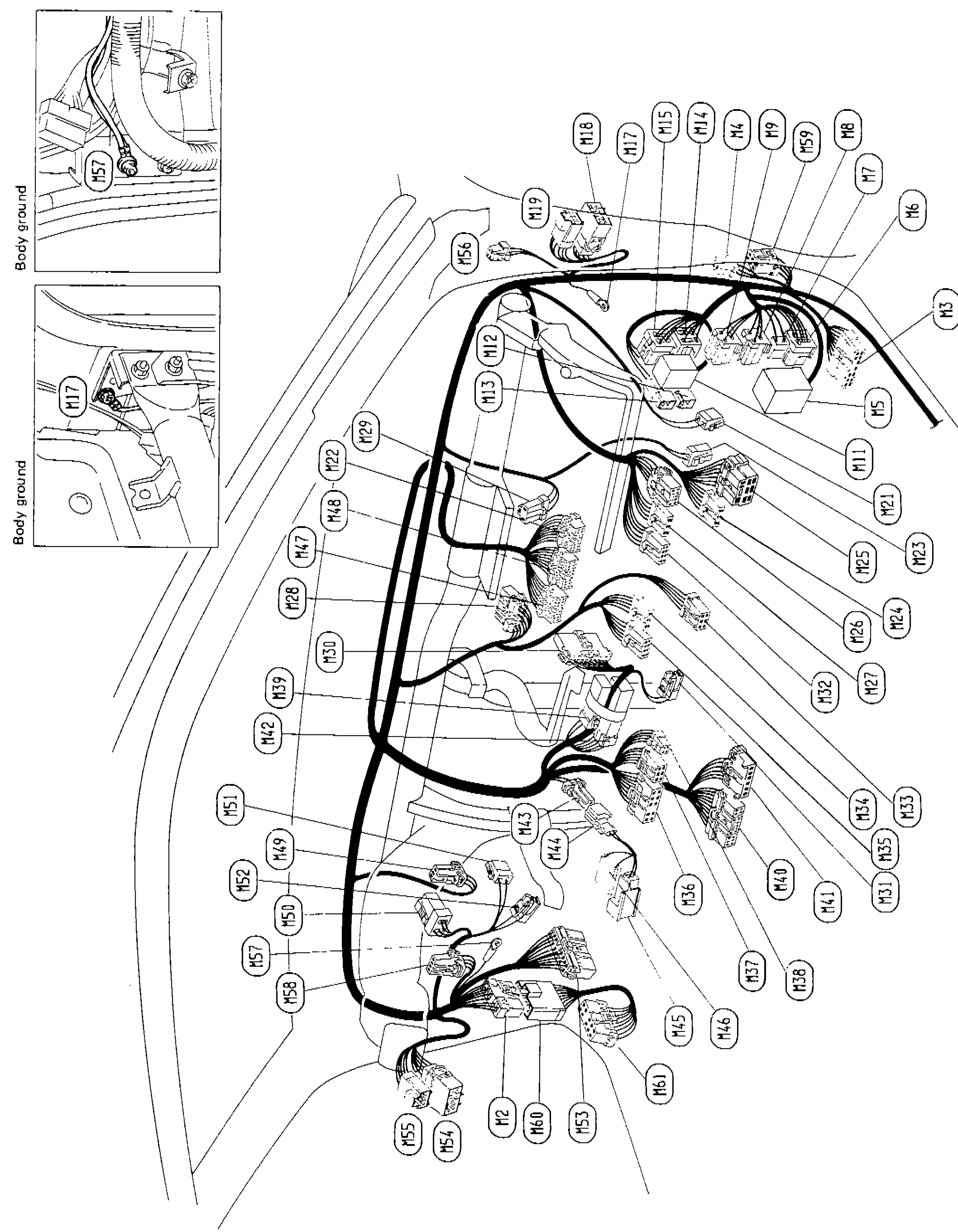

Component LocationFig. fig1
R.H.D. main-harness connector locations.
1Body ground (side panel)(Two insets, top-left of figure)
2Steering-column connector cluster(Right side of dash (R.H.D.))
3Fuse block / S.M.J.(Passenger-side dash (relative to R.H.D.))
4A/C connectors (M30-M50 area)(Centre dash)
5Combination meter connectors(Behind cluster (right side))
