HARNESS LAYOUT — E.F.I. Harness (Cont'd) — R.H.D.
EL-104component photoUnverifiedMirror of EL-102.
E.F.I. Harness (Cont'd)
R.H. DRIVE MODEL
NOTE
Mirror of EL-102 for R.H.D. cars. Connector inventory is identical; only routing differs. Use together with the connector legend on EL-105.

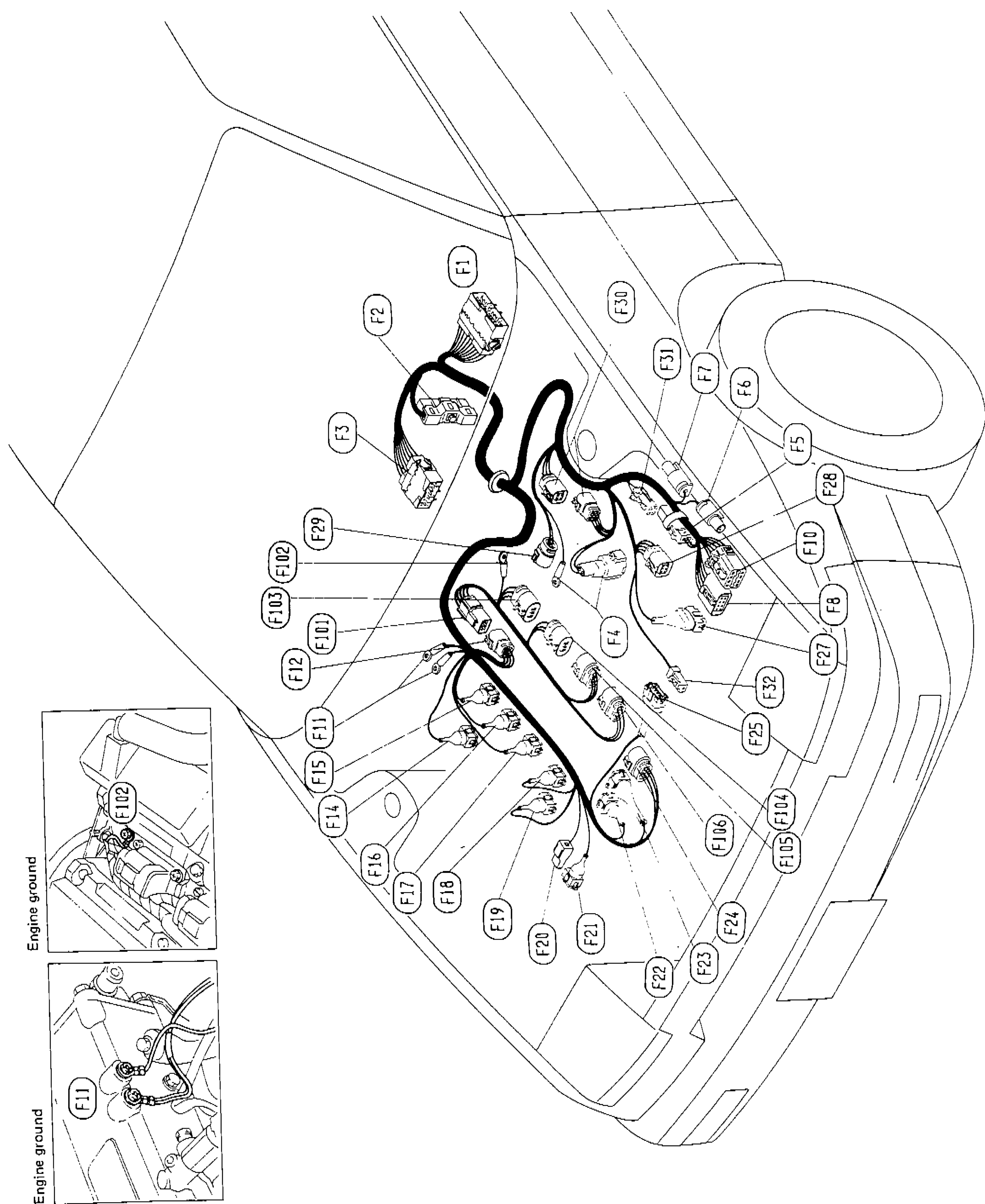

Component LocationFig. fig1
R.H.D. E.F.I. harness connector locations.
1Engine ground (×2 insets)(Lower-left of figure)
2Main-harness pass-through (F1 / F2 / F3)(Bulkhead (mirrored))
3Injector cluster (F15–F18)(Top of cam cover)
4Ignition coil sub-harness (F101–F106)(Coil pack area)
5Throttle-body / TPS / IAC cluster(Throttle body)
