EXTERIOR LAMP

EL-54spec table

1
Before checking, ensure that bulbs meet specifications.
2

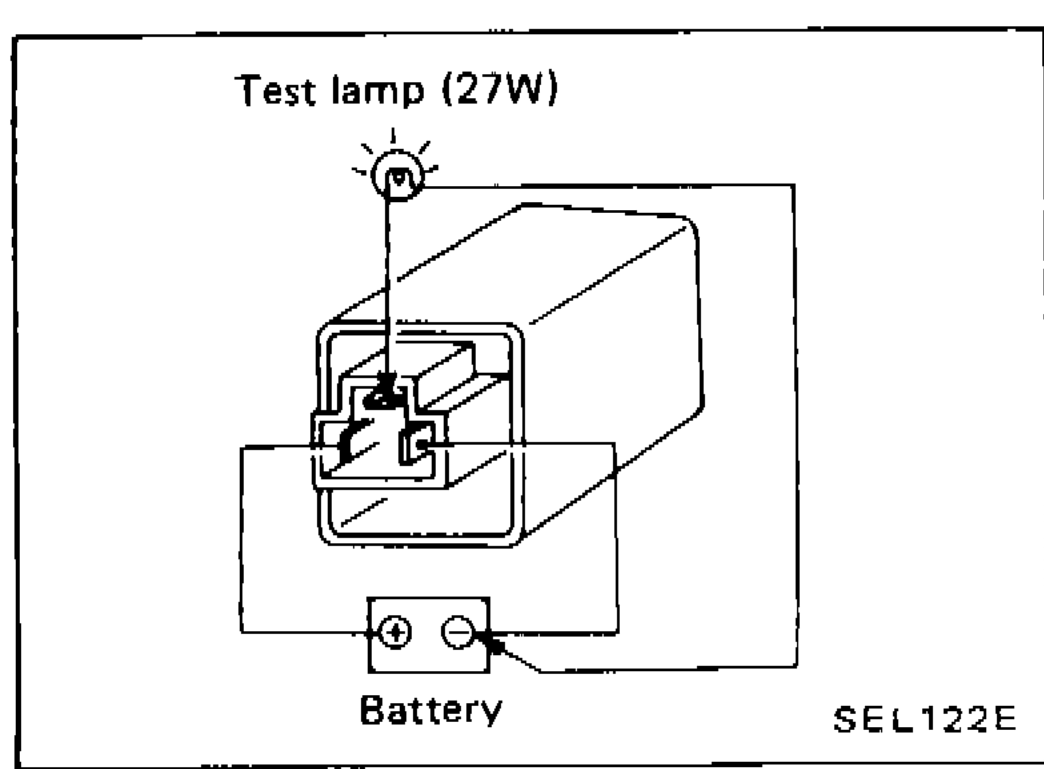

Connect a battery and test lamp to the combination flasher unit, as shown. Combination flasher unit is properly functioning if it blinks when power is supplied to the circuit.
SEL122E

Bulb Specifications

Item	Wattage (W)
Headlamp	60/55
Front combination lamp — Turn signal/clearance lamp	21/5
Daytime running lamp	27
Side turn signal lamp	5
Rear combination lamp — Stop/Tail	21/5
Rear combination lamp — Turn signal	21
Rear combination lamp — Rear fog	21
Back-up lamp	21
License plate lamp	5
Interior lamp	10
Spot lamp	8
Luggage compartment lamp	5

Headlamp

Wattage (W)60/55

Front combination lamp — Turn signal/clearance lamp

Wattage (W)21/5

Daytime running lamp

Wattage (W)27

Side turn signal lamp

Wattage (W)5

Rear combination lamp — Stop/Tail

Wattage (W)21/5

Rear combination lamp — Turn signal

Wattage (W)21

Rear combination lamp — Rear fog

Wattage (W)21

Back-up lamp

Wattage (W)21

License plate lamp

Wattage (W)5

Interior lamp

Wattage (W)10

Spot lamp

Wattage (W)8

Luggage compartment lamp

Wattage (W)5
