Nissan 200SX S13 silhouetteS13

AUDIO AND POWER ANTENNA

EL-79prose procedure

Location of Antenna

Component LocationFig. fig1

Overview of power antenna location and cable routing on the S13 body

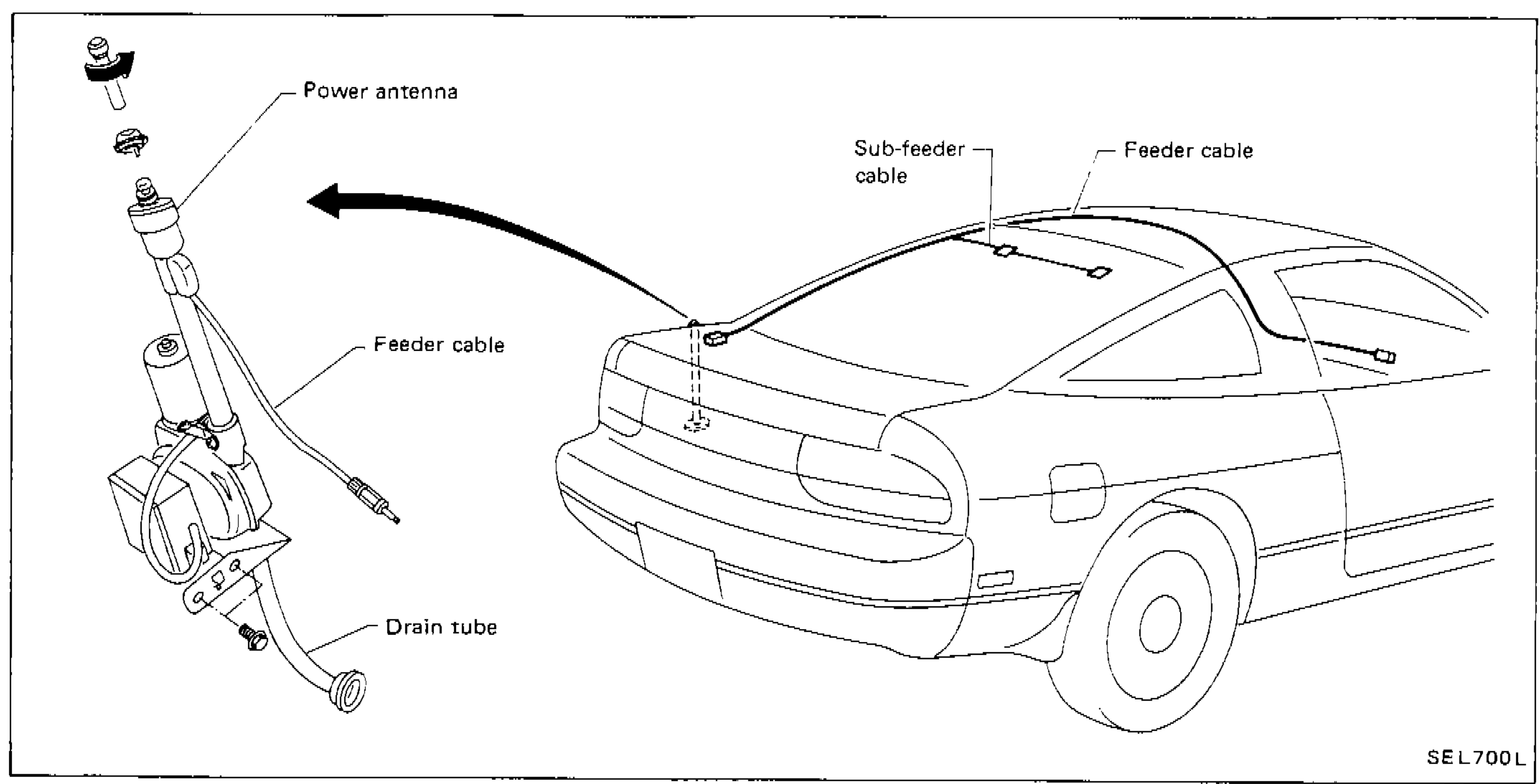

Location of Antenna — exploded/overview diagram showing power antenna assembly components (power antenna, feeder cable, drain tube) and vehicle overview showing sub-feeder cable and feeder cable routing on S13 body
SEL700L
1Power antenna(upper left of exploded assembly)
2Feeder cable(lower left of exploded assembly)
3Drain tube(bottom of exploded assembly)
4Sub-feeder cable(upper center of vehicle diagram)
5Feeder cable(upper right of vehicle diagram)

Antenna Rod Replacement

REMOVAL

  1. 1
    Remove antenna nut and antenna base.

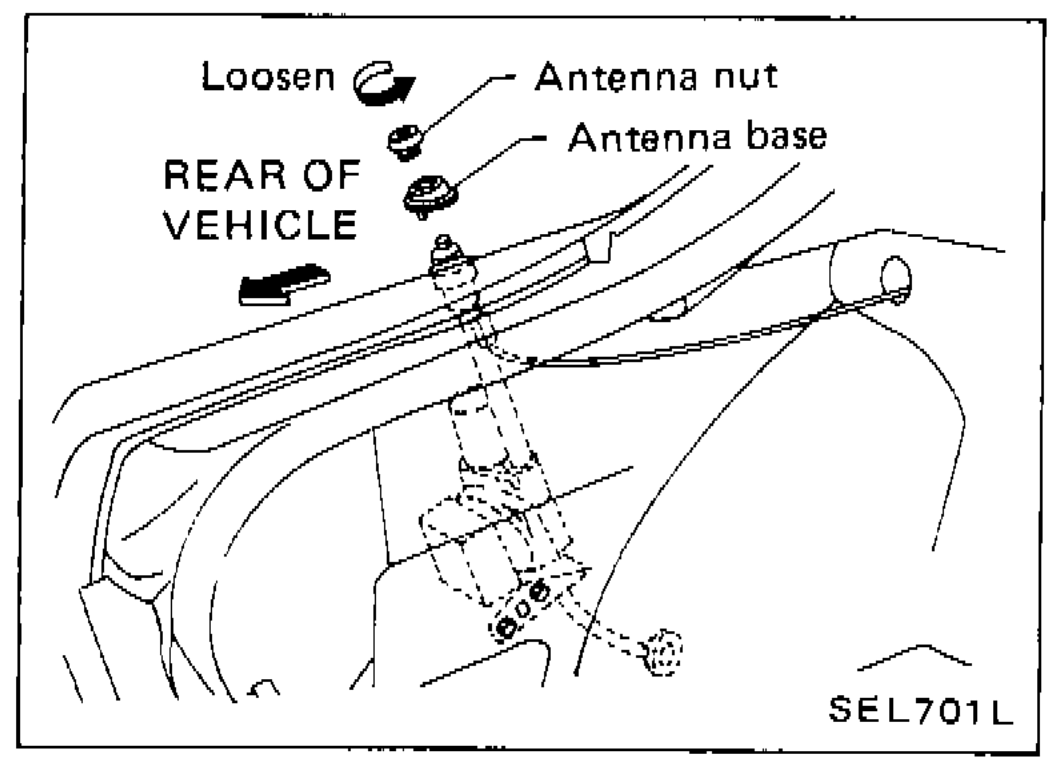

    Rear of vehicle diagram showing loosening of antenna nut and antenna base location during removal step 1
    SEL701L
  2. 2
    Withdraw antenna rod while raising it by operating antenna motor.

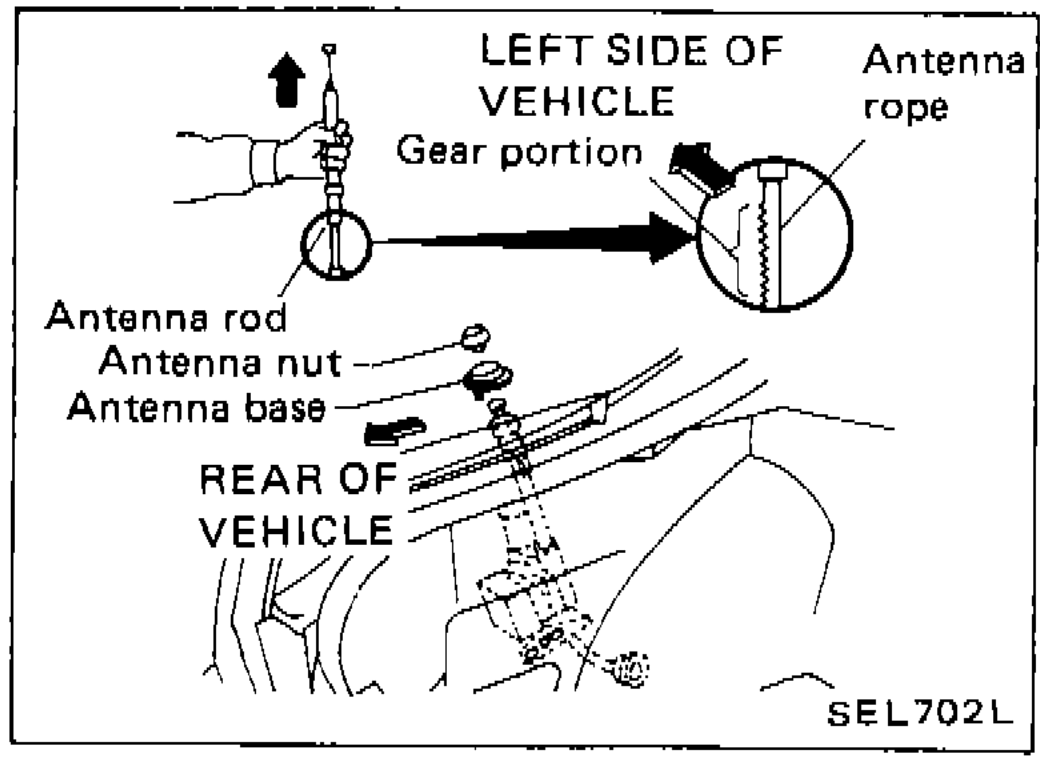

    Left side of vehicle diagram showing antenna rod withdrawal — gear portion, antenna rope, antenna rod, antenna nut, antenna base during removal step 2
    SEL702L

INSTALLATION

  1. 1
    Lower antenna rod by operating antenna motor.
  2. 2
    Insert gear section of antenna rope into place with it facing toward antenna motor.

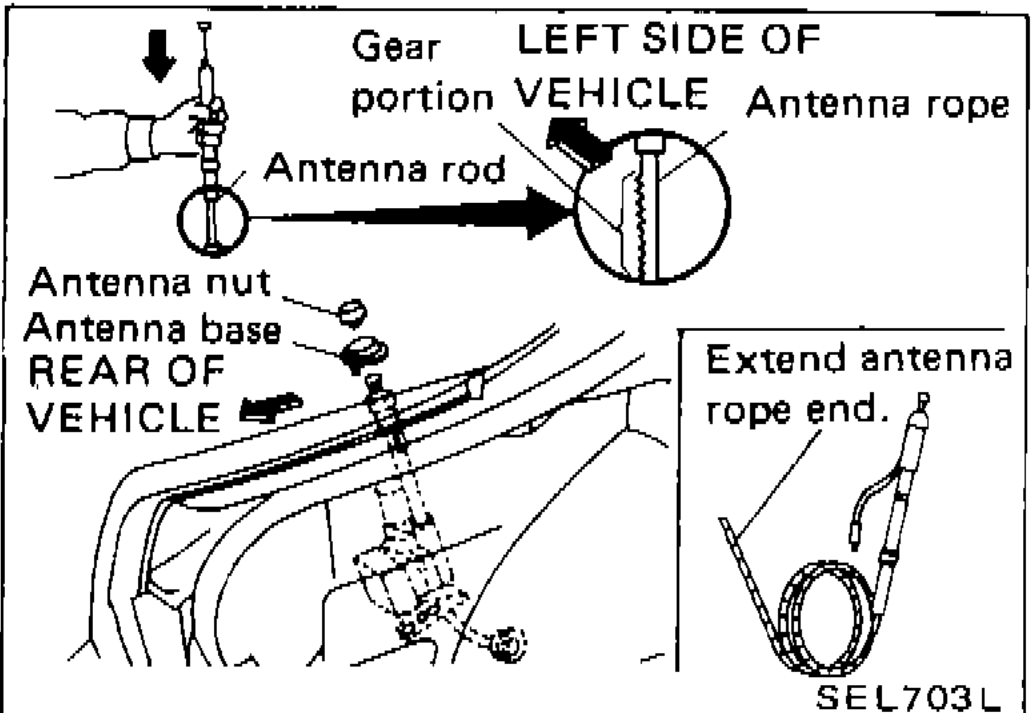

    Left side of vehicle diagram showing installation — gear portion, antenna rope, antenna rod, antenna nut, antenna base, extend antenna rope end
    SEL703L
  3. 3
    As soon as antenna rope is wound on antenna motor, stop antenna motor. Insert antenna rod lower end into antenna motor pipe.
  4. 4
    Retract antenna rod completely by operating antenna motor.
  5. 5
    Install antenna nut and base.
