HEADLAMP — Aiming Adjustment
EL-46prose procedureAiming pattern shown is for right-hand traffic (driving on right side of road). For left-hand traffic, aiming pattern is reversed.
Aiming Adjustment
When performing headlamp aiming adjustment, use an aiming machine, aiming wall screen or headlamp tester. For operating instructions of any aimer, it should be in good repair, calibrated and used according to respective operation manuals supplied with the unit.
If any aimer is not available, aiming adjustment can be done as follows:
IMPORTANT
For details, refer to the regulations in your own country.
CAUTION
a. Keep all tires inflated to correct pressures.
b. Place vehicle and tester on one and same flat surface.
c. See that there is no-load in vehicle (coolant, engine oil filled up to correct level and full fuel tank) other than the driver (or equivalent weight placed in driver's position).
LOW BEAM
LOW BEAM Aiming Adjustment
- 1Turn headlamp low beam on.

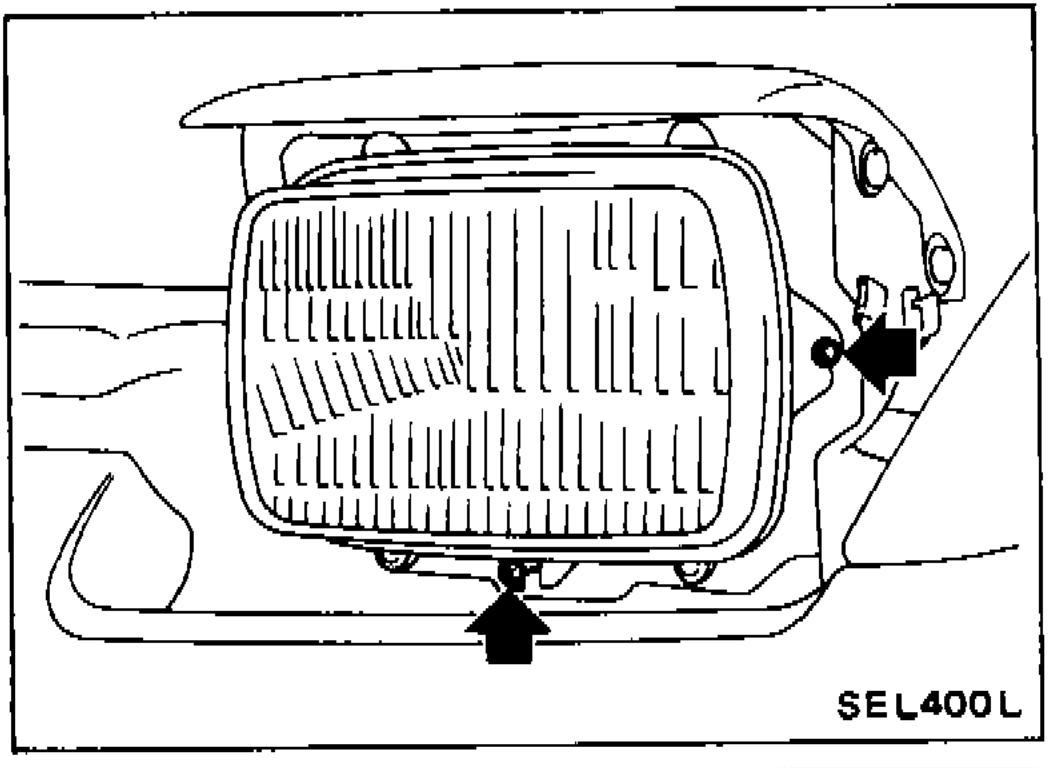

- 2Use adjusting screws to perform aiming adjustment.First tighten the adjusting screw all the way and then make adjustment by loosening the screw.
SEL400L - 3a. Adjust headlamps so that main axis of light is parallel to center line of body and is aligned with point P shown in illustration.

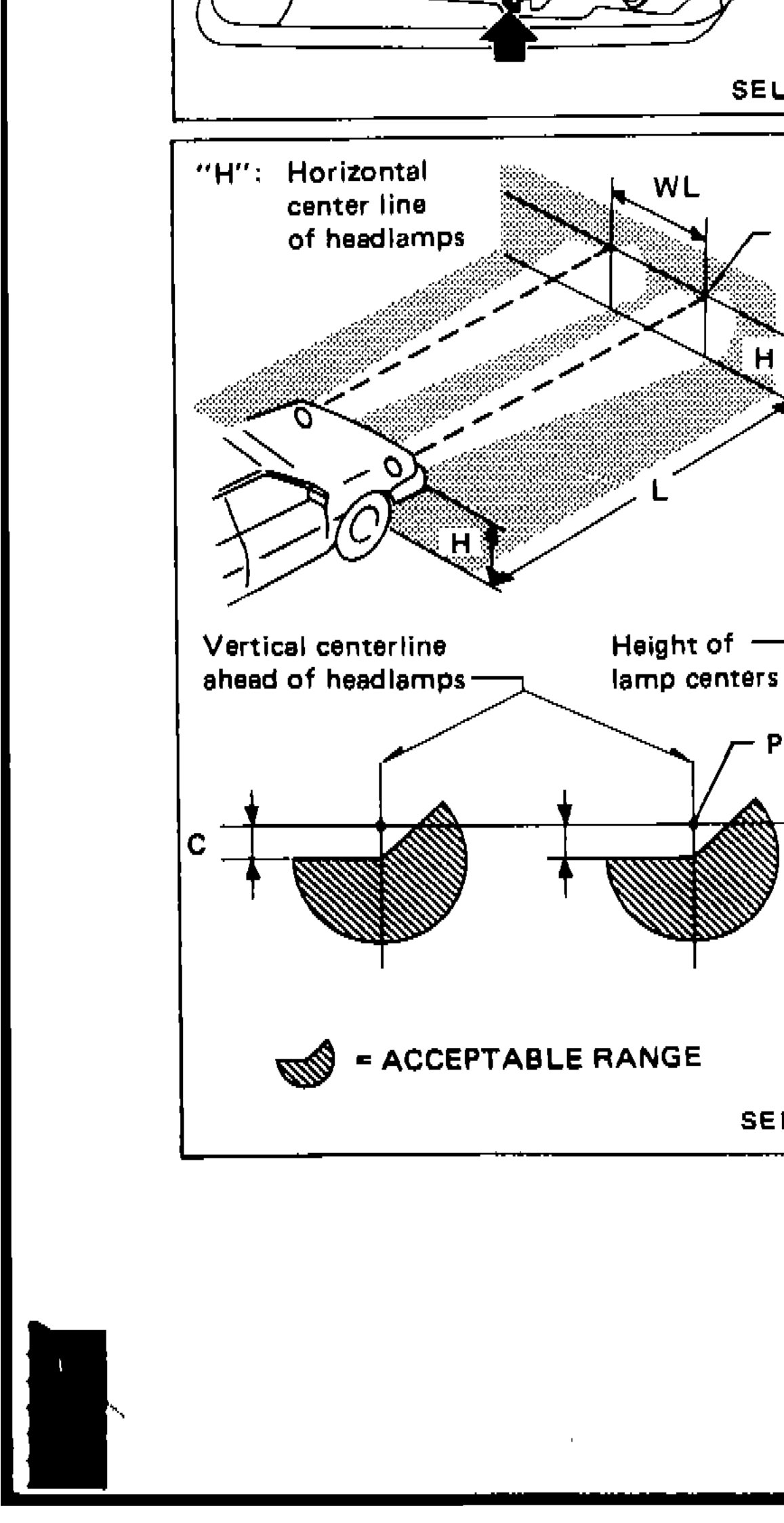

SEL2541 - 4b. Figure to the left shows headlamp aiming pattern for driving on right side of road; for driving on left side of road, aiming pattern is reversed.
- 5c. Dotted lines in illustration show center of headlamp.
| Specification | Value |
|---|---|
| "H" | Horizontal center line of headlamps |
| "WL" | Distance between each headlamp center |
| "L" | 5,000mm (196.85 in) |
| "C" | 50mm (1.97 in) |
"H"
Horizontal center line of headlamps
"WL"
Distance between each headlamp center
"L"
5,000mm (196.85 in)
"C"
50mm (1.97 in)
