LOCATION OF ELECTRICAL UNITS — Engine Compartment
EL-81component photoRelay-base colour codes match the standardised-relay table on EL-4.
Engine Compartment
Fuse and relay box A — contents (driver side)
Ignition coil relay
Colour codeGreen
E.C.C.S. relay
Colour codeGreen
Fuel pump relay
Colour codeGreen
Headlamp retract relay-4
Colour codeGray
Inhibitor relay
Colour codeBlue
Fusible link
Colour code—
Fuse block
Colour code—
Relay box B — contents (right rear of engine bay)
Differential oil cooler relay-1
Colour codeBlue
Rear fog lamp relay (without daytime light system)
Colour codeBlue
Rear fog lamp relay (with daytime light system)
Colour codeGray
Air conditioner relay (For Europe)
Colour codeBlue
Air conditioner relay (Except for Europe)
Colour codeBrown
Headlamp retract relay-1
Colour codeBlack
Headlamp retract relay-2
Colour codeBlack
Headlamp retract relay-3
Colour codeBlack
Horn relay
Colour code—

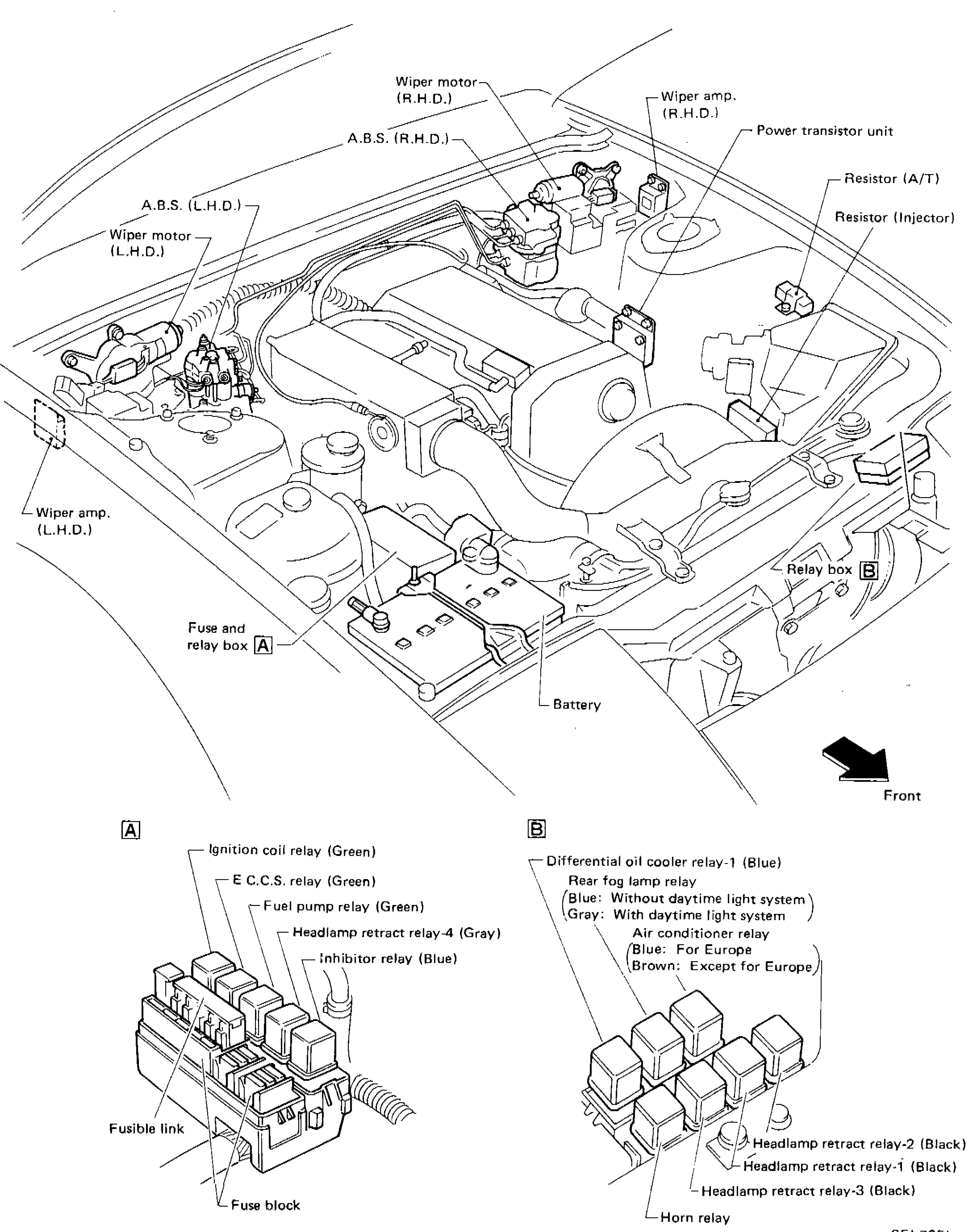

Component LocationFig. fig1
Engine-compartment electrical-unit locations.
SEL705L
1Battery(Front of engine bay, driver side)
2Fuse and relay box A(Driver-side strut tower area)
3Relay box B(Right rear of engine bay)
4Wiper motor / Wiper amp(On cowl (L.H.D. or R.H.D. side))
5A.B.S.(Cowl (L.H.D. or R.H.D. side))
6Power transistor unit(Right cowl)
7Resistor (A/T)(Right cowl)
8Resistor (Injector)(Right cowl)
