HARNESS LAYOUT — E.F.I. Harness
EL-102wiring diagramL.H. Drive Model only. Diagram shows EFI harness layout for left-hand drive variant of 1989 Nissan 200SX (S13, CA18DET).
E.F.I. Harness
L.H. DRIVE MODEL
Component LocationFig. fig1

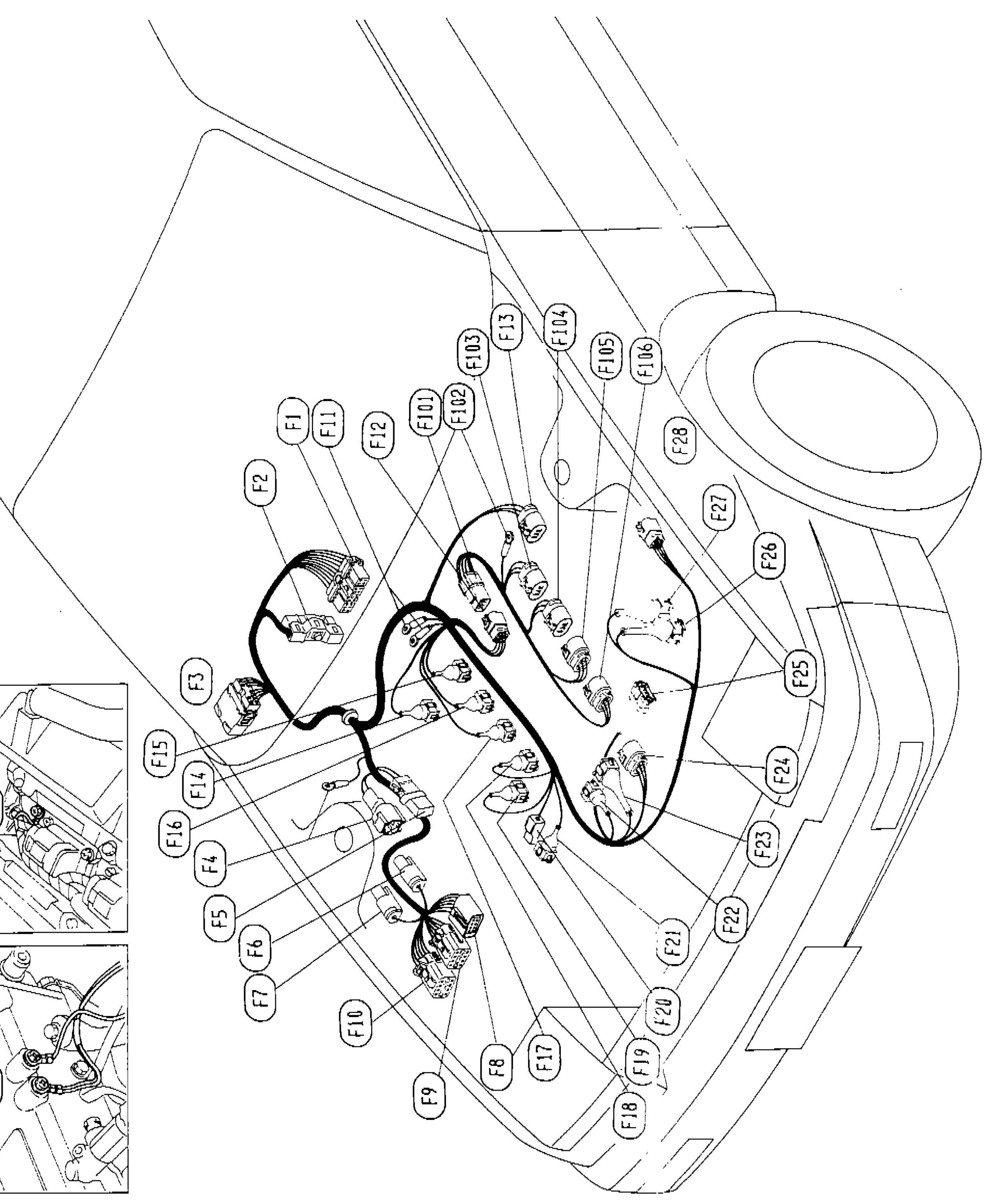

EFI harness connector locations for L.H. Drive Model engine bay. Connectors labeled F1 through F28 and F101 through F106.
1F1(upper-left area of engine bay)
2F11(upper-left area of engine bay)
3F2(upper-left, slightly right of F1)
4F3(left-center engine bay)
5F4(left-center engine bay)
6F5(lower-left engine bay)
7F6(lower-left engine bay)
8F7(lower-left engine bay)
9F8(center engine bay)
10F9(lower-center engine bay)
11F10(lower-center engine bay)
12F12(upper-center engine bay)
13F13(upper-center engine bay)
14F14(left-center engine bay)
15F15(left-center engine bay)
16F16(left-center engine bay)
17F17(lower-center engine bay)
18F18(lower-center engine bay)
19F19(lower-center engine bay)
20F20(lower-center engine bay)
21F21(center engine bay)
22F22(right-center engine bay)
23F23(right-center engine bay)
24F24(right-center engine bay)
25F25(right engine bay)
26F26(upper-right engine bay)
27F27(upper-right engine bay)
28F28(upper-right engine bay)
29F101(upper-center engine bay)
30F102(upper-center engine bay)
31F103(upper-center engine bay)
32F104(upper-center engine bay)
33F105(upper-center engine bay)
34F106(upper-center engine bay)
35F102 (Engine ground)(inset photo left side)
36F11 (Engine ground)(inset photo left side lower)
