HARNESS LAYOUT - Main Harness (Cont'd)
EL-86wiring diagramL.H. Drive Model only. Diagram shows main harness connector locations M100 through M139. Body ground points identified at M100, M114, M116, and M125 with detail insets.
Main Harness (Cont'd)

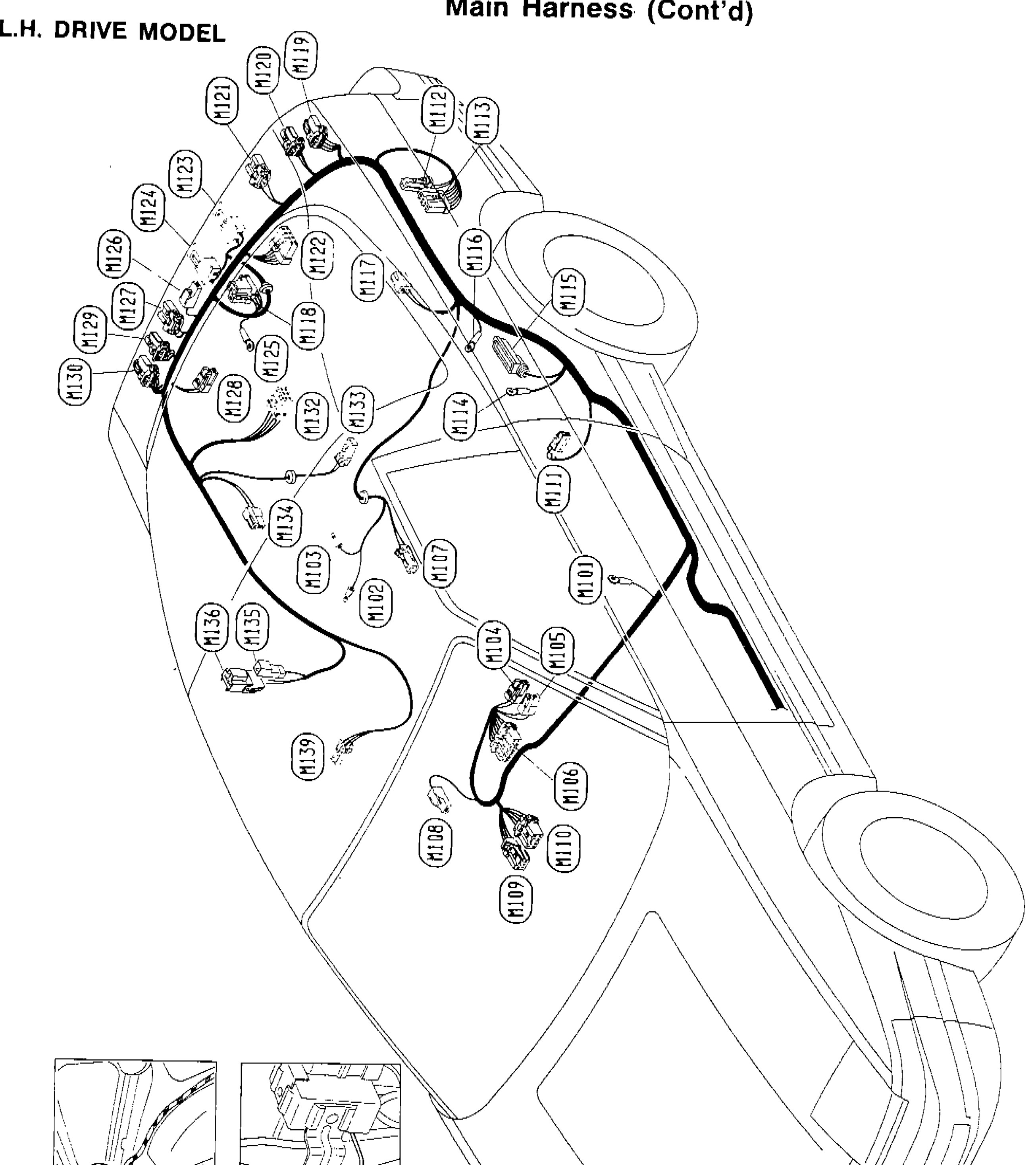

Component LocationFig. fig1
Main harness connector locations for L.H. Drive Model
1M100(rear left body area)
2M101(rear center-right area)
3M102(center floor area)
4M103(center-left floor area)
5M104(center floor area)
6M105(center floor area)
7M106(rear center floor area)
8M107(center floor area)
9M108(rear center floor area)
10M109(rear center floor area)
11M110(rear center floor area)
12M111(right side center pillar area)
13M112(front right roof area)
14M113(front right roof area)
15M114(center dash/firewall area)
16M115(right side front area)
17M116(right side front area)
18M117(center dash area)
19M118(center dash area)
20M119(front left roof area)
21M120(front left roof area)
22M121(left front area)
23M122(center dash area)
24M123(left front area)
25M124(left front area)
26M125(left dash area)
27M126(left front area)
28M127(left front area)
29M128(left front area)
30M129(left front area)
31M130(left front area)
32M132(center dash area)
33M133(center dash area)
34M134(center-left floor area)
35M135(left floor area)
36M136(left floor area)
37M139(left rear floor area)
Component LocationFig. fig2
M116 - Body ground connection detail
1M116(body ground point, front right area)
2Body ground(label annotation)
Component LocationFig. fig3
M125 - Body ground connection detail
1M125(body ground point, left dash area)
2Body ground(label annotation)
Component LocationFig. fig4
M100 - Body ground connection detail
1M100(body ground point, rear left area)
2Body ground(label annotation)
Component LocationFig. fig5
M114 - Body ground connection detail
1M114(body ground point, center dash area)
2Body ground(label annotation)
