PUSH CONTROL UNIT — Overhaul (Cont'd) — disassembly steps 6-12

HA-14prose procedure
Continued from HA-13

Overhaul — Push control unit assembly (Cont'd)

Push control unit disassembly — steps 6-12 (continued from HA-13)

  1. 6
    Remove illumination bulb.

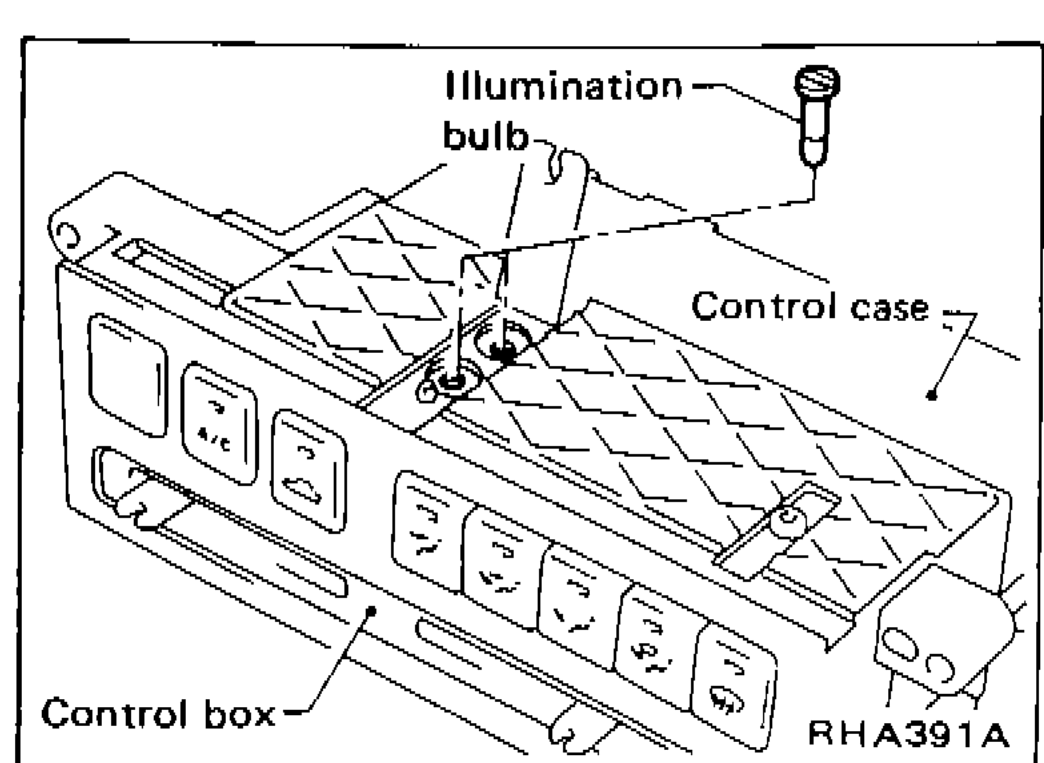

    Illumination bulb being unscrewed from the control case (top of push control unit body); control box on the lower portion.
    RHA391A
  2. 7
    Remove control case.
  3. 8
    Remove illumination plate.
    Be careful not to scratch control amp. when removing illumination plate.
  4. 9
    Remove finisher plate.
  5. 10
    Remove control amp.
    Be careful not to damage substrate when removing.
  6. 11
    Disconnect temperature control cable.
  7. 12
    Installation is in reverse order of removal.
