PUSH CONTROL UNIT — Removal/Installation and Overhaul

HA-12parts diagram
Continued from HA-11

Removal and Installation

Push control unit removal

  1. 1

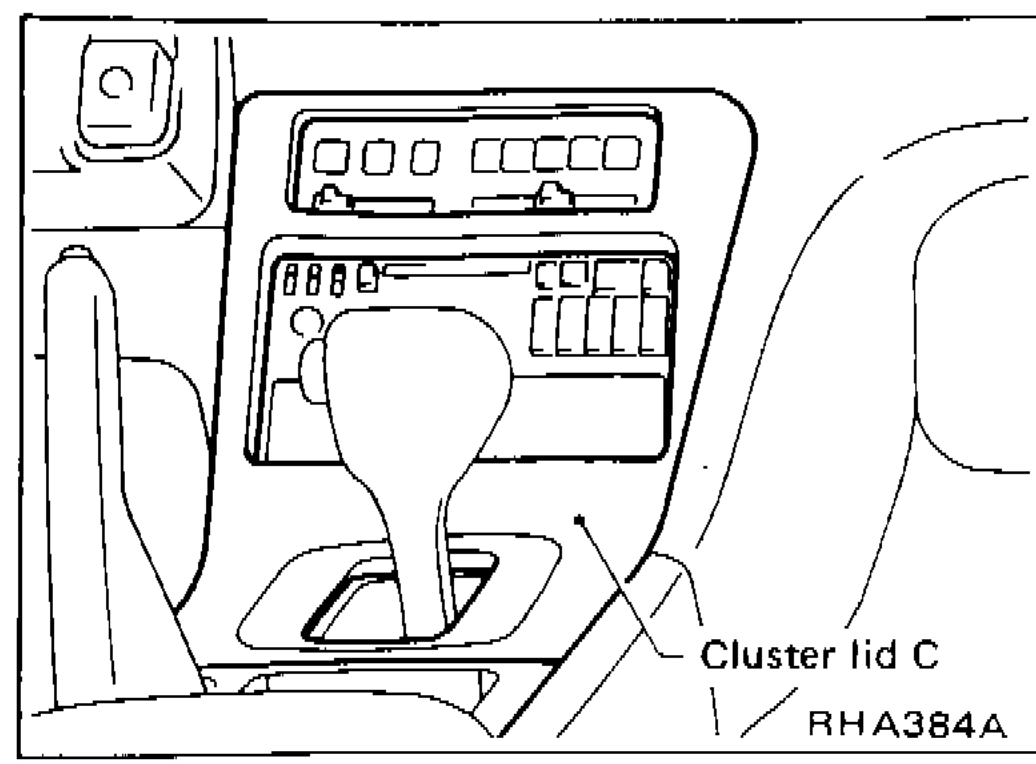

    Remove cluster lid C.
    Cluster lid C being removed from dashboard — step 1 of removal.
    RHA384A
  2. 2
    Remove audio (radio).
  3. 3

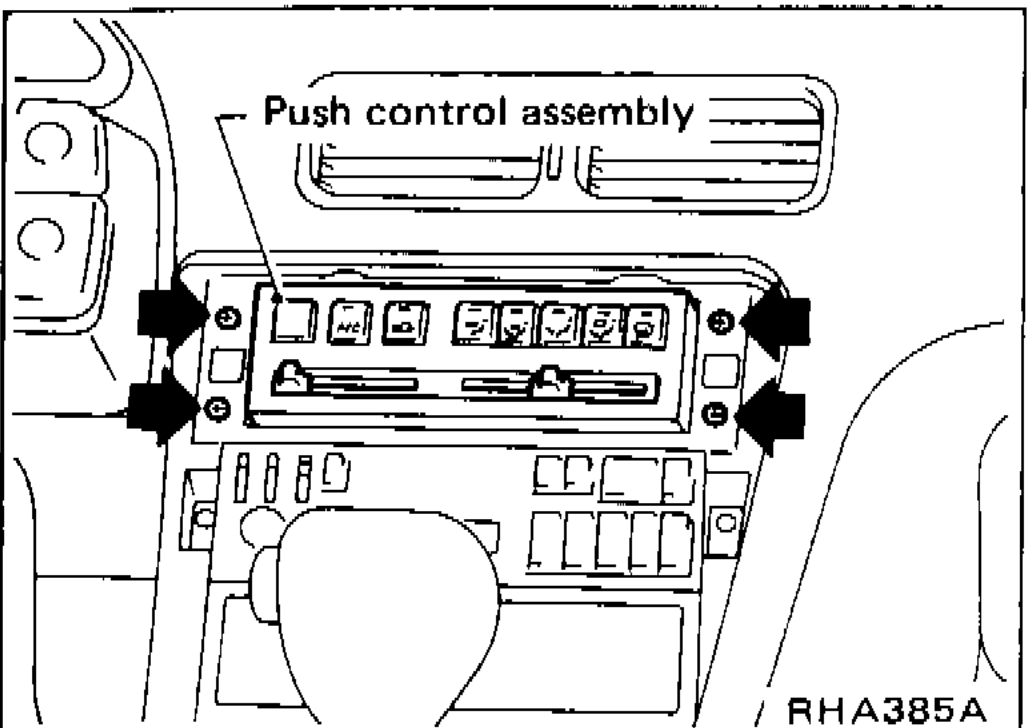

    Remove four screws of push control unit.
    Push control assembly visible in dashboard after cluster lid C removal — four screws to be removed.
    RHA385A
  4. 4
    Remove temperature control cable.
  5. 5
    Disconnect push control unit harness connectors.
  6. 6
    Remove push control unit.
  7. 7
    Installation is in the reverse order of removal.
    Refer to Control Cable Adjustment for temperature control cable.

Overhaul — Push control unit assembly
