Nissan 200SX S13 silhouetteS13

PARKING DRUM BRAKE (DS17HD) — Rear Disc Brake AD9 Model — Exploded view, Shoe Replacement

BR-30parts diagram

DS17HD parking drum brake is integrated into the rear disc rotor (drum-in-hat design) and is fitted only on AD9-equipped cars.

Continued from BR-29

Shoe Replacement

Parking drum brake shoe replacement

  1. 1
    Remove disc rotor (with parking drum brake). Tighten two bolts gradually if disc rotor is hard to remove.

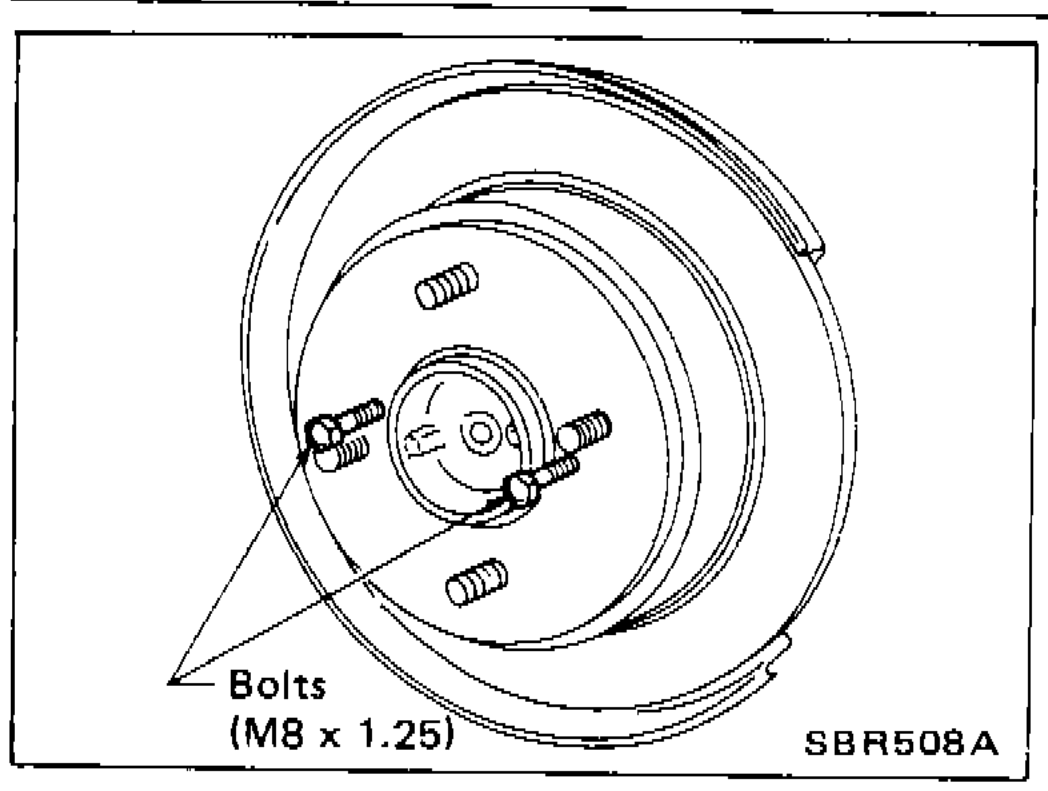

    Two M8×1.25 bolts threaded into the rotor's tapped removal holes to push the rotor off the hub if it is hard to remove.
    SBR508A
  2. 2
    After removing retainer, remove spring by rotating shoes.
    Be careful not to damage parking brake cable when separating it.

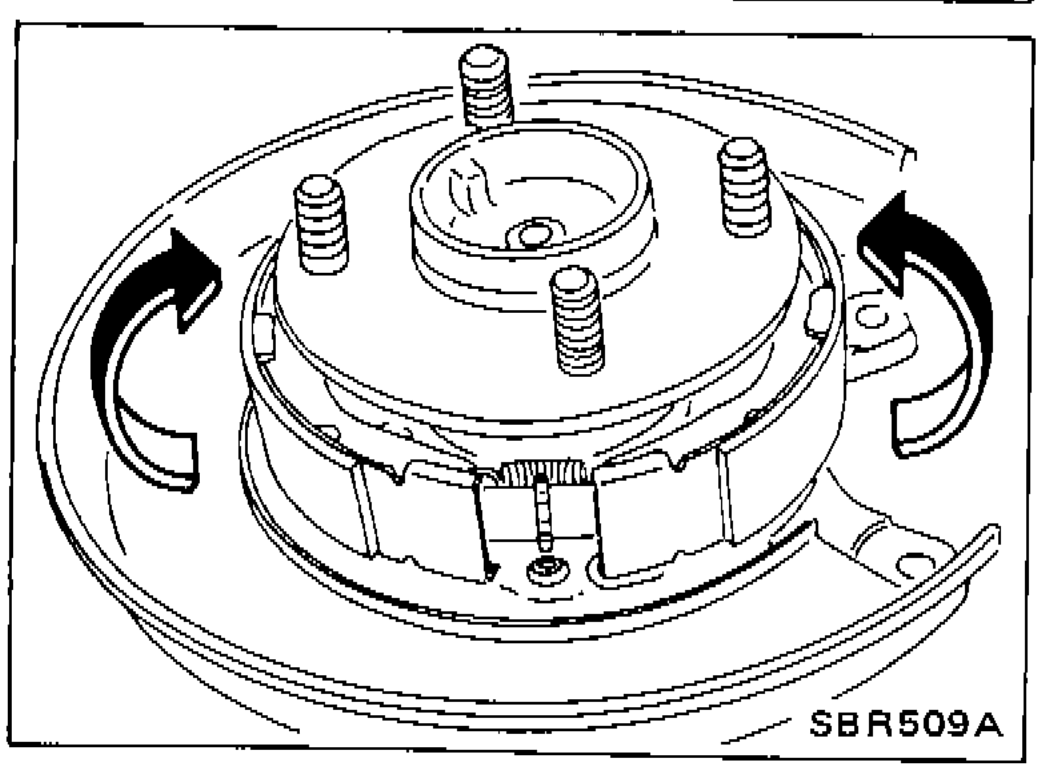

    Removing the brake-shoe retainer and rotating the shoes outward to release the spring; arrows show the rotation direction.
    SBR509A
