REAR DISC BRAKE (CL9H) — Caliper — Disassembly (Cont'd), Inspection, Assembly
BR-20prose procedureDisassembly (Cont'd)
Disassembly (continued from BR-19)

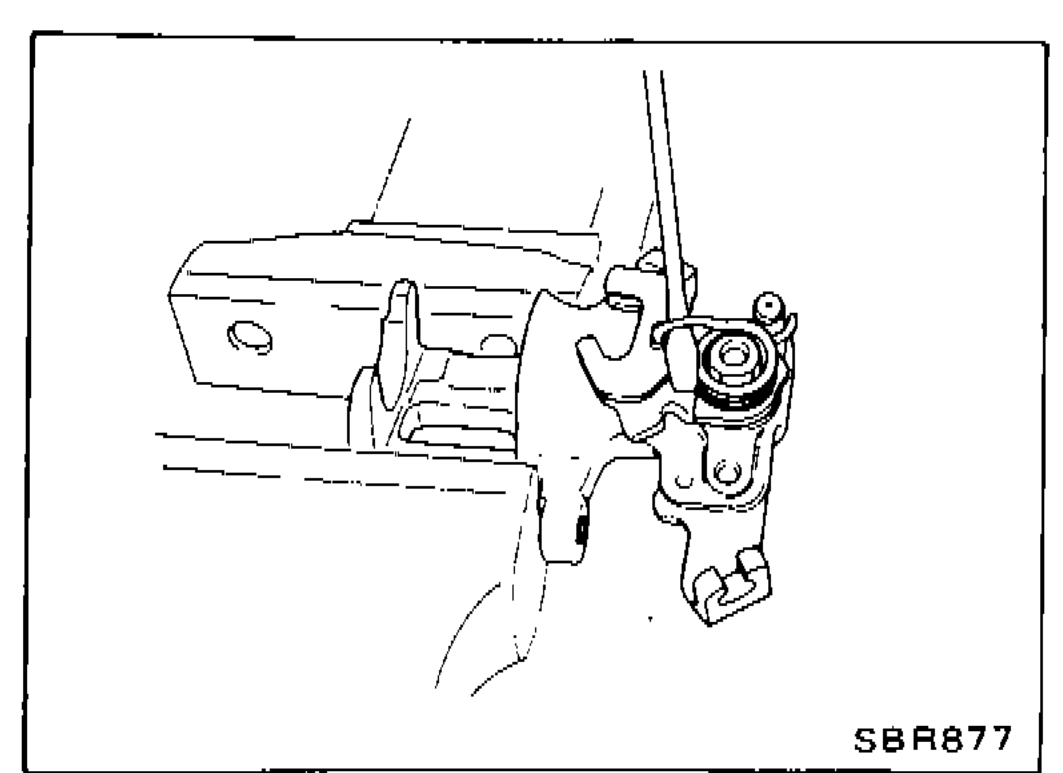

- 4Remove return spring and lever.
SBR877
Inspection
CYLINDER BODY
Check inside surface of cylinder for score, rust, wear or other damage.
Minor damage from rust of foreign materials may be eliminated by polishing surface with a fine emery paper. Replace if necessary.
CAUTION
Use brake fluid to clean.
TORQUE MEMBER
Check for wear, cracks or other damage. Replace if necessary.
PISTON
Check piston for score, rust, wear or other damage. Replace if necessary.
CAUTION
Piston sliding surface is plated. Do not polish with emery paper even if rust or foreign matter is stuck to sliding surface.
PIN AND PIN BOOT
Check for wear, cracks or other damage. Replace if necessary.
Assembly
IMPORTANT
Install cup securely in the specified direction.
Fit push rod into square hole in key plate. Also match convex portion of key plate with concave portion of cylinder.
