REAR DISC BRAKE (CL9H) — Caliper — Assembly (Cont'd), On-vehicle Inspection, Disc Pad

BR-21prose procedure

Assembly (Cont'd)

IMPORTANT

Install ring C with suitable tool. Install seat, spring, spring cover and ring B with suitable press and drift.

1
Swing cylinder body upward.
2
Make sure that wheel bearing is adjusted properly. Refer to section RA.
3
Measure rotating force (F₁).
SBR227A
4
Install caliper with pads to original position.
5
Depress brake pedal for 5 seconds.
6
Release brake pedal, rotate disc rotor 10 revolutions.
7

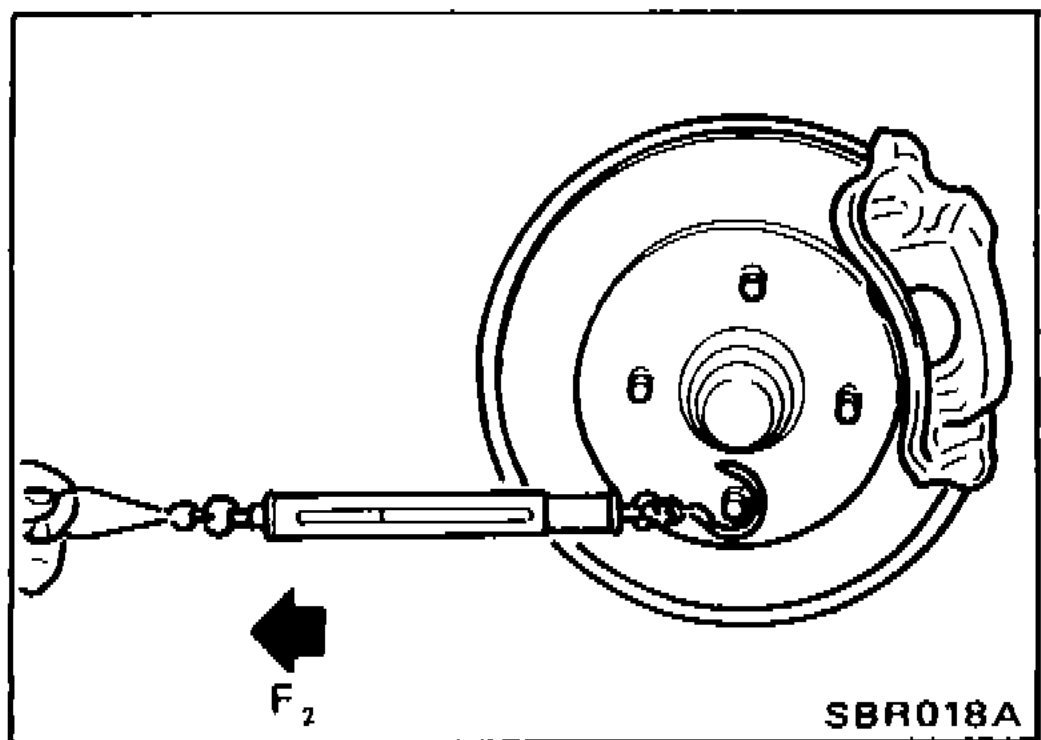

Measure rotating force (F₂).
SBR018A
8
Calculate brake drag force by subtracting F₁ from F₂. If it is not within specification, check pins and pin boots in caliper.

Specification	Value
Maximum brake drag force (F₂ - F₁)Rear caliper on-vehicle inspection.	86.3N (8.8 kg, 19.4 lb)

Maximum brake drag force (F₂ - F₁)Rear caliper on-vehicle inspection.

86.3N (8.8 kg, 19.4 lb)

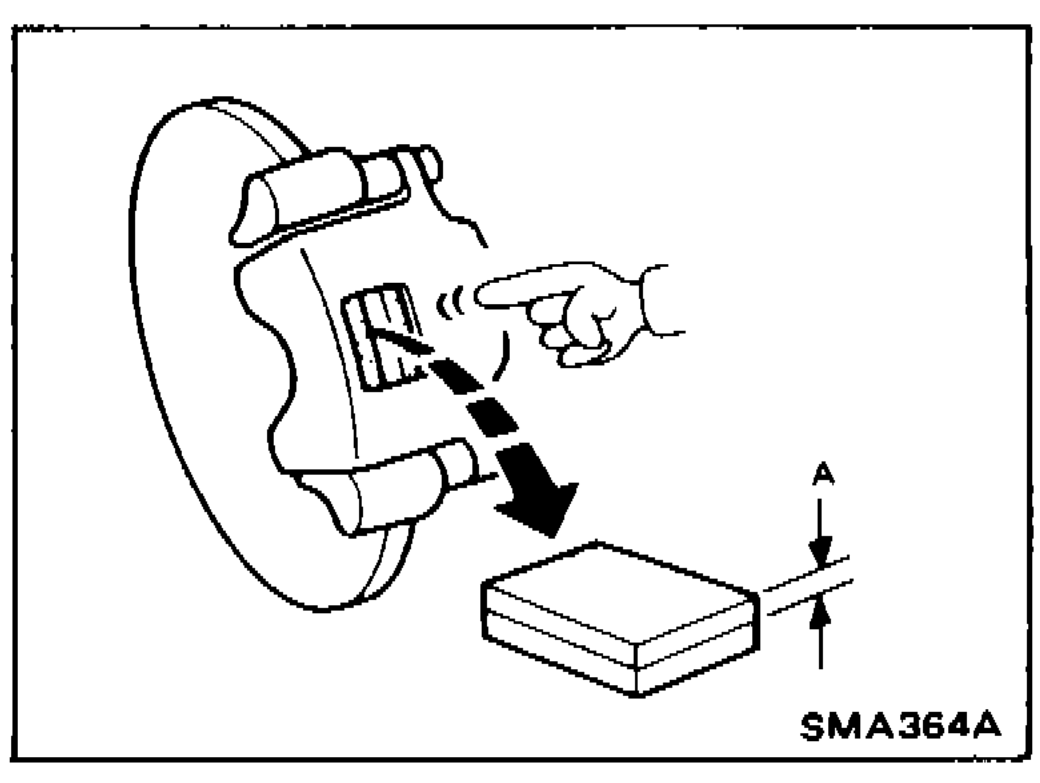

Check disc pad for wear or damage.

Specification	Value
Standard thickness (A)Rear caliper pad.	9.5mm (0.374 in)
Pad wear limit (A)Replace below this value.	2.0mm (0.079 in)

Standard thickness (A)Rear caliper pad.

9.5mm (0.374 in)

Pad wear limit (A)Replace below this value.

2.0mm (0.079 in)
