FRONT DISC BRAKE (CL18VB, CL25VA) — Caliper — Pad Replacement, Removal/Installation, Disassembly

BR-14prose procedure
Continued from BR-13

Pad replacement

  1. 1
    Remove pin bolt.

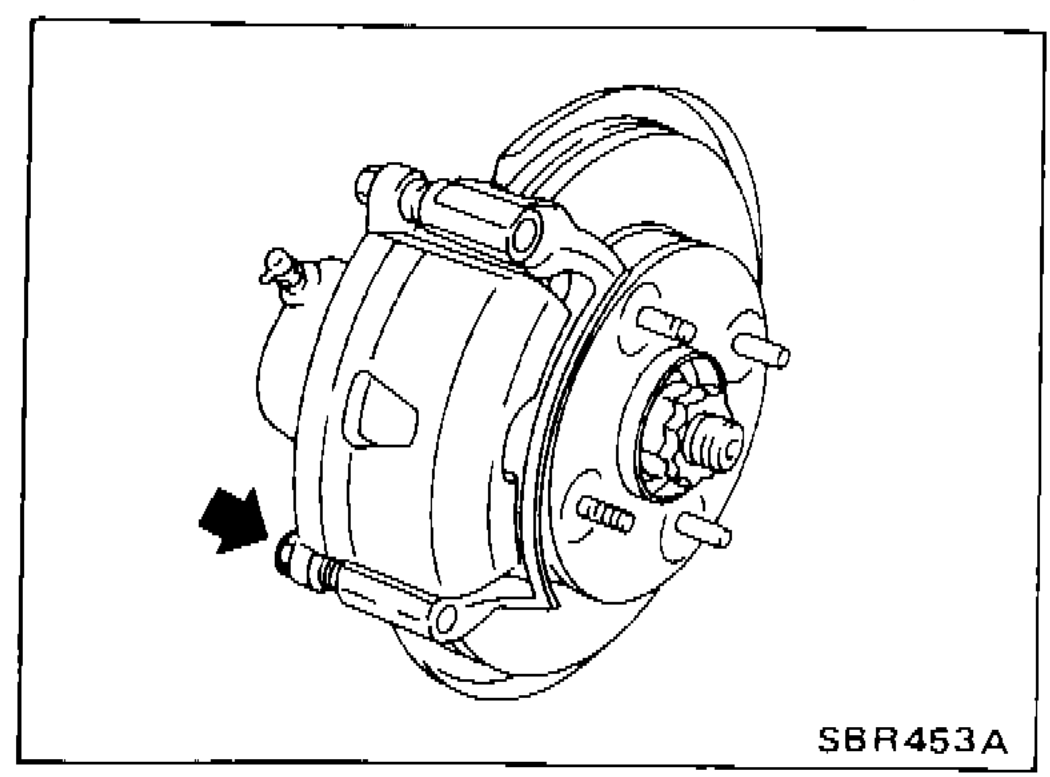

    Front caliper viewed from rear with arrow pointing to lower pin bolt being removed.
    SBR453A
  2. 2
    Swing cylinder body upward. Then remove pad retainer, and inner and outer shims.
    When cylinder body is swung up, do not depress brake pedal because piston will pop out.
    Be careful not to damage dust seal or get oil on rotor. Always replace shims when replacing pads.

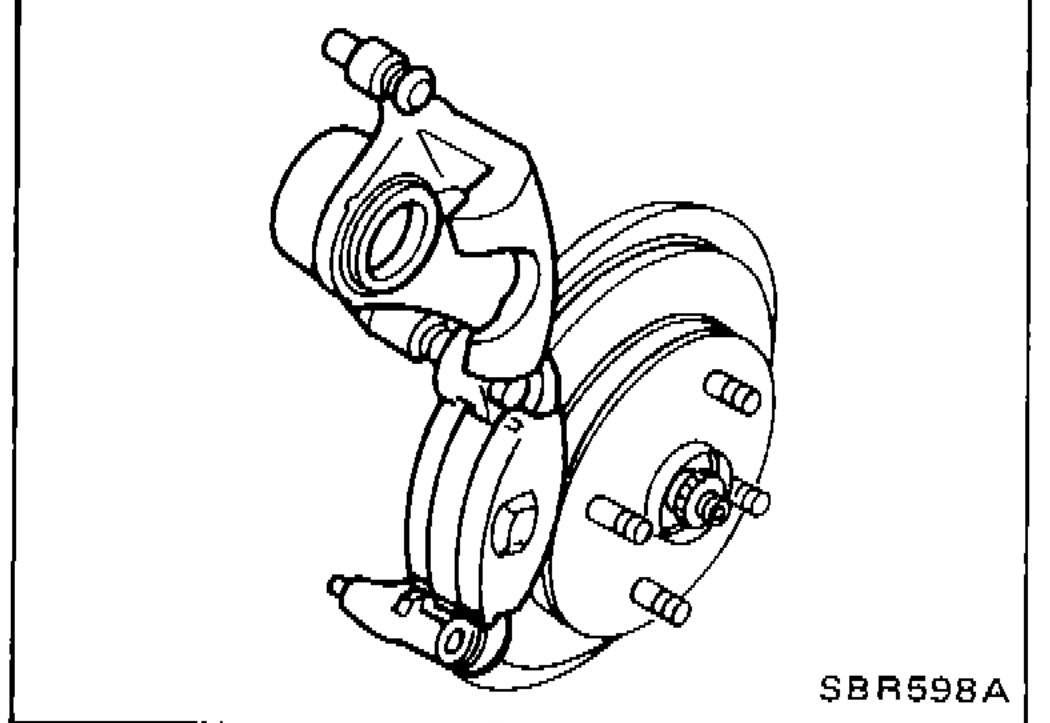

    Caliper cylinder body swung upward off the rotor, exposing pads, pad retainer and shims for replacement.
    SBR598A

Removal and Installation

Remove torque member fixing bolts and union bolt.

Disassembly

Push out piston with dust seal using compressed air.
