REAR DISC BRAKE (AD9) — Caliper — Exploded view, Pad Replacement

BR-23parts diagram

AD9 rear caliper used on cars equipped with the parking-drum-brake variant (DS17HD); uses guide-pin fastening rather than the CL9H's pin-bolt arrangement.

Continued from BR-22

Rear-caliper (AD9) tightening torques

Fastener	N·m	kg-m	ft-lb
Air bleeder	7 - 9	0.7 - 0.9	5.1 - 6.5
Connecting bolt (hose)	17 - 20	1.7 - 2.0	12 - 14
Pin / guide pin	31 - 41	3.2 - 4.2	23 - 30
Torque member fixing bolt	38 - 52	3.9 - 5.3	28 - 38

Air bleeder

N·m7 - 9

kg-m0.7 - 0.9

ft-lb5.1 - 6.5

Connecting bolt (hose)

N·m17 - 20

kg-m1.7 - 2.0

ft-lb12 - 14

Pin / guide pin

N·m31 - 41

kg-m3.2 - 4.2

ft-lb23 - 30

Torque member fixing bolt

N·m38 - 52

kg-m3.9 - 5.3

ft-lb28 - 38

Pad Replacement

Rear AD9 pad replacement

1

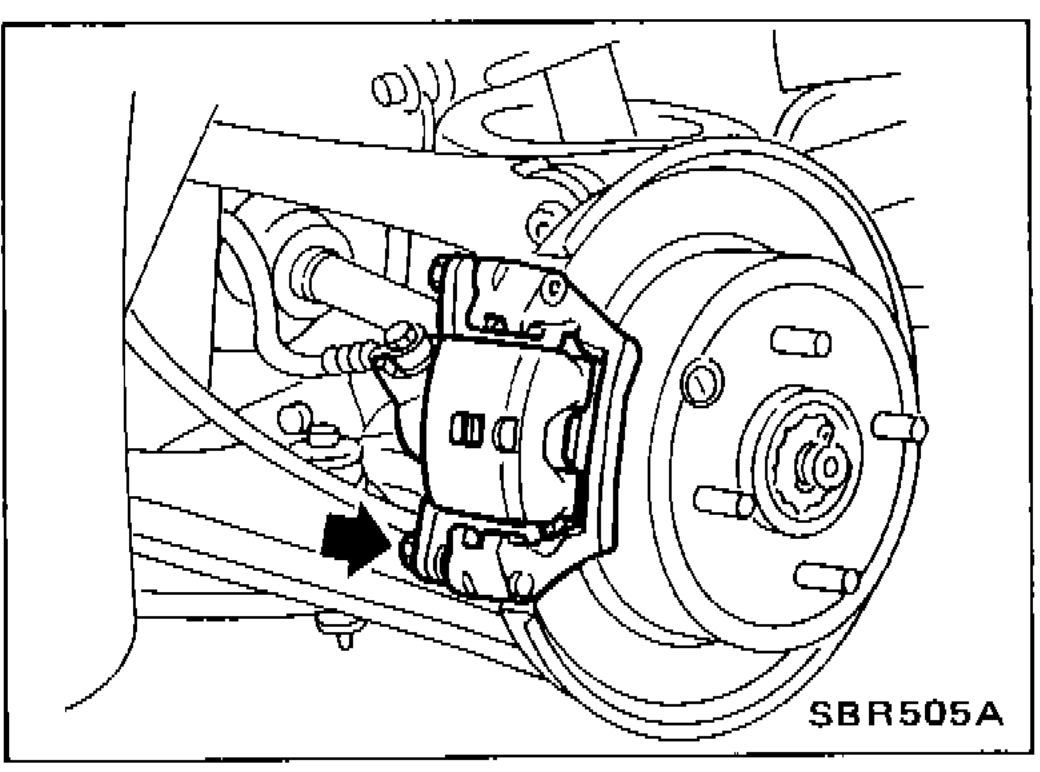

Remove guide pin.
SBR505A
2

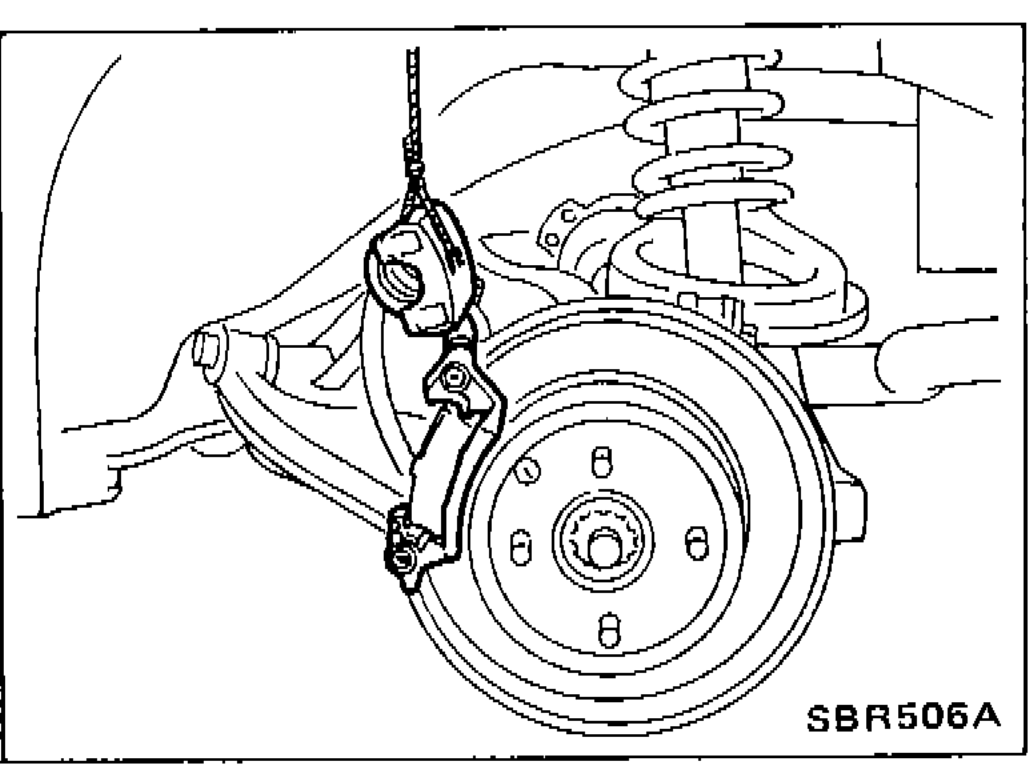

Swing cylinder body upward. Then remove pad retainer and inner and outer shims.
When cylinder body is swung up, do not depress brake pedal because piston will pop out.
Be careful not to damage dust seal or get oil on rotor. Always replace shims when replacing pads.
SBR506A
