TROUBLE DIAGNOSES — Final Check: Stall Testing
AT-68prose procedureA/T (Automatic Transmission) specific procedure. Stall test performed in D, 2, 1, and R selector positions.
Final Check
STALL TESTING
Stall test procedure
- 1Check A/T and engine fluid levels. If necessary, add.

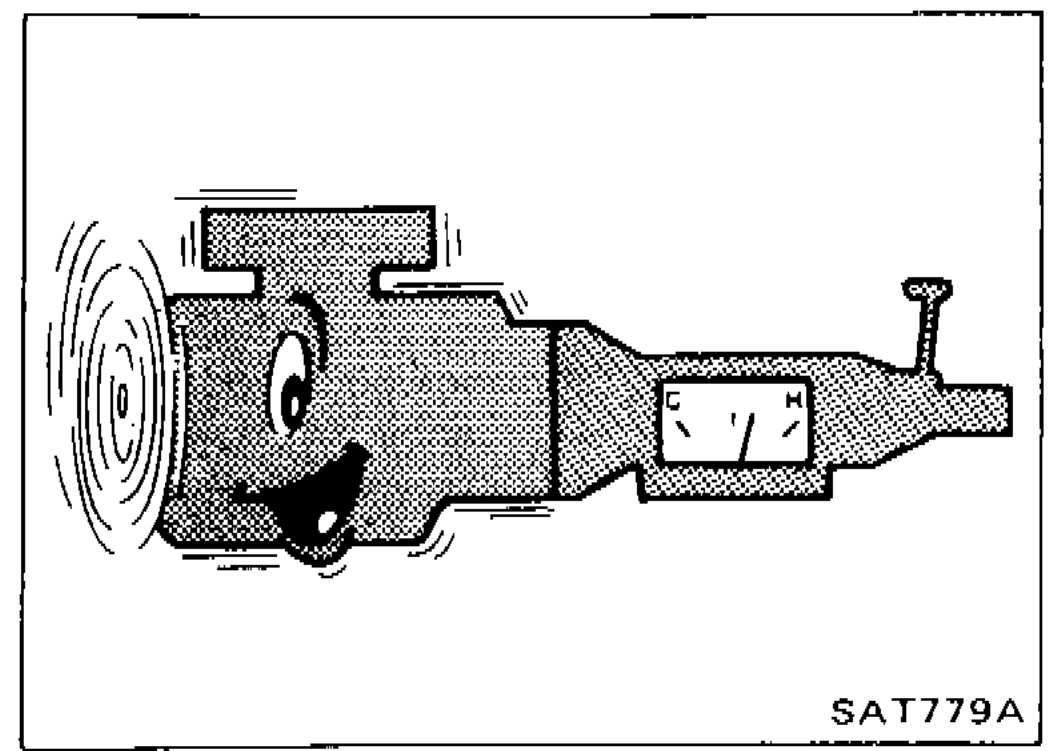

SAT779A - 2Warm up engine until engine oil and A.T.F. reach operating temperature after vehicle has been driven approx. 10 minutes.A.T.F. operating temperature: 50 - 80°C (122 - 176°F)
- 3Set parking brake and block wheels.
SAT597 - 4Install a tachometer where it can be seen by driver during test.It is good practice to put a mark on point of specified engine rpm on indicator.
- 5Start engine, apply foot brake, and place selector lever in "D" range.

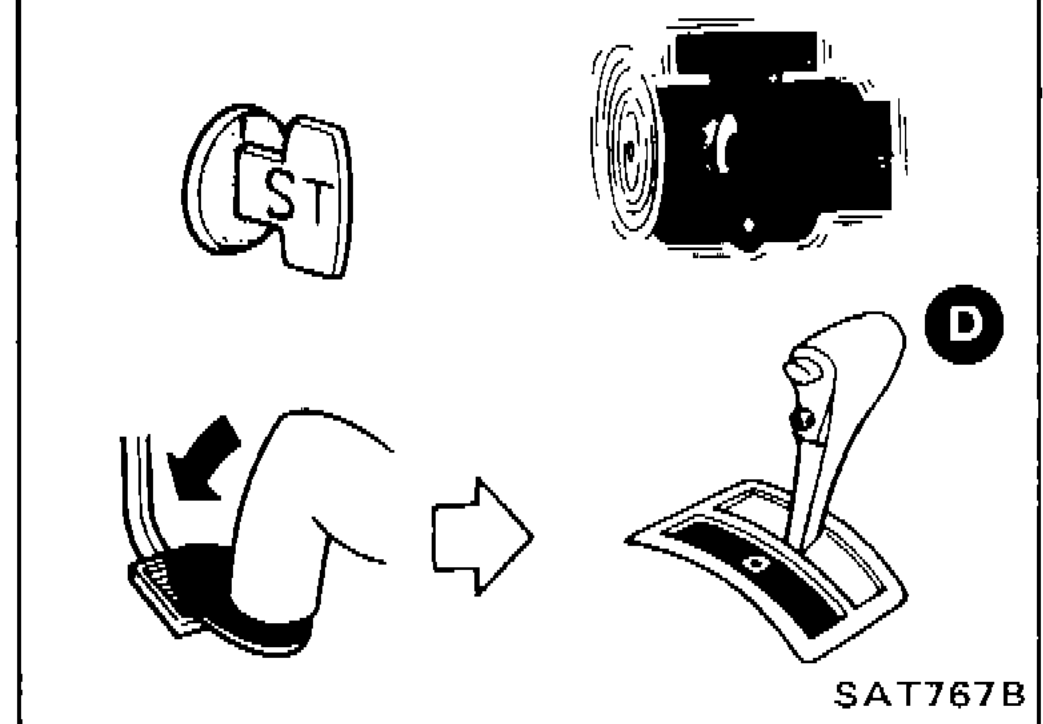

SAT767B - 6Accelerate to wide-open throttle gradually while applying foot brake.

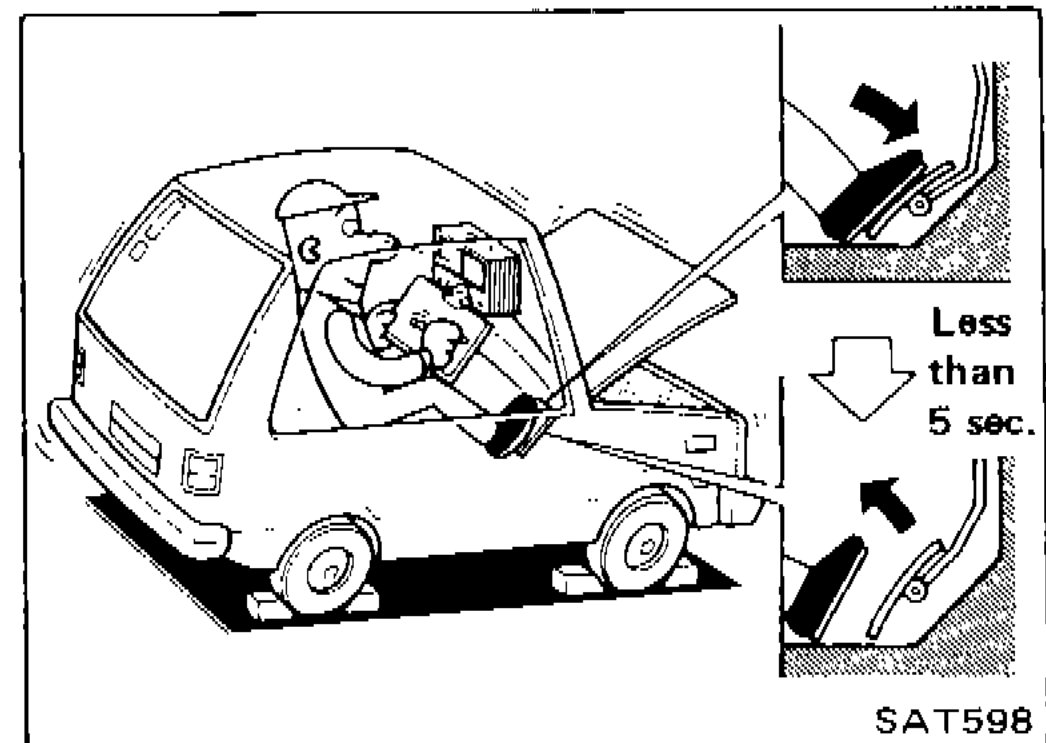

SAT598 - 7Quickly note the engine stall revolution and immediately release throttle.During test, never hold throttle wide-open for more than 5 seconds.Stall revolution: 3,050 - 3,250 rpm
- 8Shift selector lever to "N".

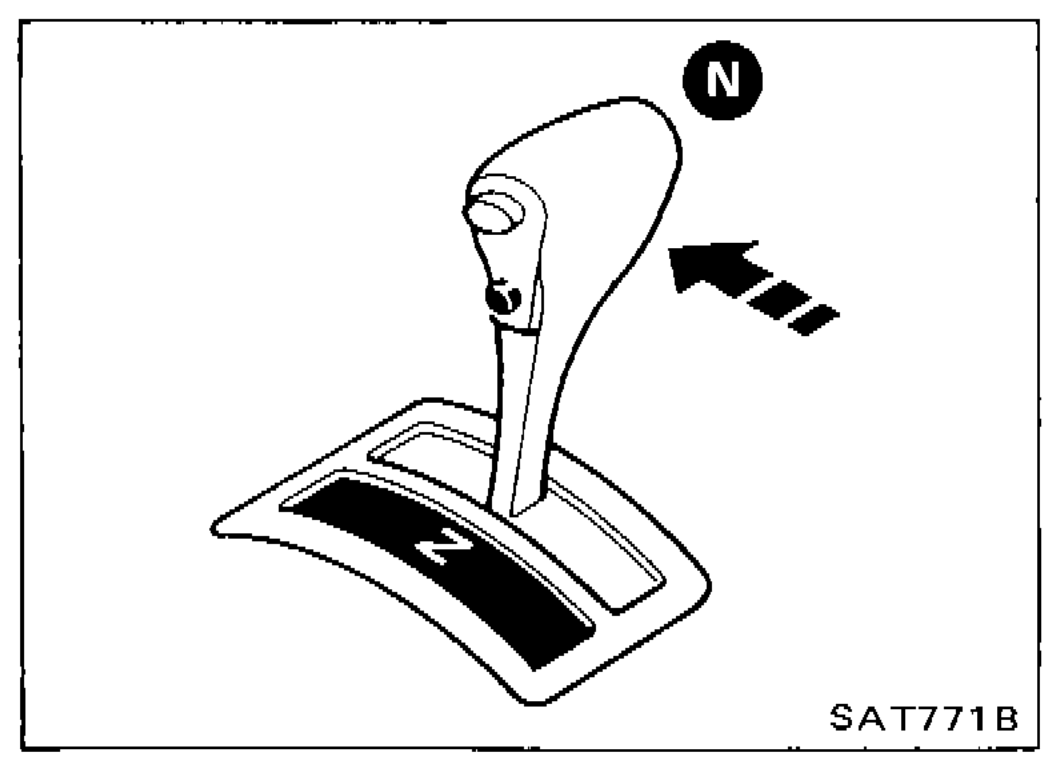

SAT771B - 9Cool off A.T.F.Run engine at idle for at least one minute.
- 10Perform stall tests in the same manner as in steps 5 through 9 with selector lever in "2", "1" and "R", respectively.
| Specification | Value |
|---|---|
| A.T.F. operating temperatureWarm-up condition | 50 - 80°C (122 - 176°F) |
| Stall revolutionWide-open throttle stall test | 3,050 - 3,250rpm |
A.T.F. operating temperatureWarm-up condition
50 - 80°C (122 - 176°F)
Stall revolutionWide-open throttle stall test
3,050 - 3,250rpm
IMPORTANT
It is good practice to put a mark on point of specified engine rpm on indicator.
CAUTION
During test, never hold throttle wide-open for more than 5 seconds.
IMPORTANT
Run engine at idle for at least one minute.
