TROUBLE DIAGNOSES — Preliminary Check / A/T Fluid Check

AT-14prose procedure

Applies to A/T (Automatic Transmission) equipped vehicles only.

Preliminary Check

1

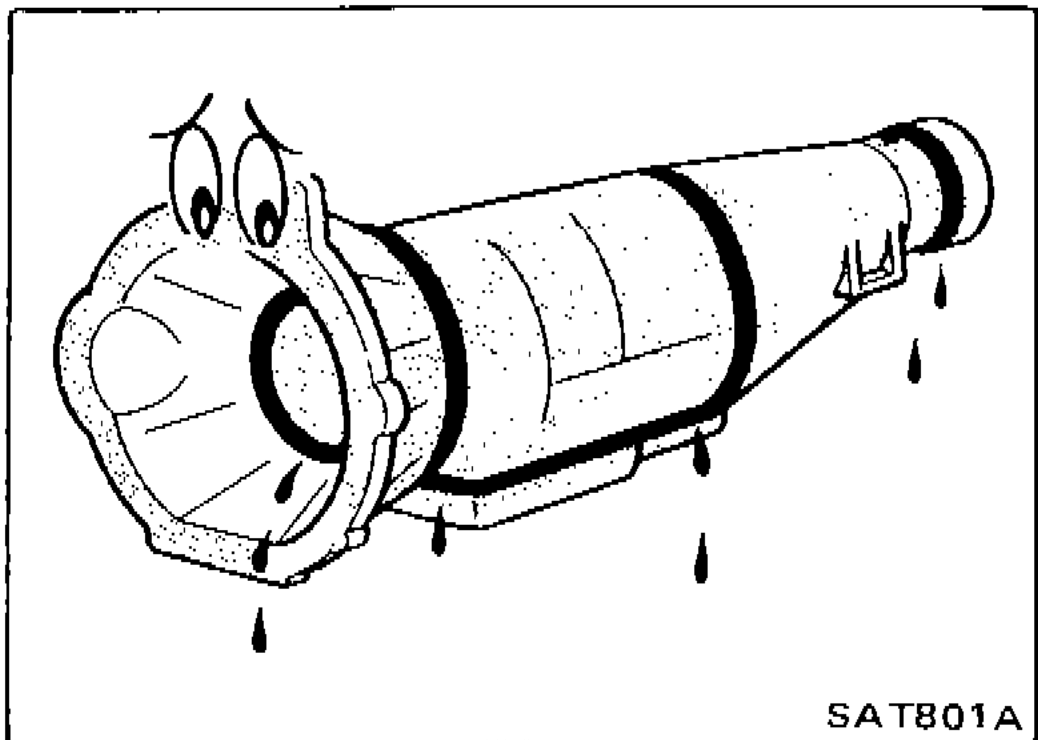

Clean area suspected of leaking, — for example, mating surface of converter housing and transmission case.
2

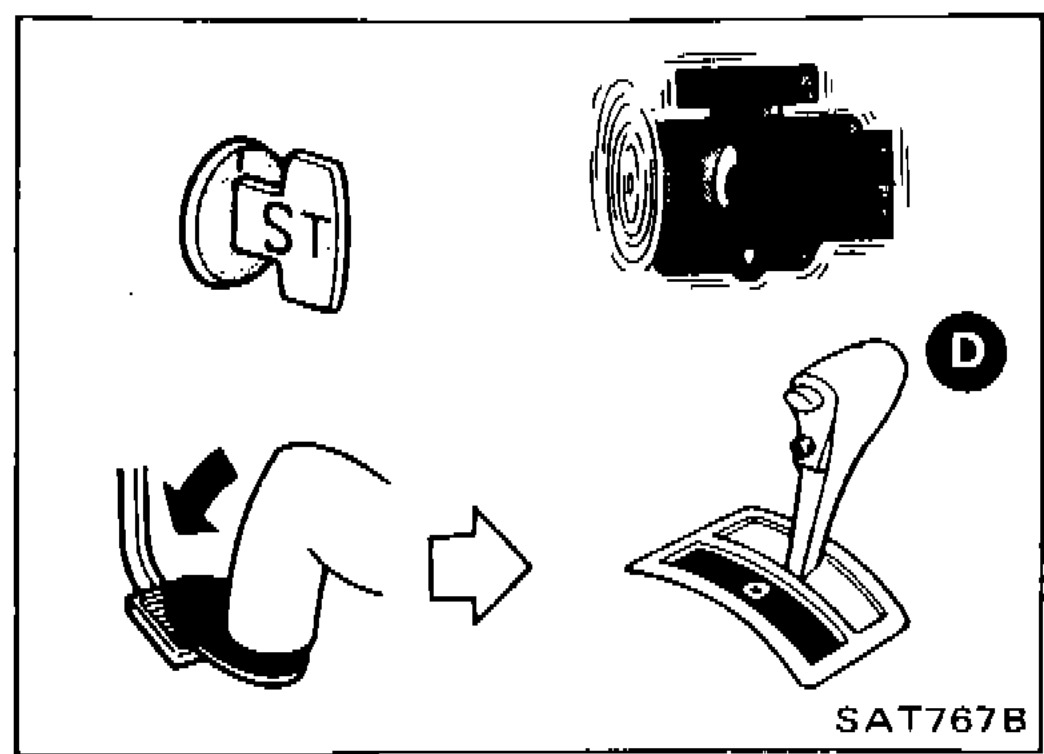

Start engine, apply foot brake, place selector lever in "D" range and wait a few minutes.
SAT767B
3
Stop engine.
4
Check for fresh leakage.
SAT801A

Fluid color	Suspected problem
Dark or black with burned odor	Wear of frictional material
Milky pink	Water contamination — Road water entering through filler tube or breather
Varnished fluid, light to dark brown and tacky	Oxidation — Over or under filling — Overheating

Dark or black with burned odor

Suspected problemWear of frictional material

Milky pink

Suspected problemWater contamination — Road water entering through filler tube or breather

Varnished fluid, light to dark brown and tacky

Suspected problemOxidation — Over or under filling — Overheating

Refer to section MA.
