A/T Electrical Parts Location
AT-25component photoApplies to A/T (Automatic Transmission) equipped 1989 Nissan 200SX (S13). Figure reference code SAT907B.
TROUBLE DIAGNOSES
A/T Electrical Parts Location
Component LocationFig. fig2

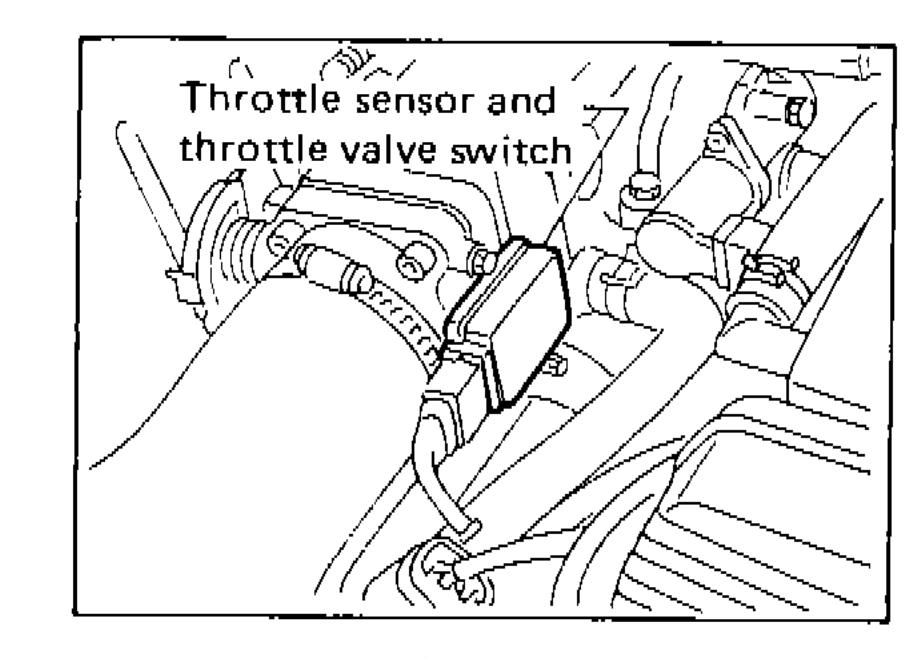

Throttle sensor and throttle valve switch — located on engine throttle body
1Throttle sensor and throttle valve switch(engine bay, throttle body area)
Component LocationFig. fig3

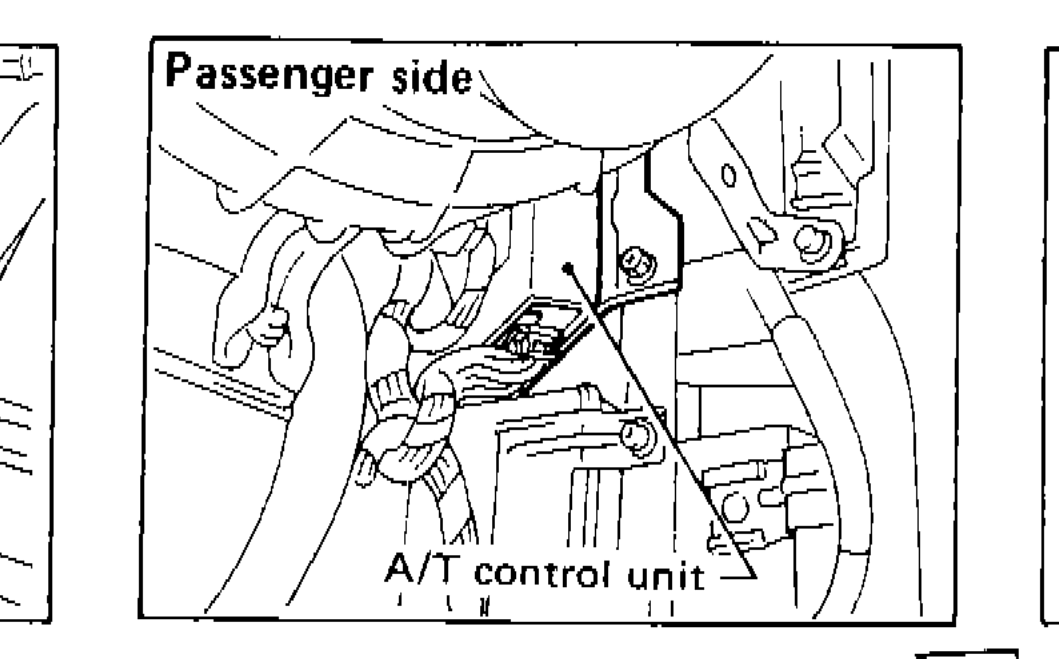

A/T control unit — located on passenger side
1Passenger side(under dash, passenger side)
2A/T control unit(passenger side under dash)
Component LocationFig. fig4

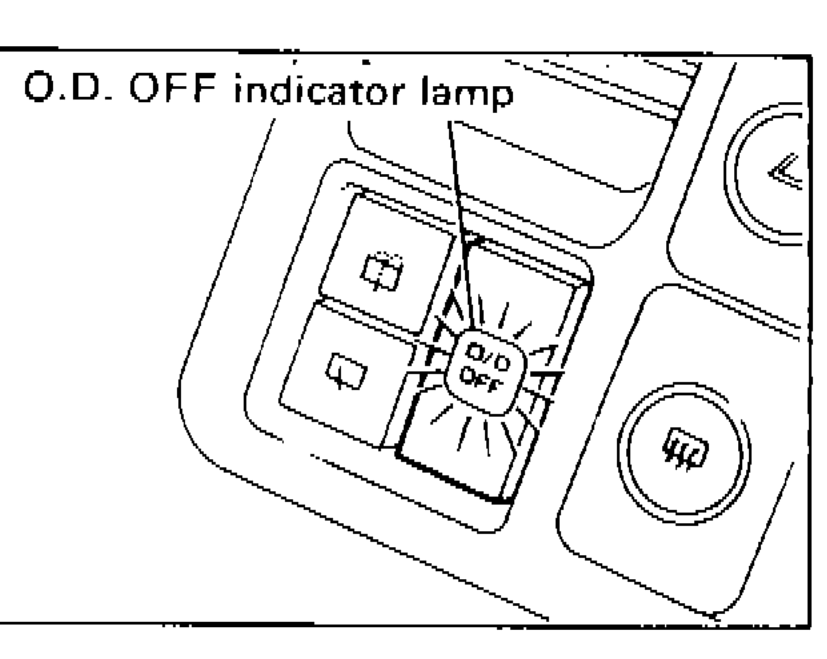

O.D. OFF indicator lamp — located on instrument panel/dashboard
1O.D. OFF indicator lamp(instrument panel)
Component LocationFig. fig5

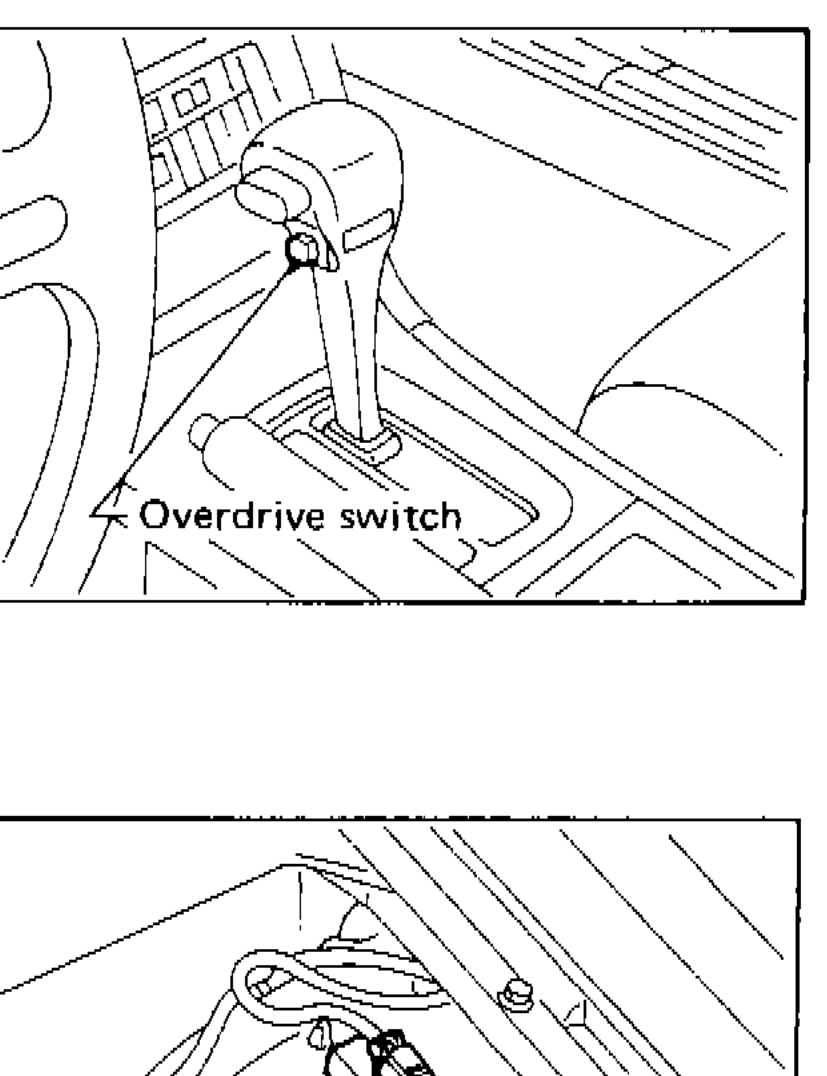

Overdrive switch — located on gear shift lever
1Overdrive switch(gear shift lever / center console)
Component LocationFig. fig6

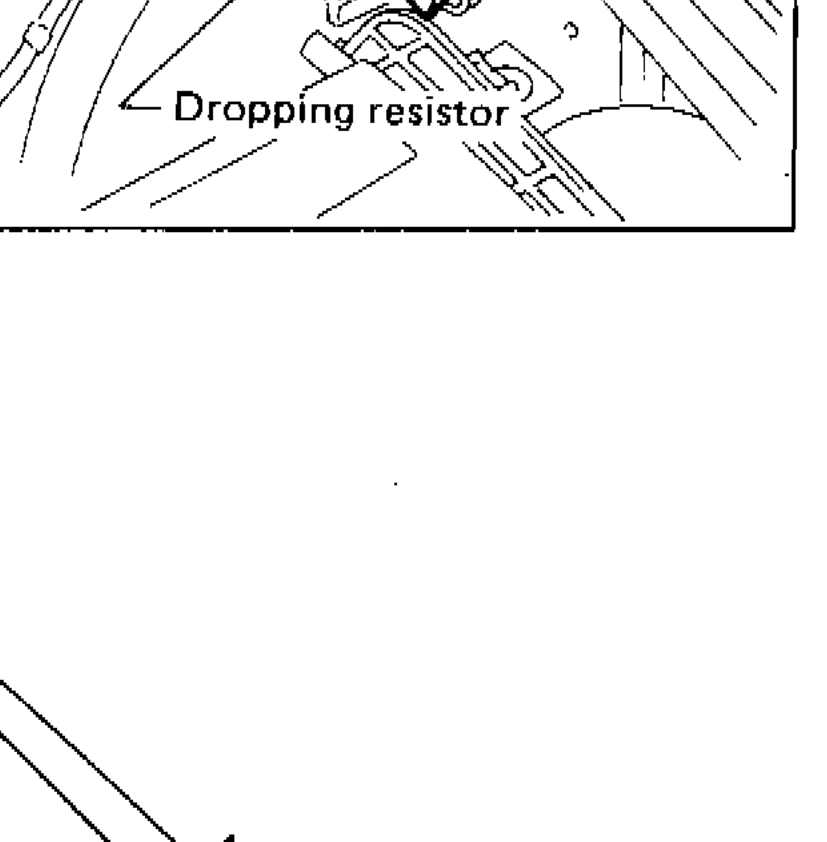

Dropping resistor — located on body/firewall area
1Dropping resistor(body panel / firewall area)
Component LocationFig. fig7

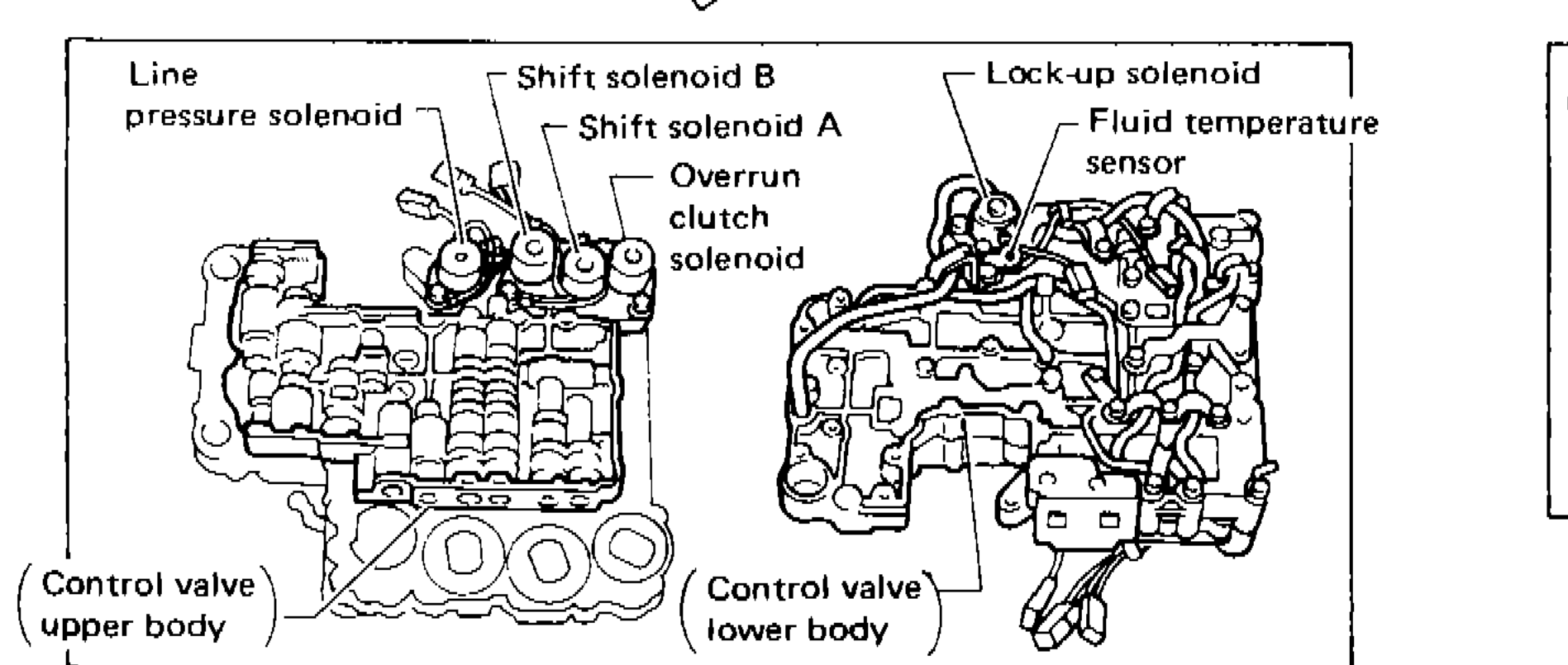

Automatic transmission control valve body components
1Line pressure solenoid(control valve upper body)
2Shift solenoid B(control valve upper body)
3Shift solenoid A(control valve upper body)
4Overrun clutch solenoid(control valve upper body)
5Lock-up solenoid(control valve lower body)
6Fluid temperature sensor(control valve lower body)
7Control valve upper body(left assembly)
8Control valve lower body(right assembly)
Component LocationFig. fig8

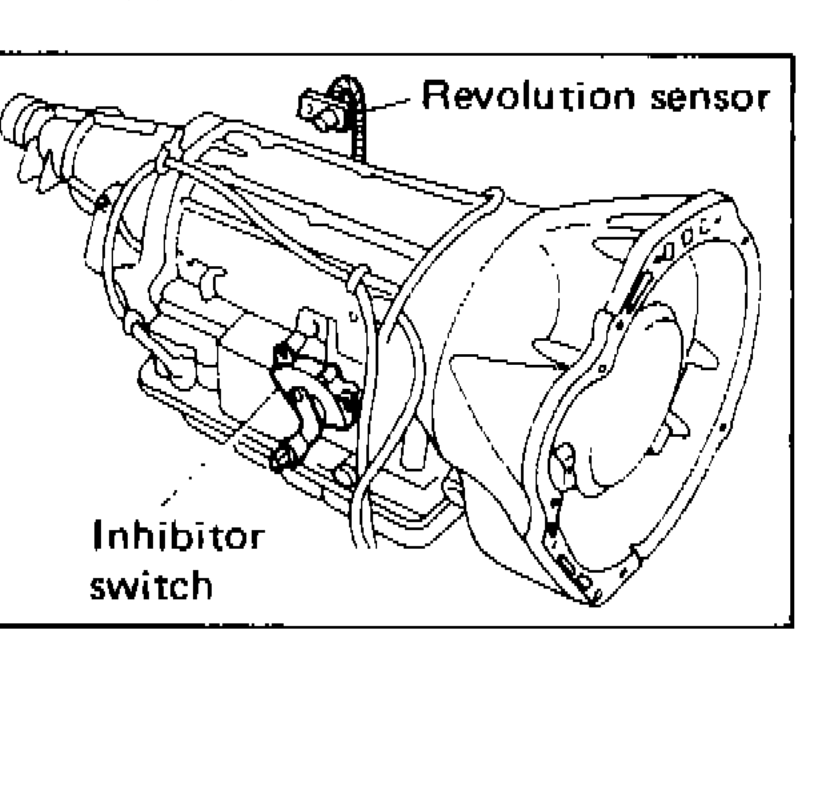

Automatic transmission rear housing components
1Revolution sensor(rear of transmission housing)
2Inhibitor switch(transmission housing)
