ON-VEHICLE SERVICE
MT-4prose procedureReplacing Rear Oil Seal
REMOVAL

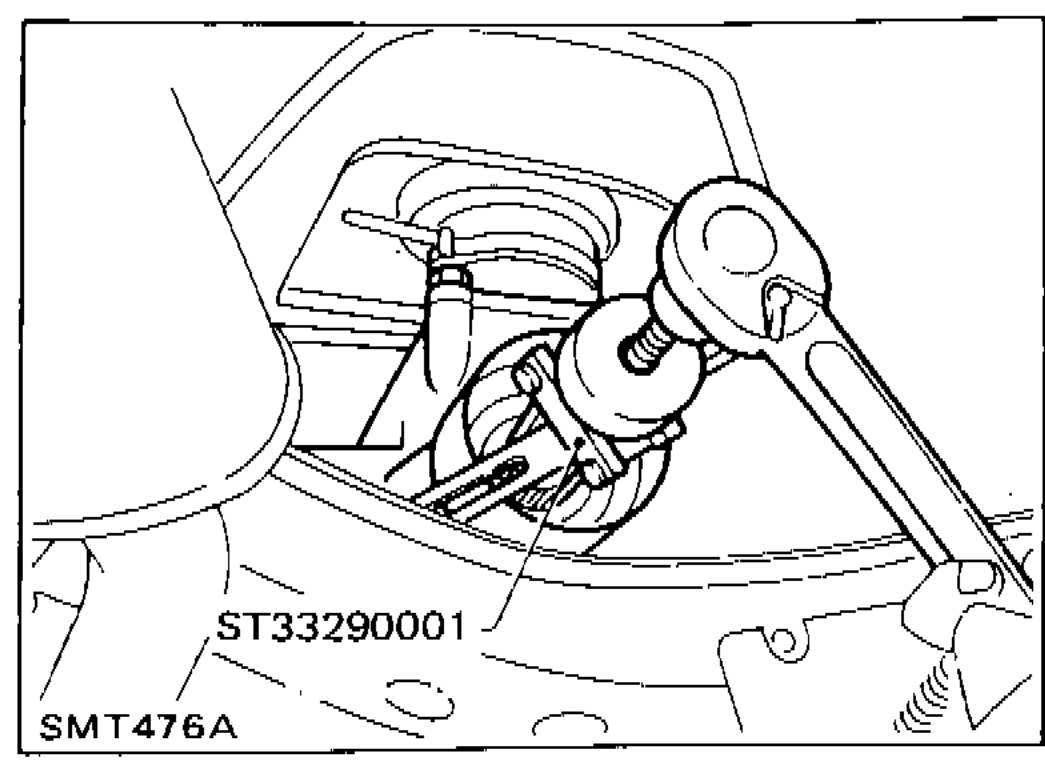

- 1Use tool ST33290001 to remove the rear oil seal.
SMT476A
INSTALLATION

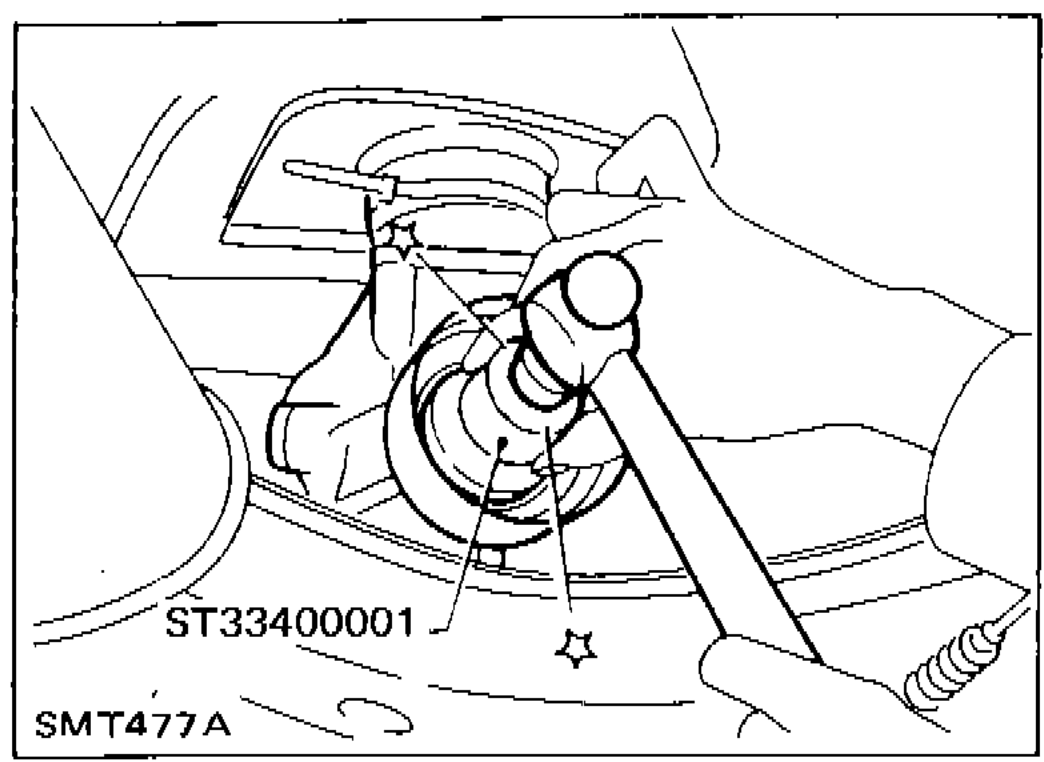

- 1Use tool ST33400001 to install the rear oil seal.
SMT477A
Check of Position Switch
BACK-UP LAMP SWITCH
Check continuity.
Back-Up Lamp Switch Continuity
Reverse
ContinuityYes
Except reverse
ContinuityNo
NEUTRAL SWITCH
Check continuity.
Neutral Switch Continuity
Neutral
ContinuityYes
Except neutral
ContinuityNo

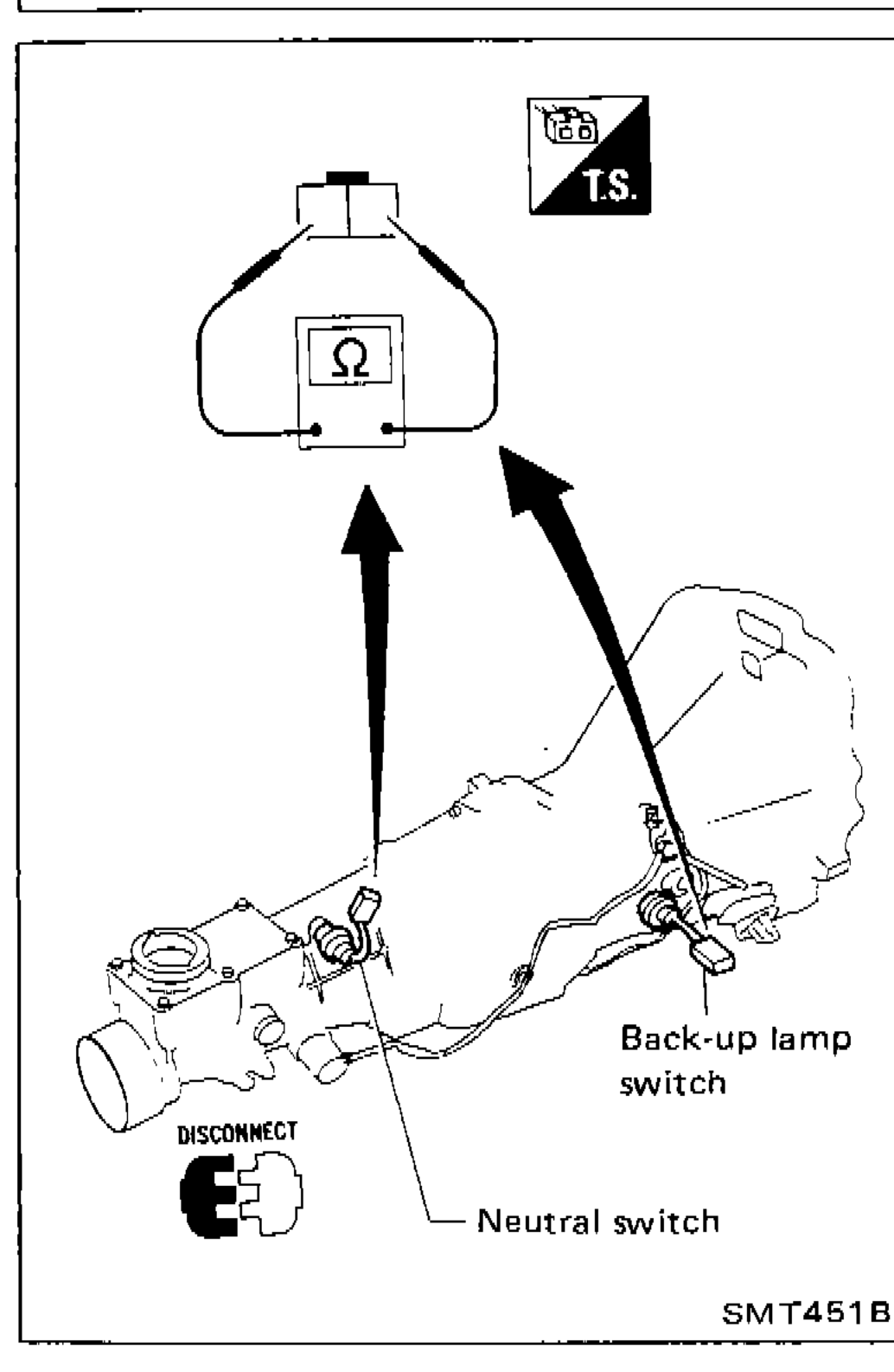

Component LocationFig. fig3
Location of back-up lamp switch and neutral switch on transmission with disconnect connector shown
SMT451B
1Back-up lamp switch(center-right of transmission housing)
2Neutral switch(lower-left of transmission housing)
3DISCONNECT(bottom-left, connector symbol)
