ASSEMBLY — Case Components (Cont'd)
MT-26prose procedureCase Components (Cont'd)
Component LocationFig. fig1
Measurement dimension A: Distance from bearing surface to transmission case
1A(top-left of diagram, indicating distance from bearing surface to transmission case)
Case Components Assembly (Cont'd)
- 7Select counter front bearing shim. Counter front bearing shim: Refer to S.D.S.Counter front bearing shim: Refer to S.D.S.
- 8Install gasket and front cover.

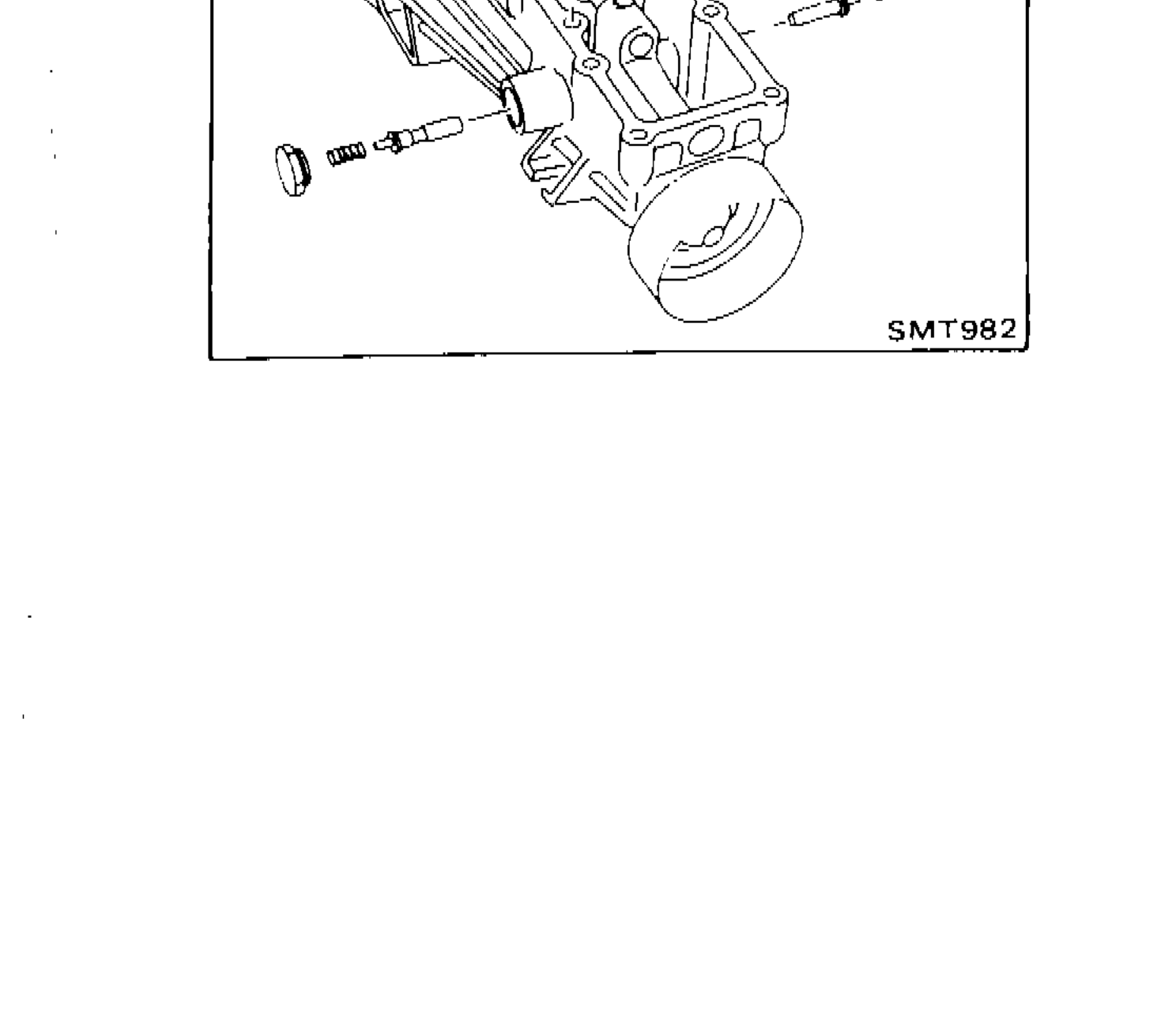

- 9Install return spring plugs, check ball, return springs and select check plunger.
SMT982 - 10Install control housing and gasket.
