DISASSEMBLY — Shift Control Components

MT-11prose procedure
Continued from MT-10

Shift Control Components

  1. 1

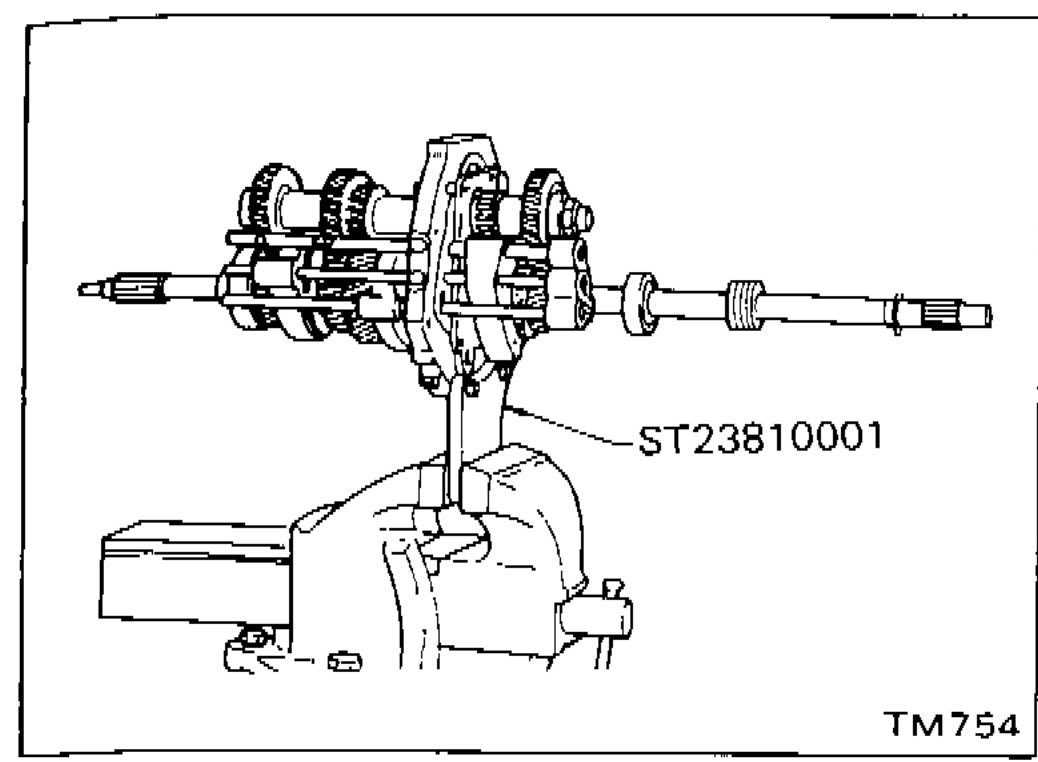

    Set up Tool on adapter plate.
    Tool ST23810001 set up on adapter plate on transmission assembly
    TM754
  2. 2
    Remove check ball plugs, check springs, and check balls.
  3. 3

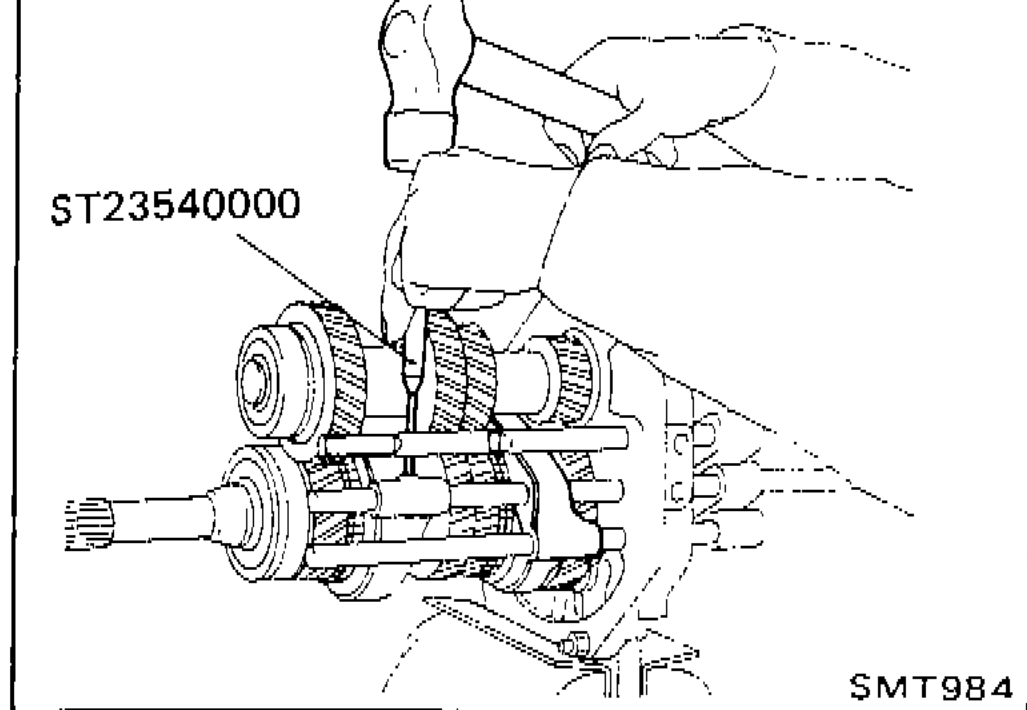

    Drive out retaining pins. Then drive out fork rods and remove interlock balls.
    Tool ST23540000 being used to drive out retaining pins and fork rods to remove interlock balls
    SMT984
  4. 4

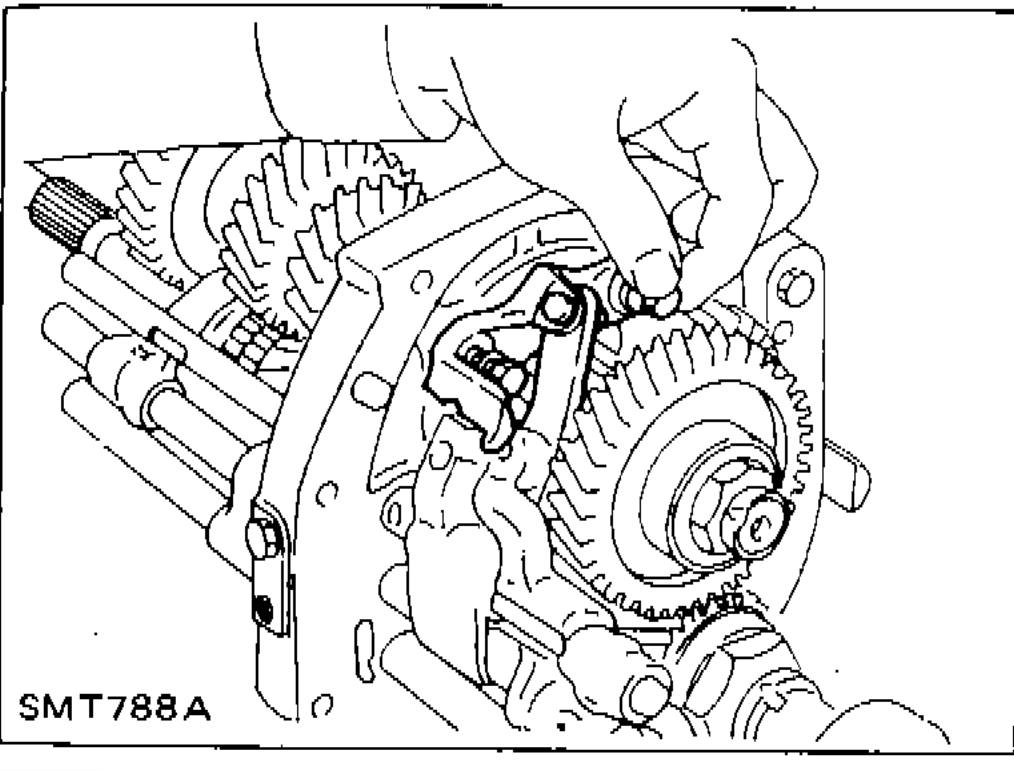

    Remove lever bracket securing bolt.
    Removing lever bracket securing bolt from transmission
    SMT788A
  5. 5

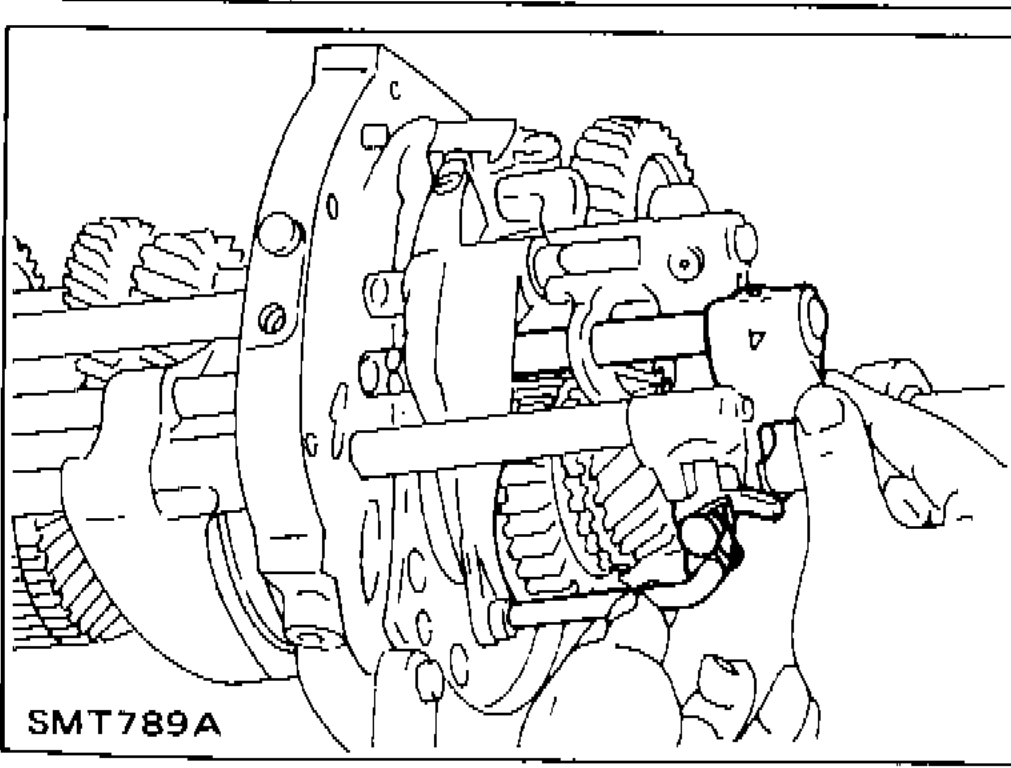

    Draw out 3rd-4th fork rod.
    Drawing out 3rd-4th fork rod from transmission
    SMT789A
  6. 6

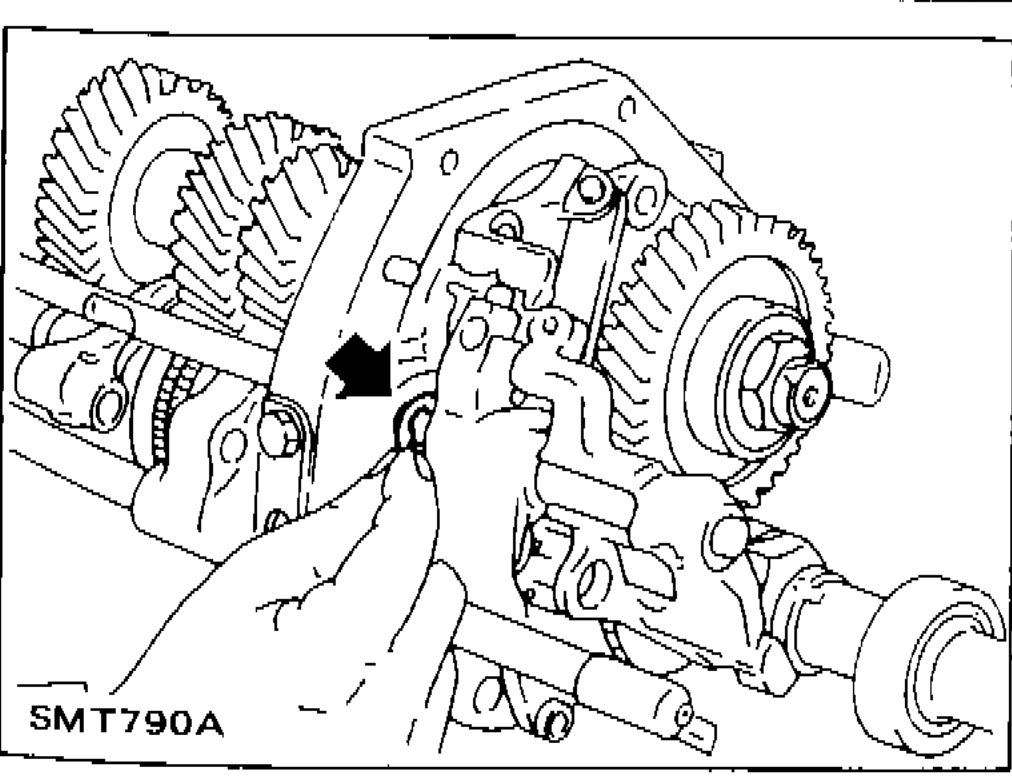

    Remove E-ring from O.D. and reverse fork rod.
    Removing E-ring from O.D. and reverse fork rod
    SMT790A
