ASSEMBLY — Gear Components

MT-17prose procedure
Continued from MT-16

Gear Components

Gear Components Assembly

  1. 1

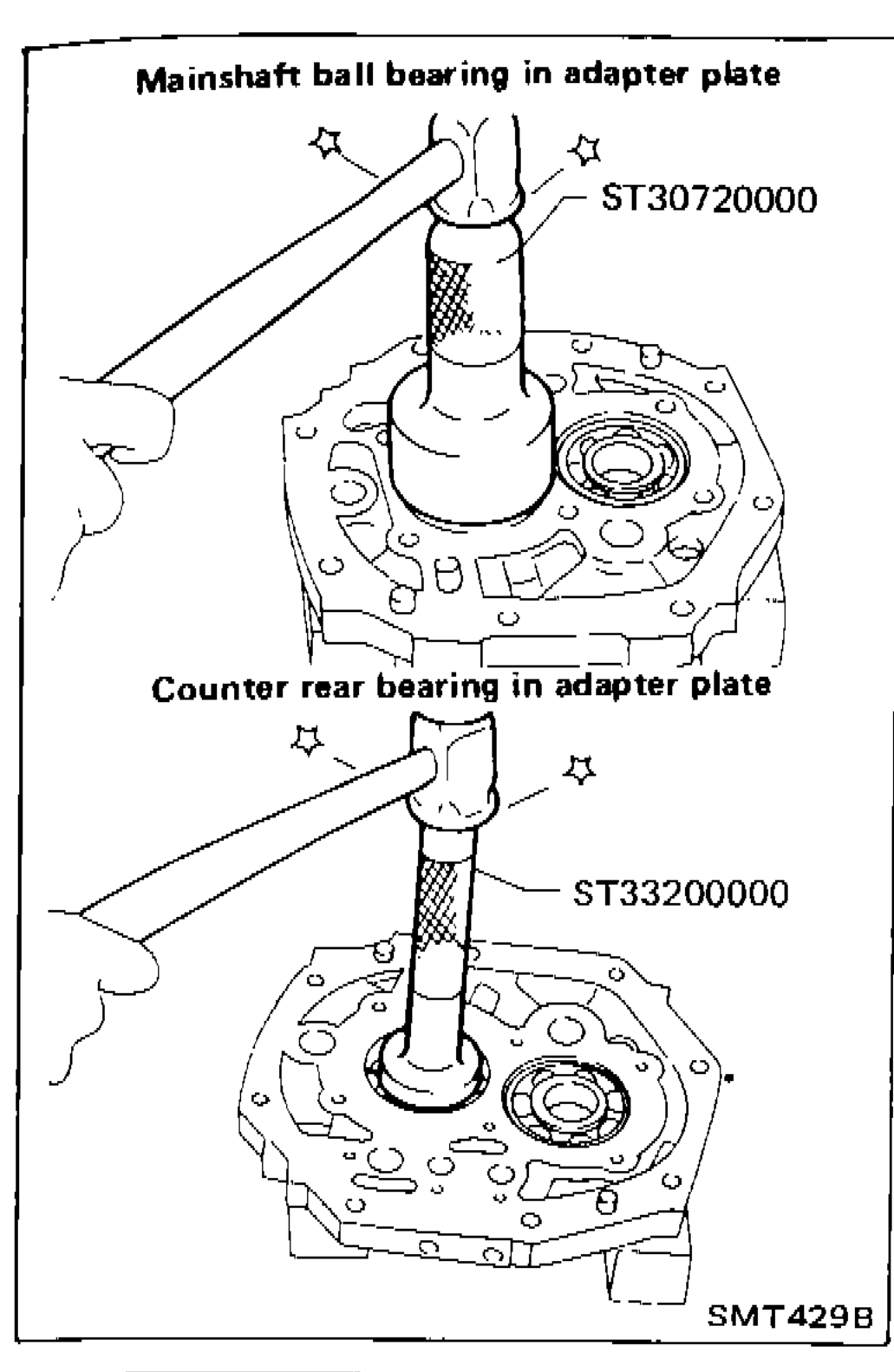

    Install bearings into case components.
    Two-panel illustration showing mainshaft ball bearing being installed into adapter plate using tool ST30720000 (top), and counter rear bearing being installed into adapter plate using tool ST33200000 (bottom).
    SMT429B
  2. 2
    Assemble adapter plate parts.

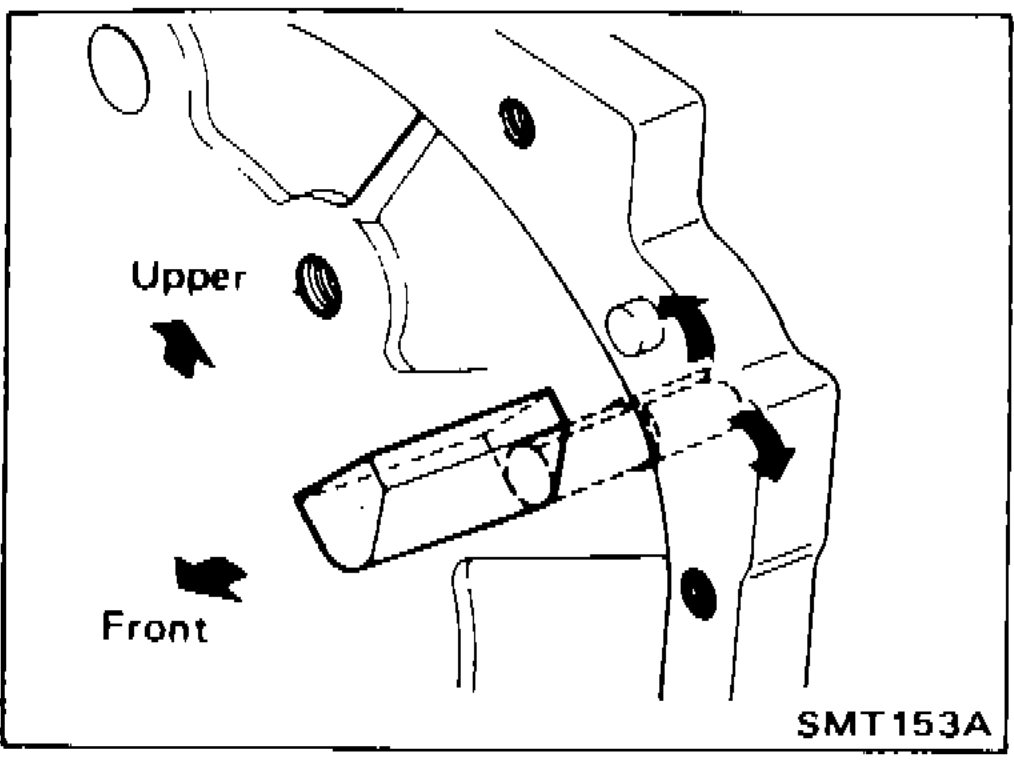

    1. Install oil gutter on adapter plate and expand on rear side.
    2. Install bearing retainer.

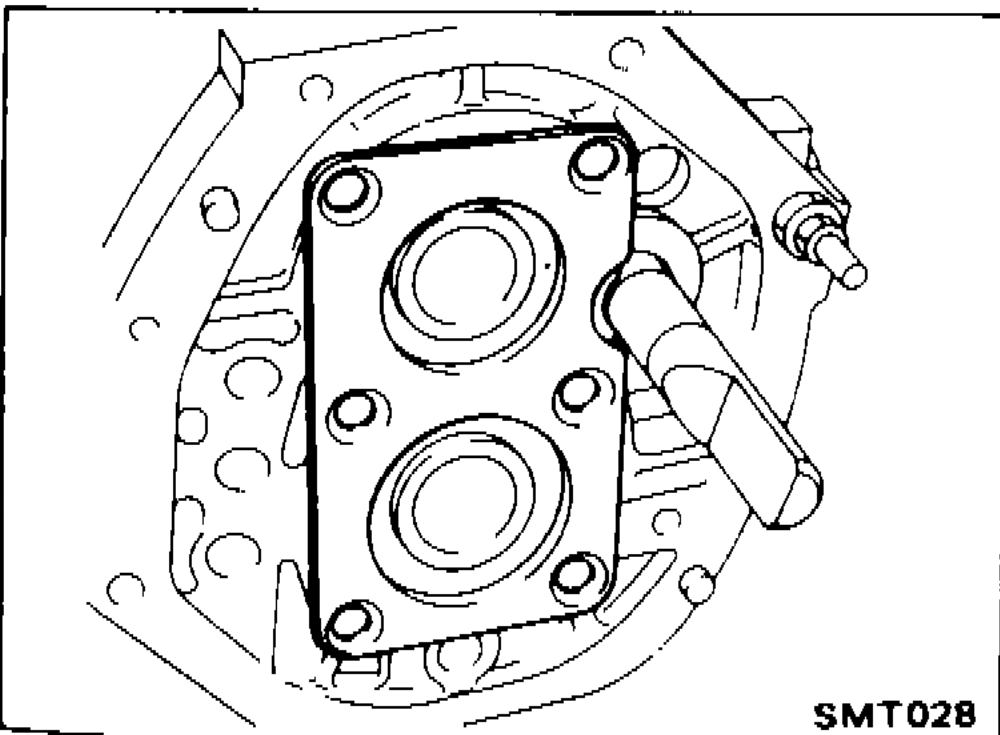

    3. Insert reverse shaft, then install bearing retainer.
      Photograph showing bearing retainer installed on adapter plate with reverse shaft inserted.
      SMT028

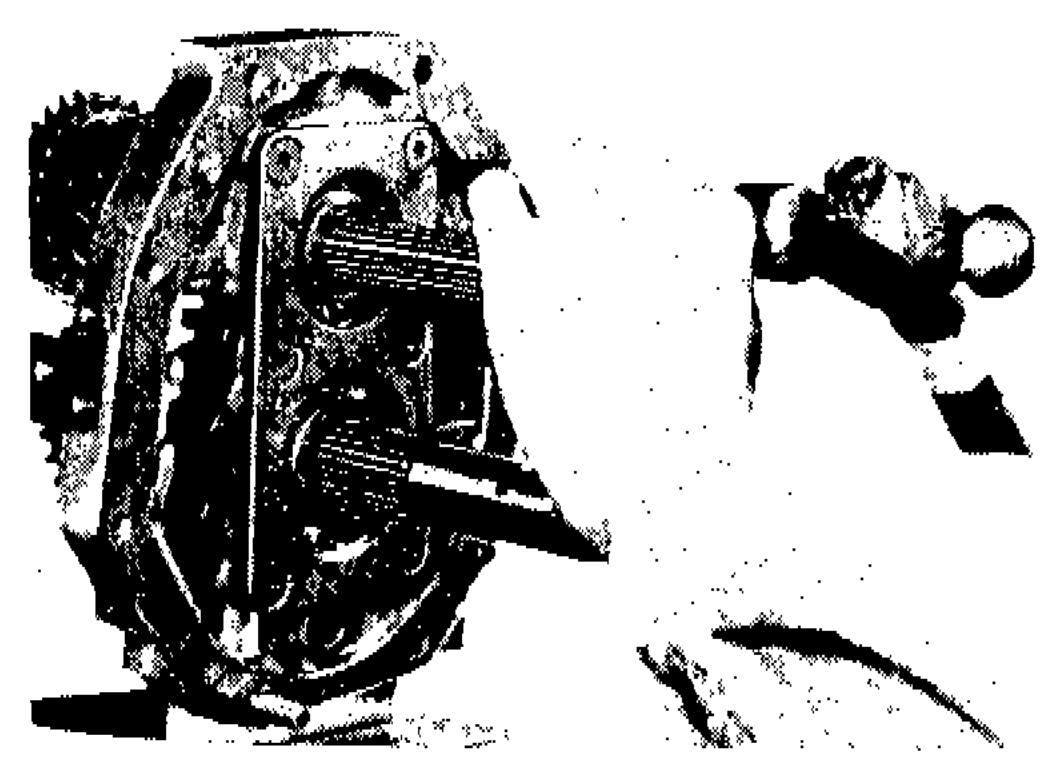

    4. Tighten each screw, then stake each at two points.
      Photograph showing staking of bearing retainer screws at two points on the adapter plate assembly.
    Illustration showing oil gutter installation on adapter plate, with Upper and Front orientation callouts.
    SMT153A
