DISASSEMBLY — Gear Components (Cont'd)
MT-13prose procedureGear Components (Cont'd)

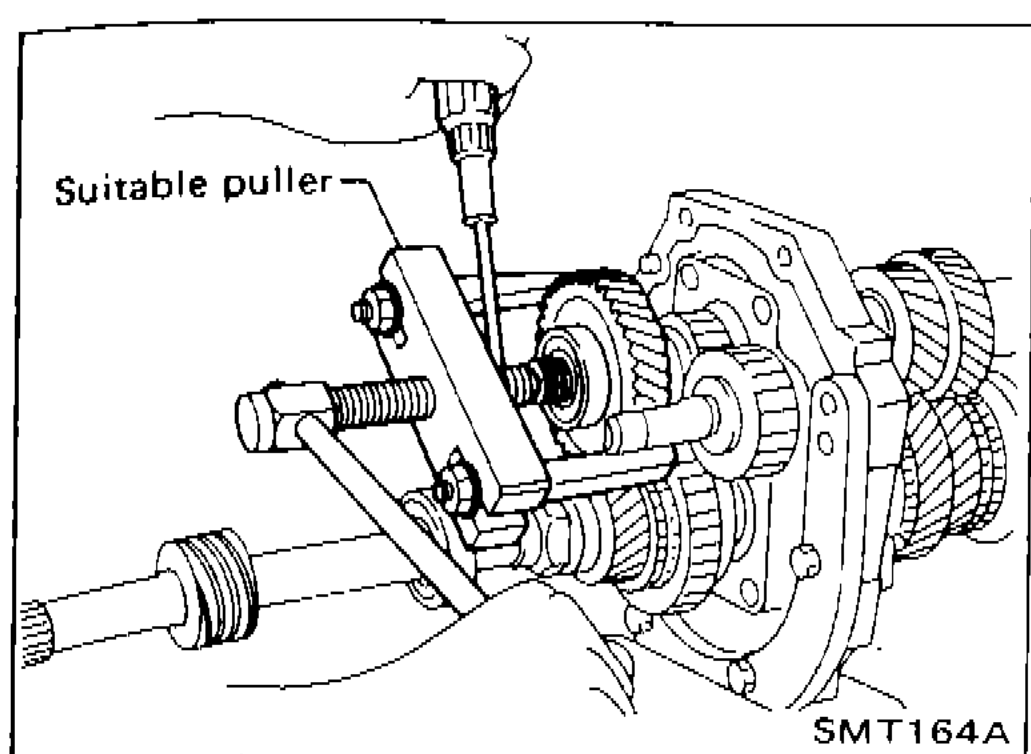

- bPull out O.D. counter gear with bearing with suitable puller.
SMT164A - cDraw out reverse counter gear and spacer.
- dRemove snap rings from reverse idler shaft and draw out reverse idler gear, thrust washers and reverse idler gear bearing.
- eRemove speedometer drive gear and steel ball.

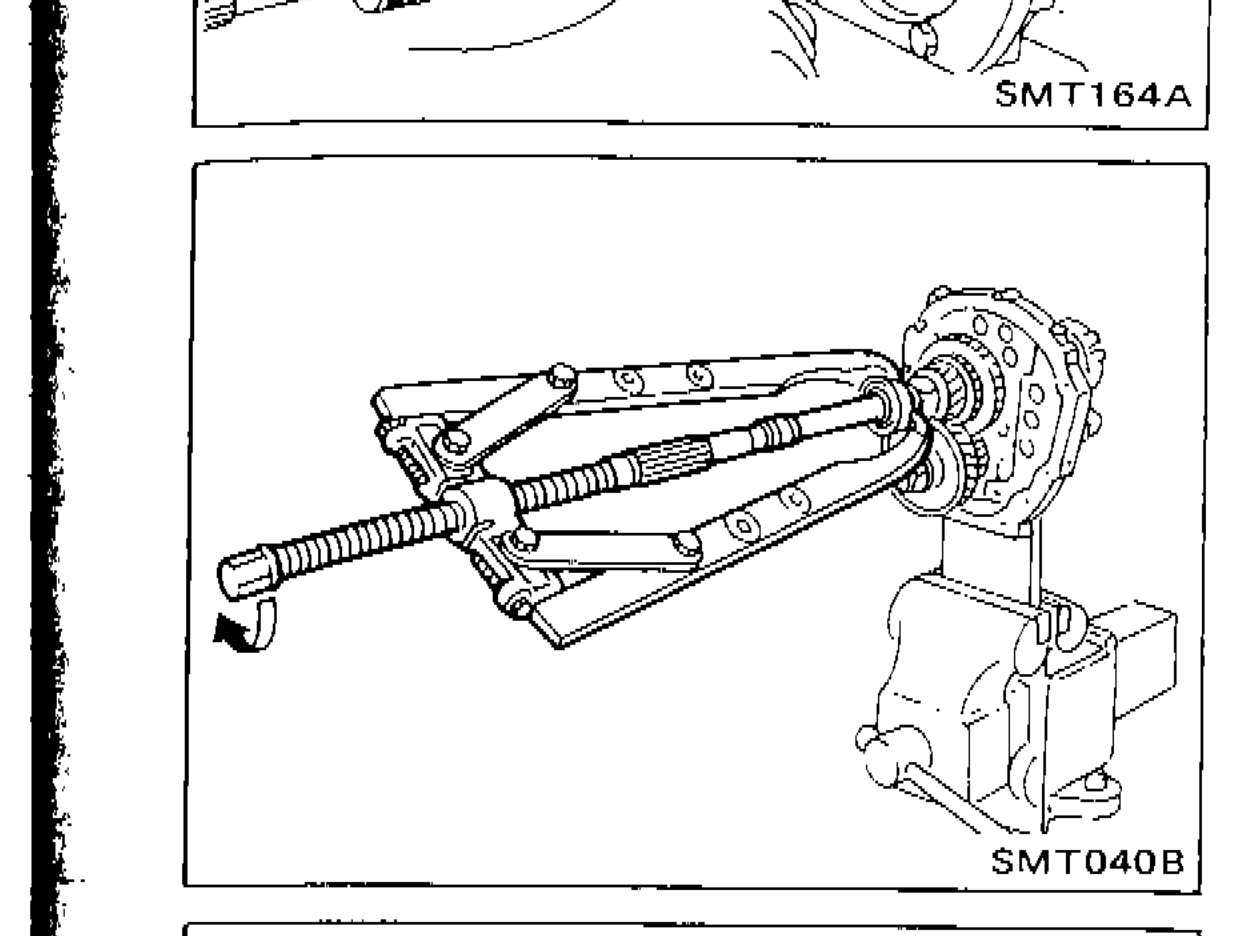

- fRemove snap ring and pull out overdrive mainshaft bearing, then remove snap ring.
SMT040B - gRemove mainshaft nut.
- hRemove steel roller and washer.
- iRemove roller bearing and washer.
- jRemove O.D. main gear, needle bearing and baulk ring (O.D.).
- kRemove O.D. coupling sleeve, shifting inserts and shifting insert springs.

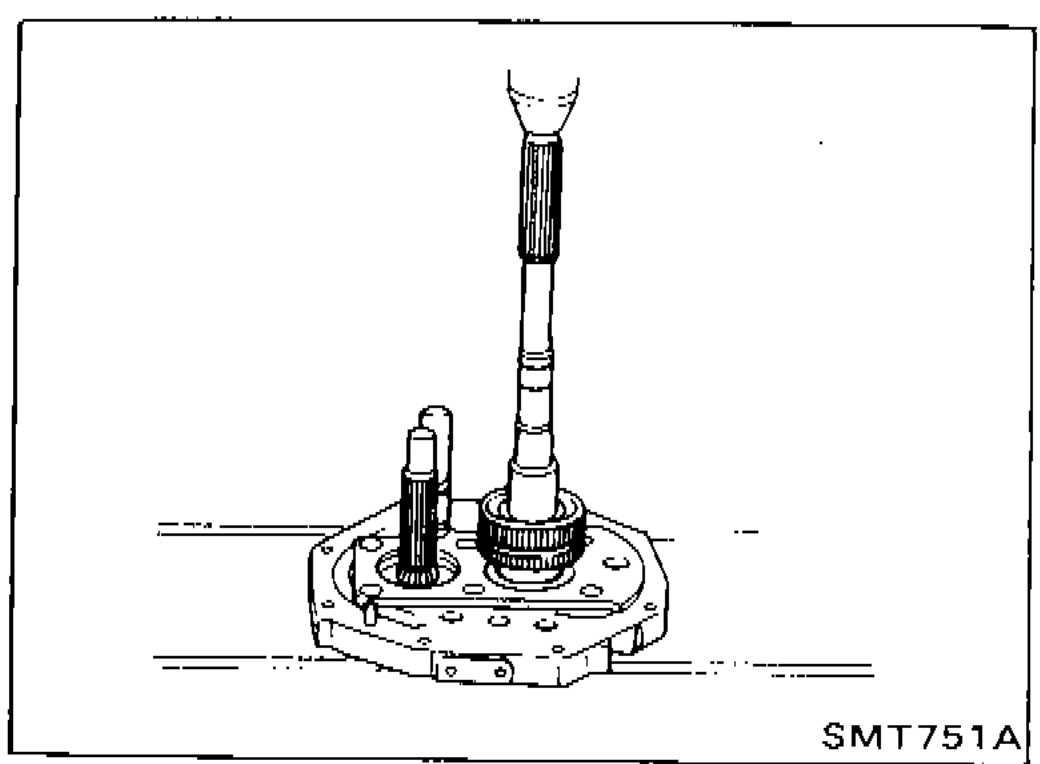

- lPress out mainshaft and counter gear alternately.Make sure to alternate pressing of mainshaft and counter gear so as not to allow the front surface of one to contact the rear surface of the other.
SMT751A
IMPORTANT
Make sure to alternate pressing of mainshaft and counter gear so as not to allow the front surface of one to contact the rear surface of the other.
Remove front side components on mainshaft
- 6Remove front side components on mainshaft.

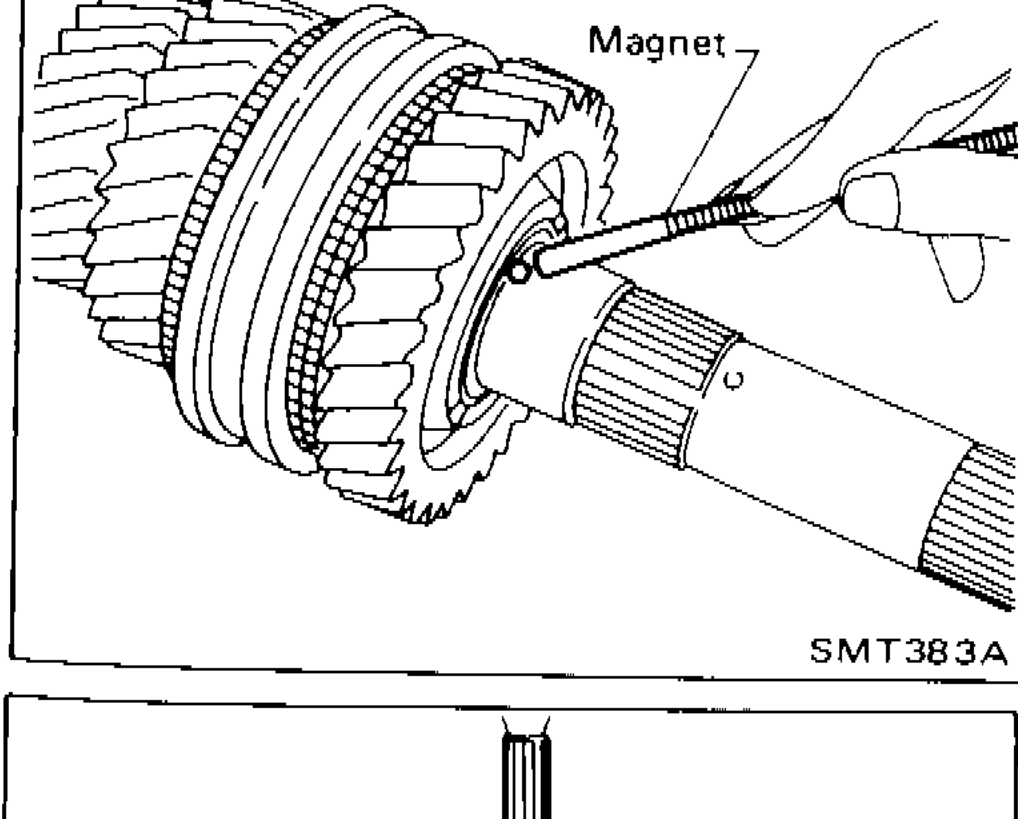

- 6aRemove 1st gear washer and steel ball.
SMT383A - 6bRemove 1st main gear and 1st gear needle bearing.

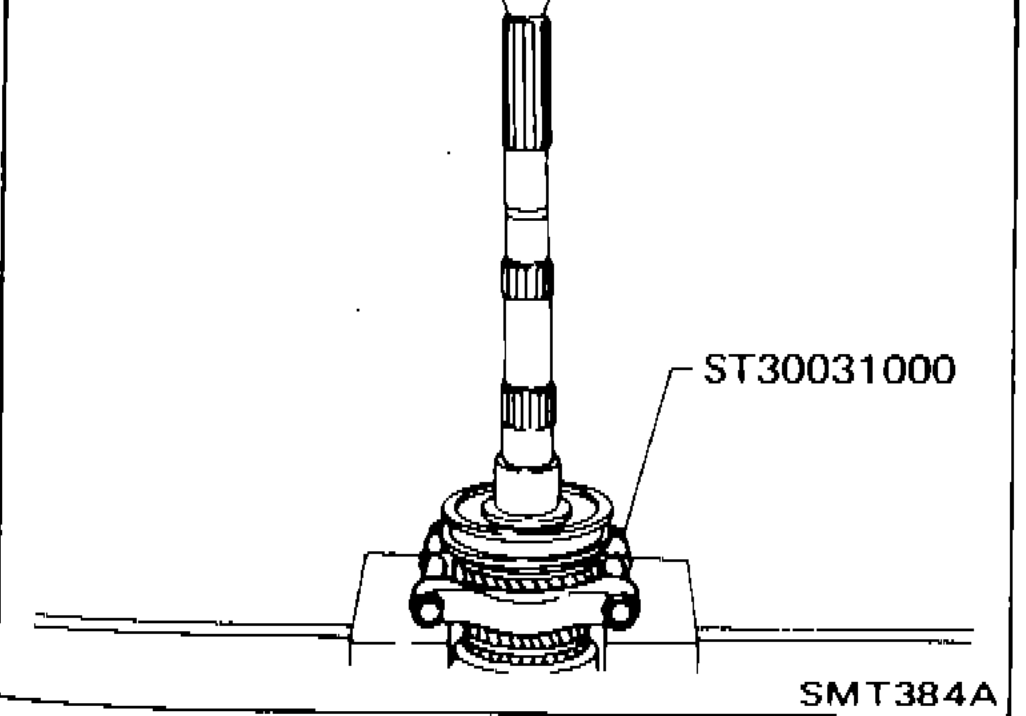

- 6cPress out 2nd main gear together with 1st gear bushing and 1st & 2nd synchronizer assembly.
SMT384A - 6dRemove mainshaft front snap ring.
