DISASSEMBLY — Gear Components (Cont'd)

MT-14prose procedure
Continued from MT-13

Gear Components (Cont'd)

  1. e
    Press out 3rd main gear together with 3rd & 4th synchronizer assembly and 3rd gear needle bearing.

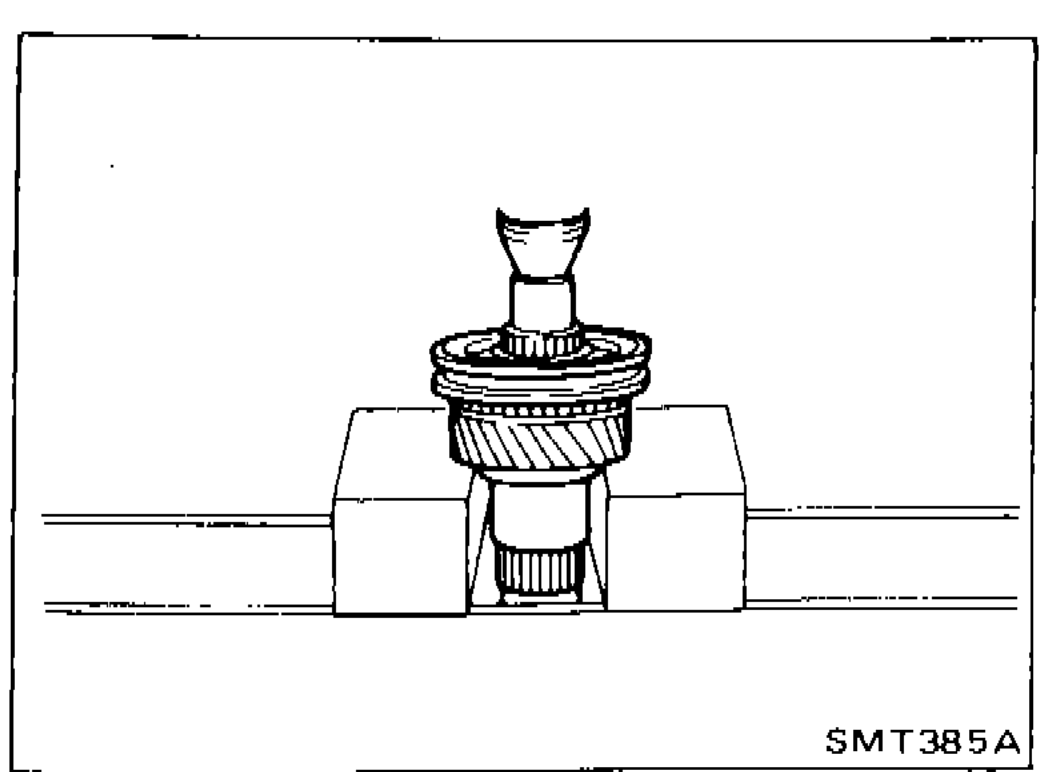

    Press operation showing 3rd main gear being pressed out together with 3rd & 4th synchronizer assembly and 3rd gear needle bearing using a press and support fixture
    SMT385A
  2. 7
    Remove main drive gear bearing.
  3. 7a
    Remove main drive gear snap ring and spacer.
  4. 7b
    Press out main drive gear bearing.

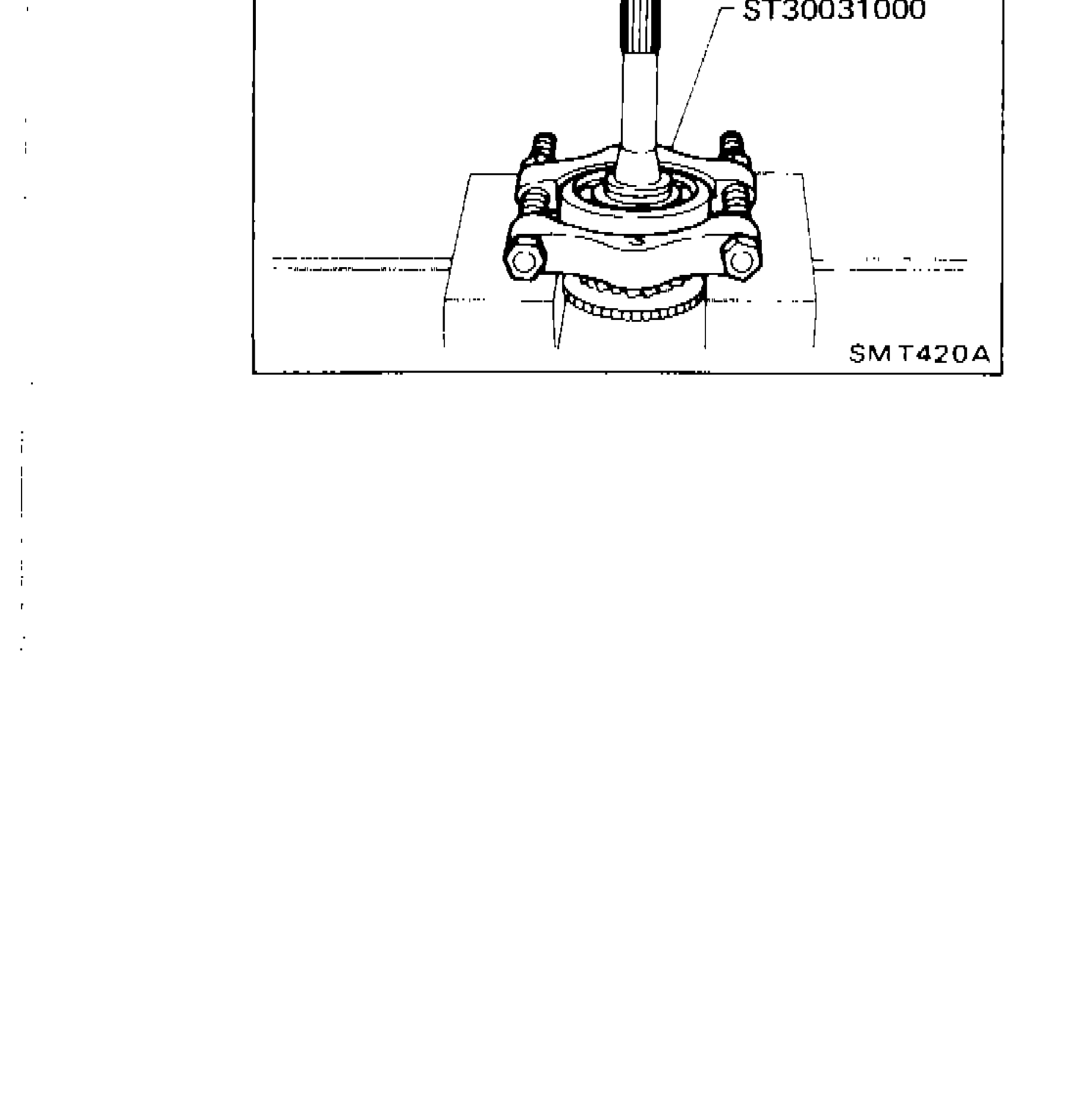

    Press operation showing main drive gear bearing being pressed out using special tool ST30031000 with support fixture
    SMT420A
