DISASSEMBLY — Case Components

MT-10prose procedure
Continued from MT-9

Case Components

  1. 1
    Remove rear extension.
    1. Remove control housing, check ball, return spring plug, select check plunger and return springs.

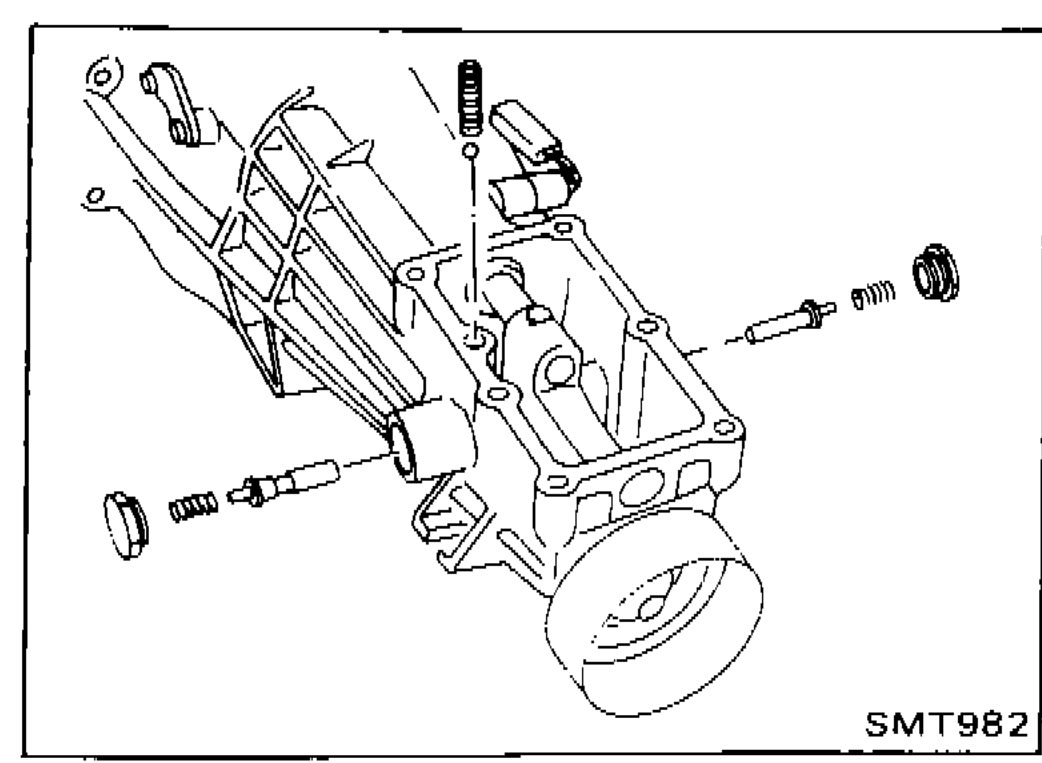

      Transmission assembly showing rear extension and control housing components
      SMT982
    2. Remove rear extension by lightly tapping it.

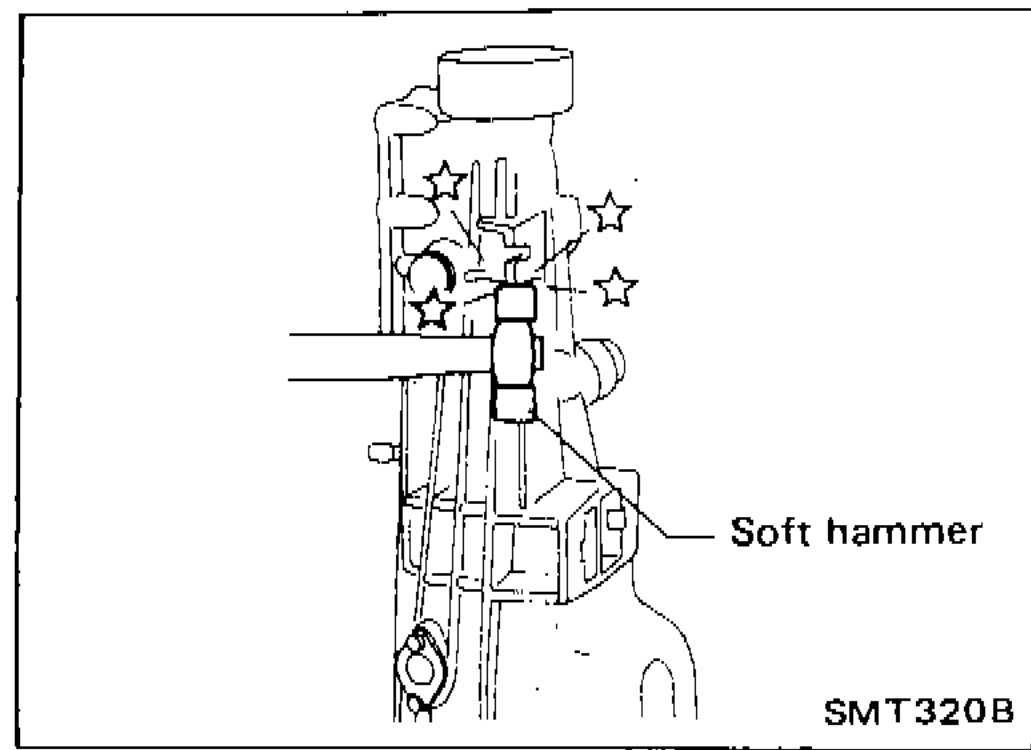

      Removing rear extension by lightly tapping with a soft hammer
      SMT320B
  2. 2
    Remove front cover, gasket, shim of countershaft front bearing, and snap ring of main drive gear ball bearing.

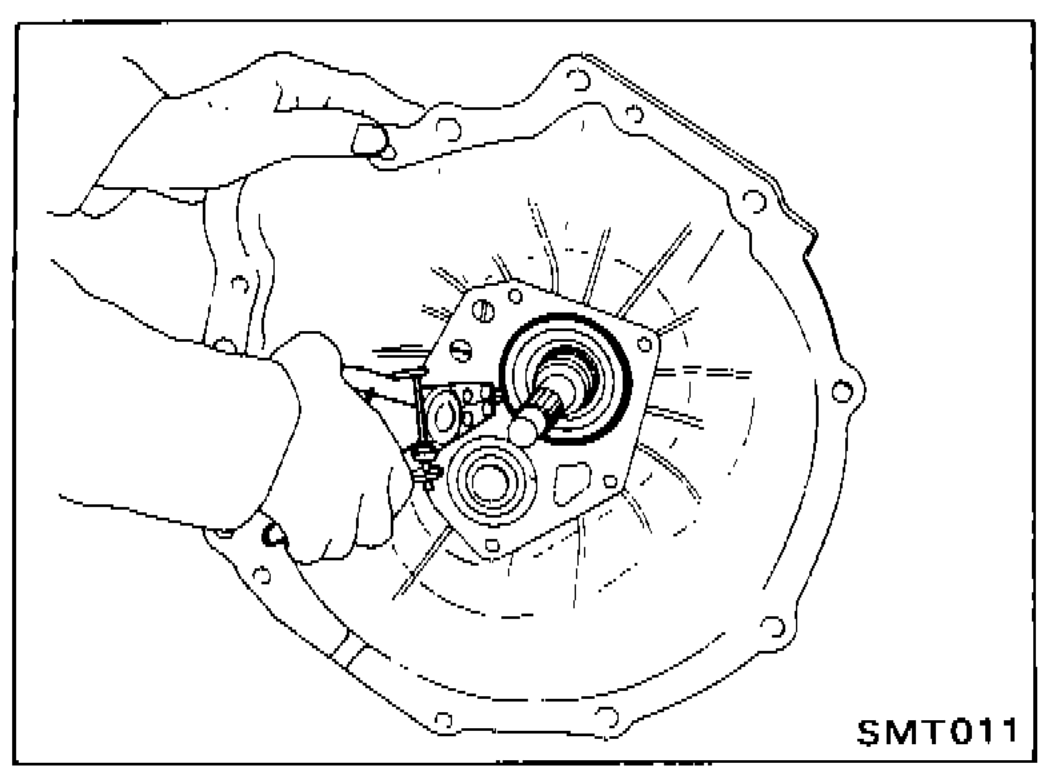

    Removing front cover, gasket, shim of countershaft front bearing, and snap ring of main drive gear ball bearing
    SMT011
  3. 3
    Remove transmission case by tapping lightly.

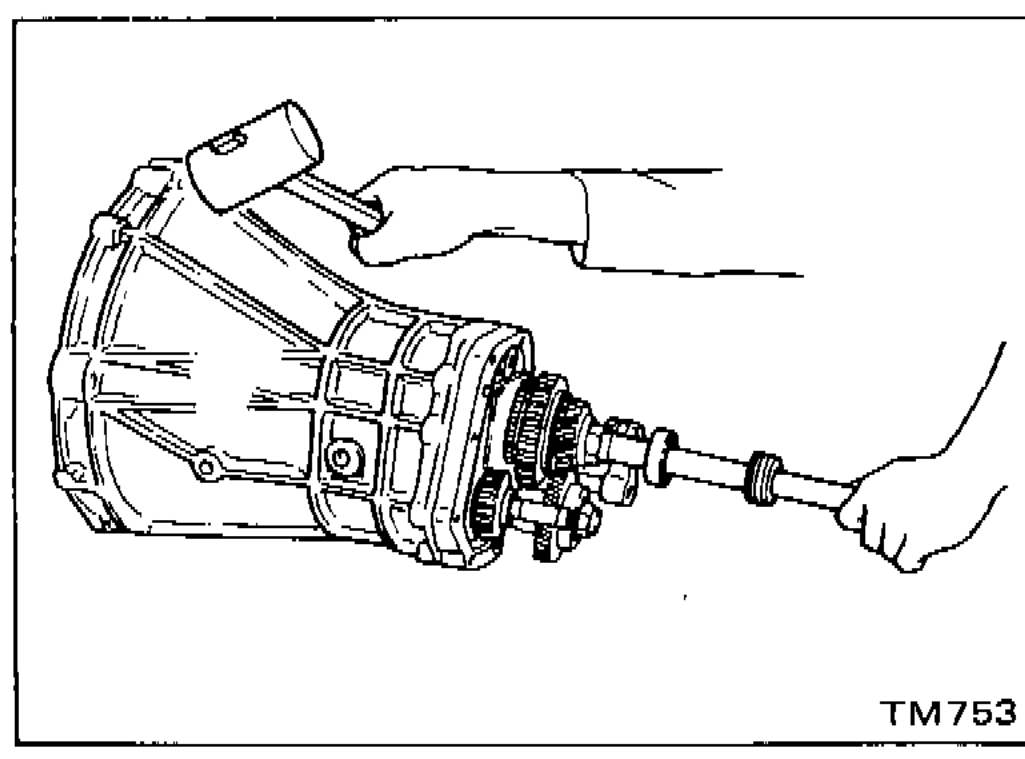

    Removing transmission case by tapping lightly
    TM753
  4. 4
    Remove front cover oil seal.

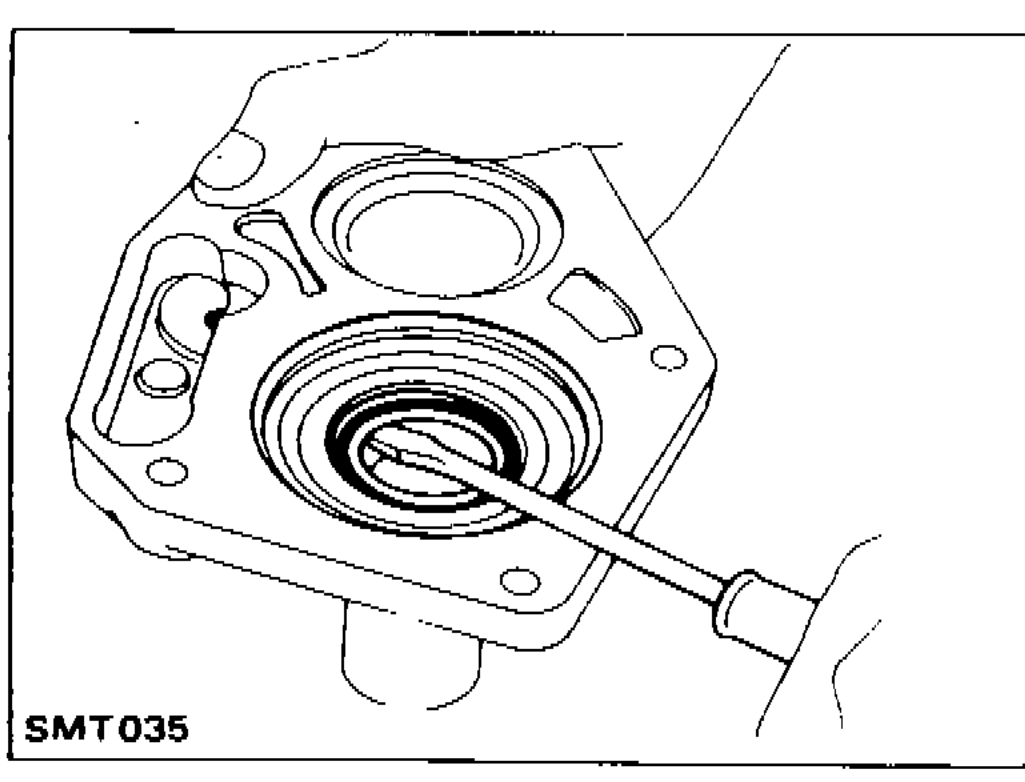

    Removing front cover oil seal
    SMT035
