REAR AXLE — Drive Shaft — Assembly (Cont'd)

RA-18prose procedure
Continued from RA-17

Assembly (Cont'd)

Final-drive-side assembly (continued)

  1. 7

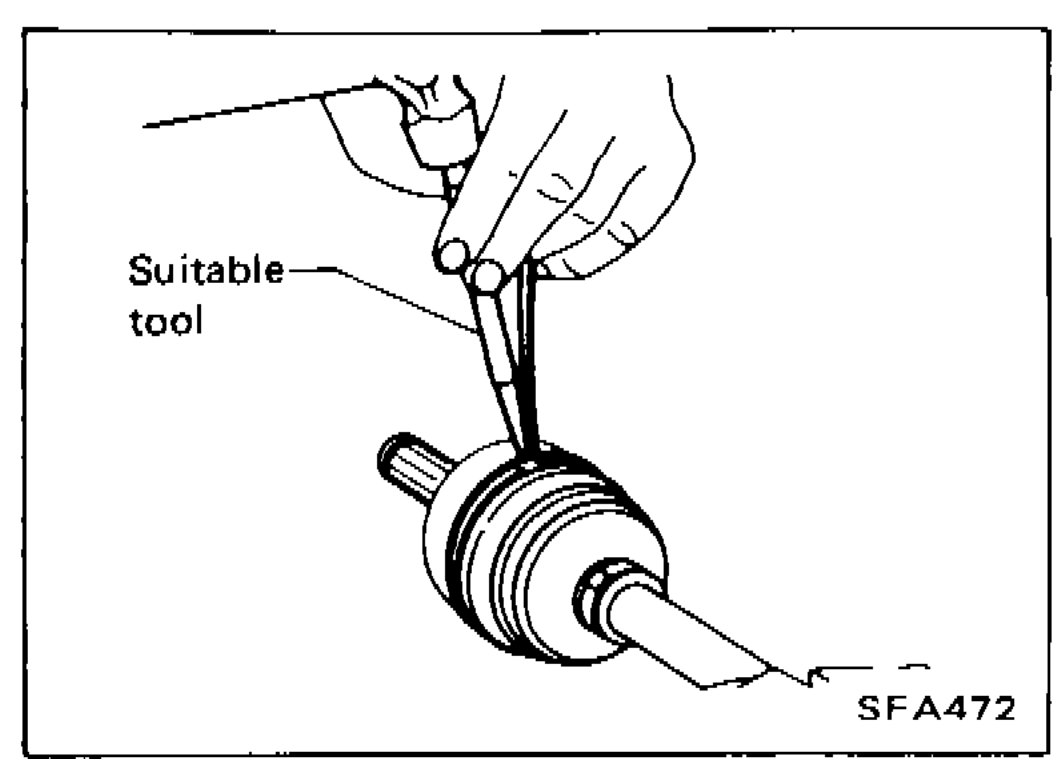

    Lock new larger boot band securely with a suitable tool, then lock new smaller boot band.
    Suitable boot-band tool locking the larger boot band on the drive-shaft assembly.
    SFA472

WHEEL SIDE

Wheel-side assembly

  1. 1

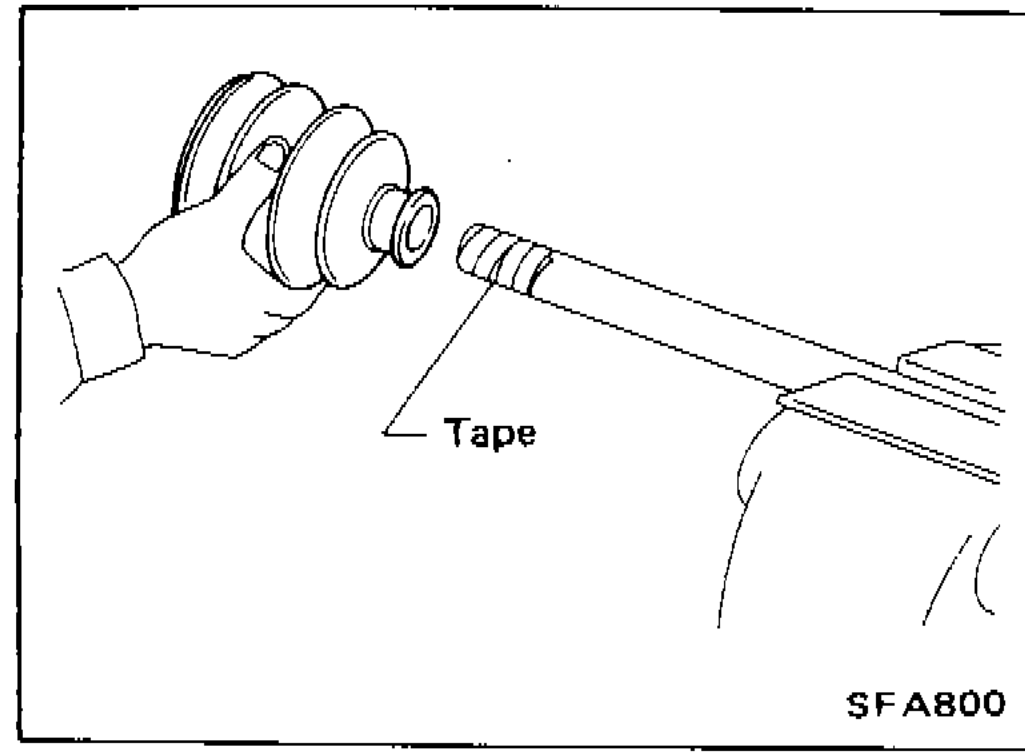

    Install new small boot band and boot on drive shaft.
    Cover drive shaft serration with tape to prevent damage to boot during installation.
    Drive-shaft serration covered with masking tape during boot installation to protect the boot from the splined edge.
    SFA800
  2. 2

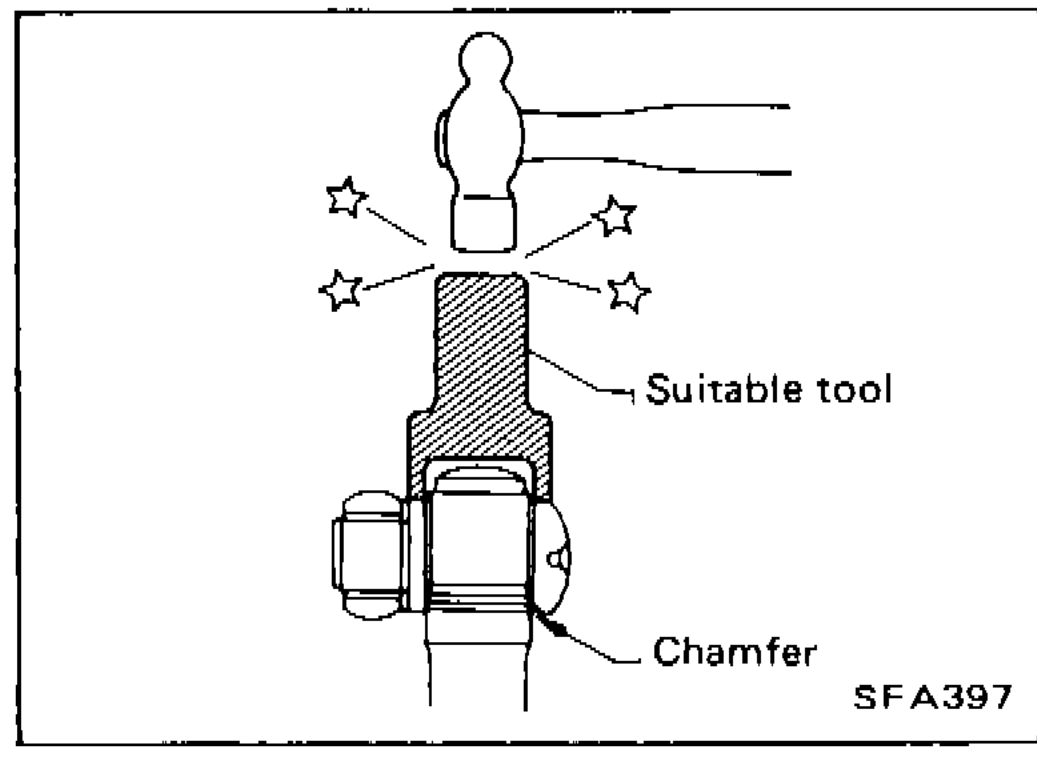

    Install spider assembly securely, making sure marks are properly aligned.
    Press-fit with spider assembly serration chamfer facing shaft.
    Suitable tool press-fitting the wheel-side spider assembly onto the shaft, chamfered serration facing the shaft.
    SFA397
  3. 3
    Install new snap ring.
  4. 4
    Pack drive shaft with specified amount of grease.
  5. 5
    Install slide joint housing, then install new snap ring "A".
  6. 6
    Set boot so that it does not swell and deform when its length is "L₂". Make sure that boot is properly installed on the drive shaft groove.
    Cross-section of the wheel-side drive shaft / boot showing the L₂ length dimension between the boot's clamping points.
    SRA125A
  7. 7

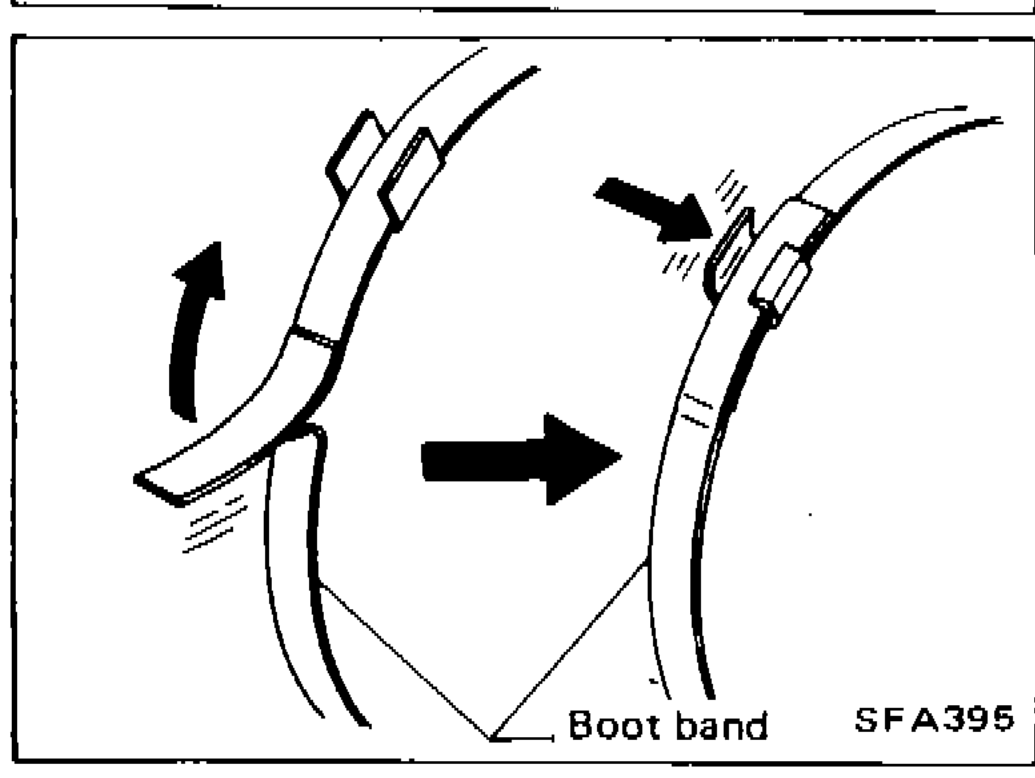

    Lock new larger and smaller boot bands securely with a suitable tool.
    Boot-band closing tool securing the wheel-side boot band.
    SFA395
Specified amount of grease (wheel side)Step 4.
145 - 155g (5.11 - 5.47 oz)
Boot installed length L₂Step 6.
110.5 - 112.5mm (4.35 - 4.43 in)
