REAR AXLE — Drive Shaft — Disassembly

RA-14parts diagram
Continued from RA-13

Disassembly

FINAL DRIVE SIDE

Final-drive-side disassembly

  1. 1

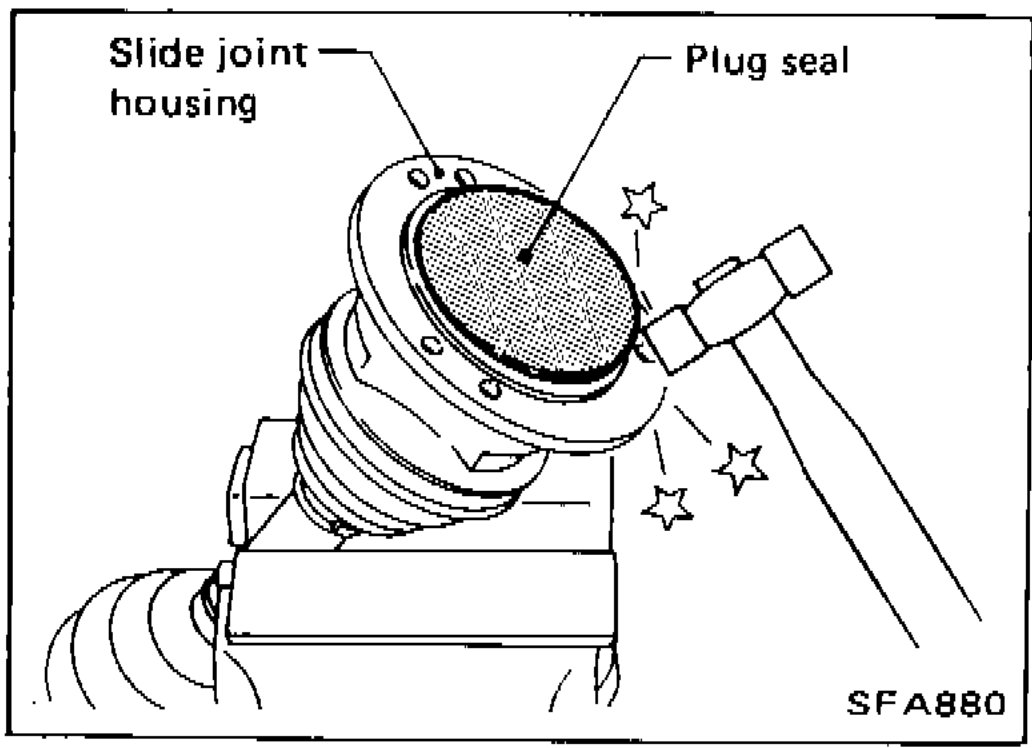

    Remove plug seal from slide joint housing by lightly tapping around slide joint housing.
    Hammer/screwdriver tapping around the slide-joint housing to remove the plug seal; sparkle marks indicate the points being struck.
    SFA880
  2. 2
    Remove boot bands.
  3. 3

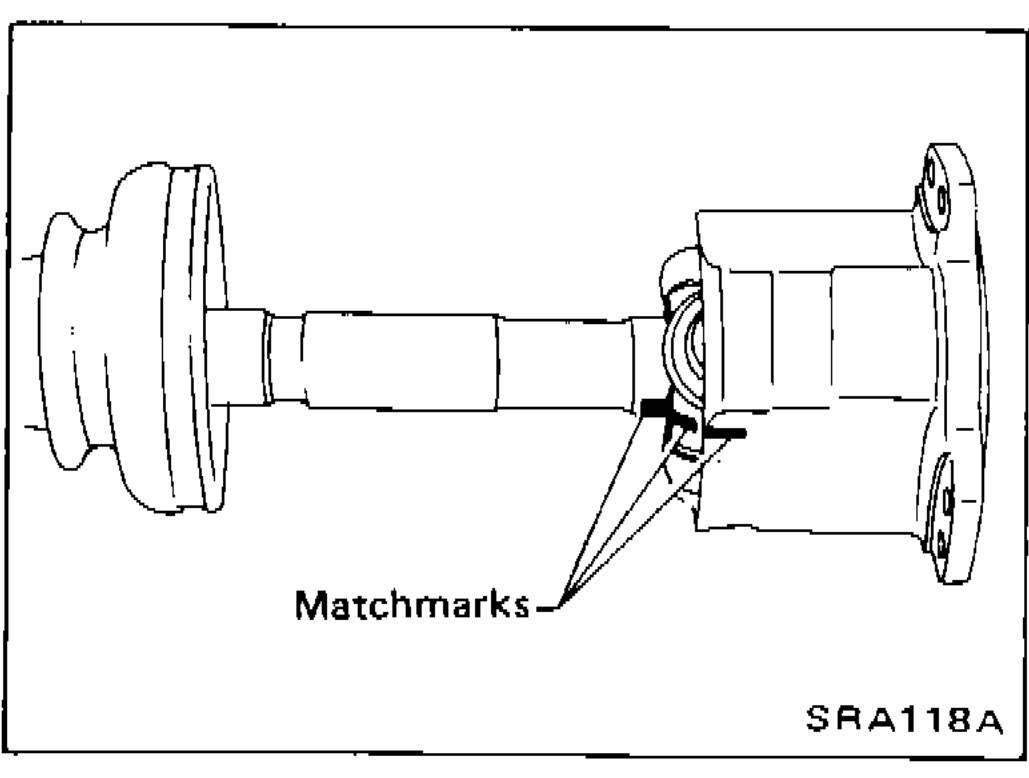

    Put matchmarks on slide joint housing and drive shaft before separating joint assembly.
    Drive-shaft and slide-joint housing showing matchmark scribing locations to preserve assembly orientation before separating the joint.
    SRA118A
  4. 4
    Put matchmarks on spider assembly and drive shaft.
