ENGINE LUBRICATION SYSTEM

LC-4prose procedure

Continued from LC-3

Oil Pressure Check (Cont'd)

3
Install pressure gauge.

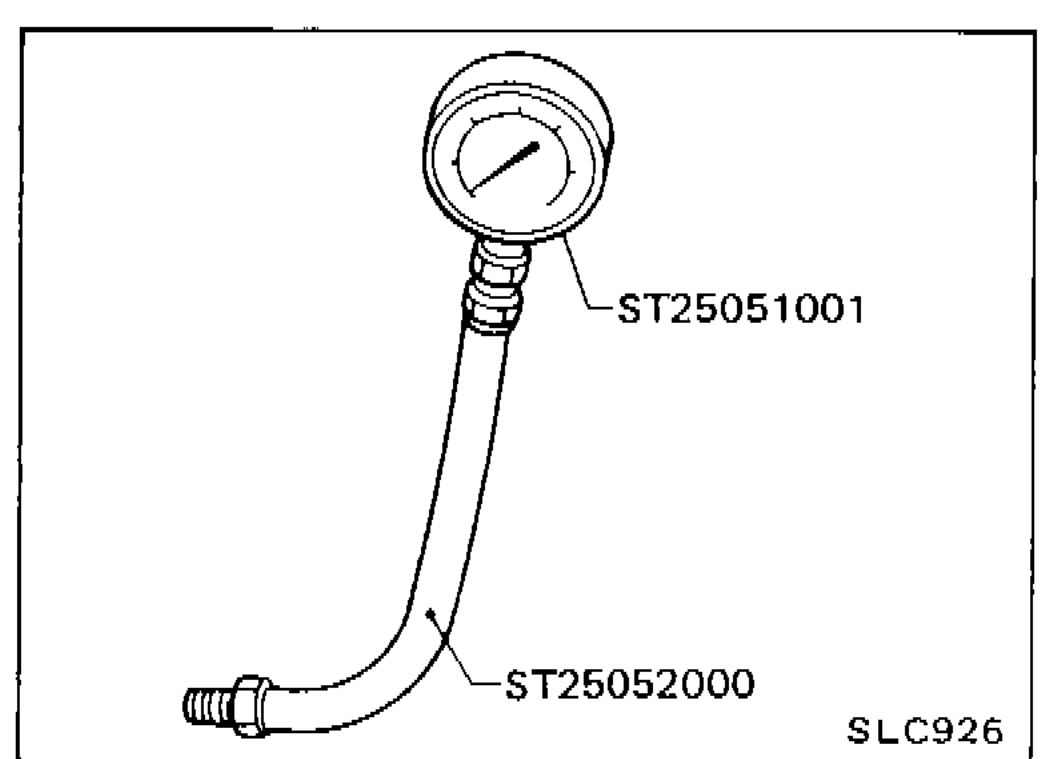

SLC926
4
Start engine and warm it up to normal operating temperature.
5
Check oil pressure with engine running under no-load.

Oil Pressure Specifications

Engine rpm	Approximate discharge pressure kPa (bar, kg/cm², psi)
Idle speed	More than 78 (0.78, 0.8, 11)
3,000	353 - 412 (3.53 - 4.12, 3.6 - 4.2, 51 - 60)

Idle speed

Approximate discharge pressure kPa (bar, kg/cm², psi)More than 78 (0.78, 0.8, 11)

3,000

Approximate discharge pressure kPa (bar, kg/cm², psi)353 - 412 (3.53 - 4.12, 3.6 - 4.2, 51 - 60)

IMPORTANT

If difference is extreme, check oil passage and oil pump for oil leaks.

Oil Pressure Switch Installation

6
Install oil pressure switch with sealant.
Use proper liquid sealant.

Specification	Value
Oil pressure switch	10 - 16N·m

Oil pressure switch

10 - 16N·m

Oil Pump

REMOVAL AND INSTALLATION

Oil Pump Removal and Installation

1
Remove drive belts.
2
Remove timing belt covers and timing belt.
3
Remove front stabilizer bar.
SLC200A
4
Loosen front engine mounting nuts. (Do not loosen nuts completely.)
5
Lift up engine slightly using engine slings.
6
Remove oil pan.
7
Remove oil pump assembly with oil strainer.

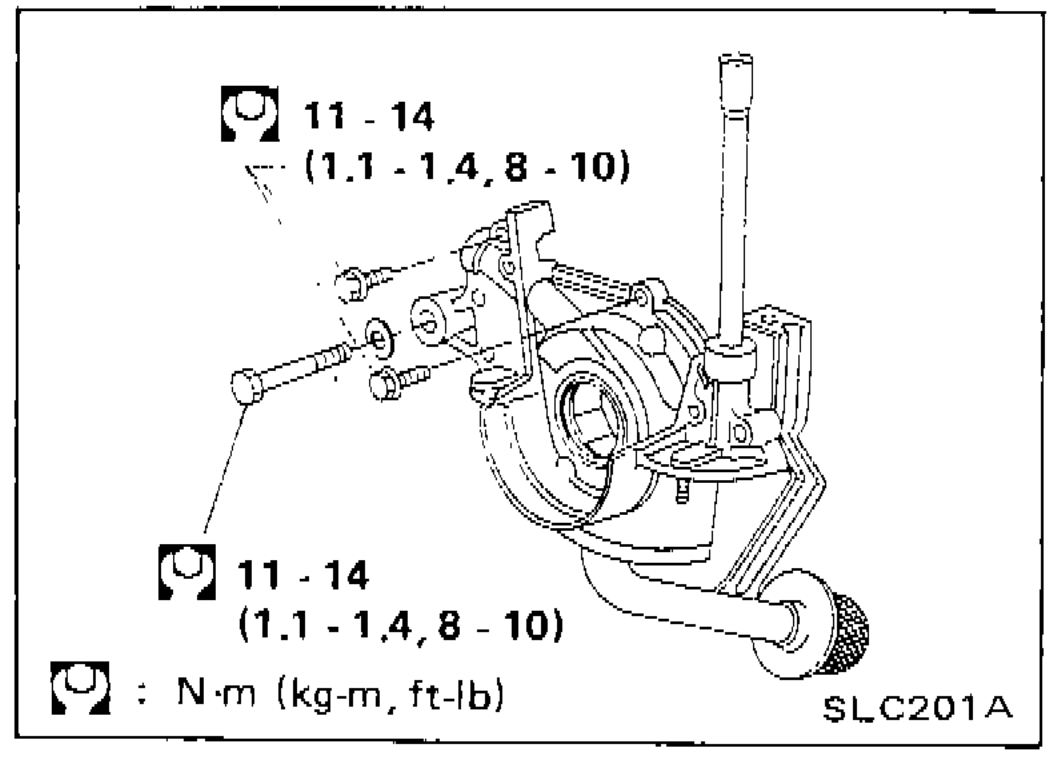

SLC201A
8
Installation is in reverse order of removal.

Specification	Value
Oil pump fastener	11 - 14N·m

Oil pump fastener

11 - 14N·m
