Engine Cooling System — Radiator (Aluminum type)
LC-11parts diagramOil cooler components (oil cooler, O-ring, conical washer, washer, oil cooler securing nut) apply to A/T model only.
Radiator (Aluminum type)
Parts DiagramFig. fig1
| Specification | Value |
|---|---|
| Oil cooler securing nut | 8 - 12N·m |
Oil cooler securing nut
8 - 12N·m
Aluminum radiator can be disassembled by using special procedures and special service tools.
Disassembly

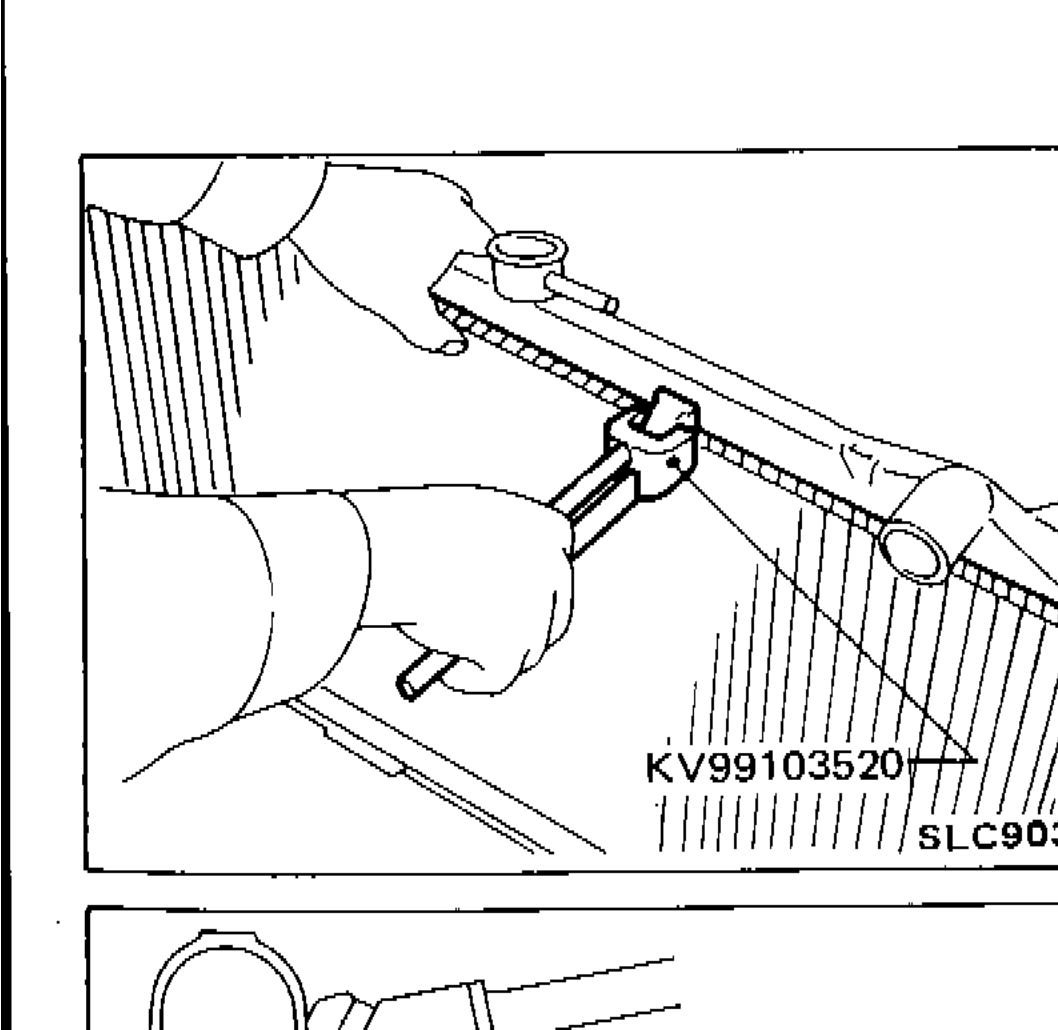

- 1Remove tank with Tool.Grip the crimped edge and bend it upwards so that Tool slips off. Do not bend excessively.
SLC903
IMPORTANT
Grip the crimped edge and bend it upwards so that Tool slips off. Do not bend excessively.
