ENGINE COOLING SYSTEM — Radiator (Aluminum type)(Cont'd)

LC-12prose procedure

Steps 3 (disassembly) and 1 (assembly) for oil cooler apply to A/T model only.

Continued from LC-11

Radiator (Aluminum type)(Cont'd)

Disassembly (Continued)

  1. 1

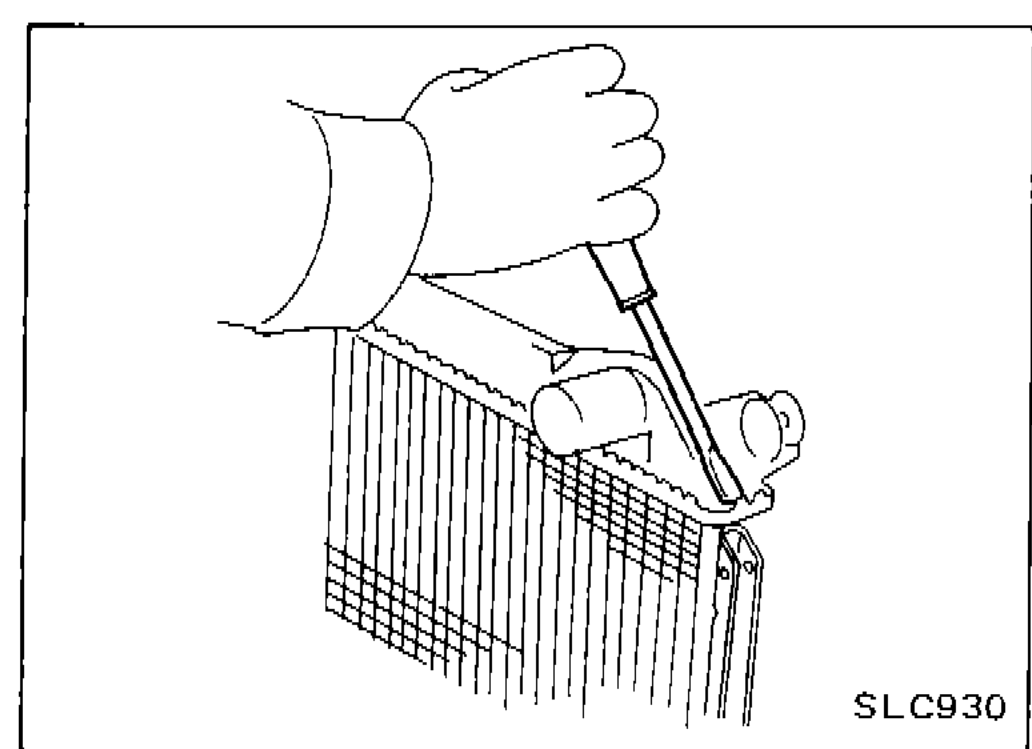

    In areas where Tool cannot be used, use a screwdriver to bend the edge up.
    Be careful not to damage tank.
    Hand using a screwdriver to bend the edge of the radiator tank up
    SLC930
  2. 2

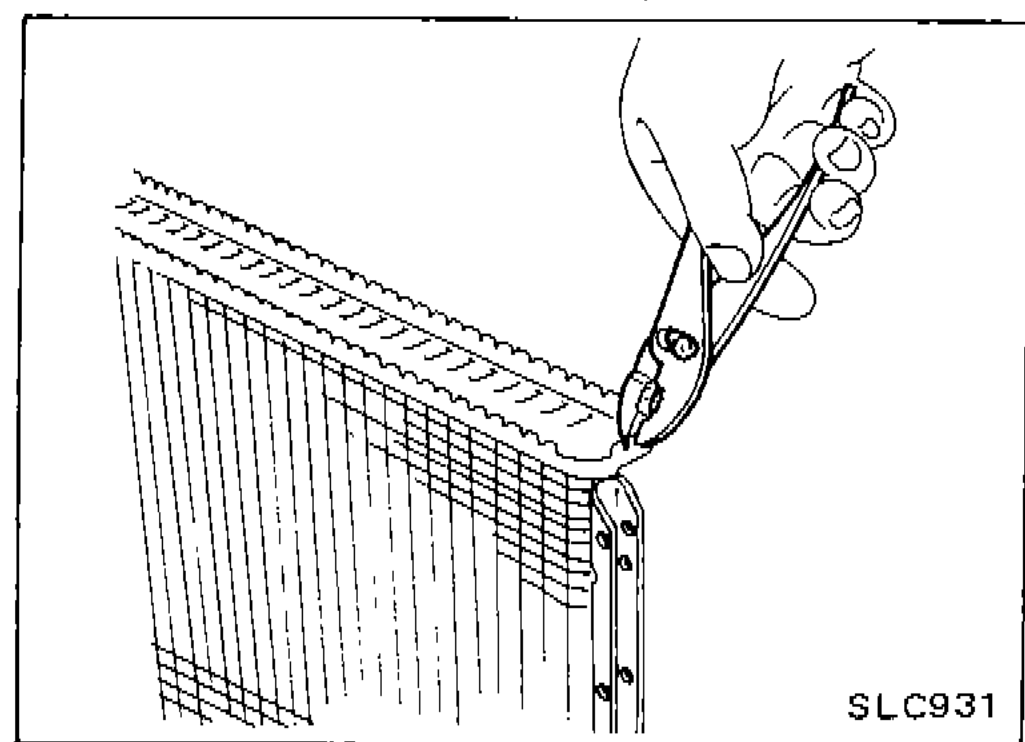

    Make sure the edge stands straight up.
    Hand using a tool to straighten the edge of the radiator tank; edge stands straight up
    SLC931
  3. 3
    Remove oil cooler from tank. (A/T model only)

Assembly

  1. 1
    Install oil cooler. (A/T model only)
    Pay attention to direction of conical washer.
    Exploded diagram of oil cooler assembly showing Oil cooler, O-ring, Washer, Conical washer, Nut, and Lower tank; inset shows correct orientation of conical washer
    SLC894
  2. 2

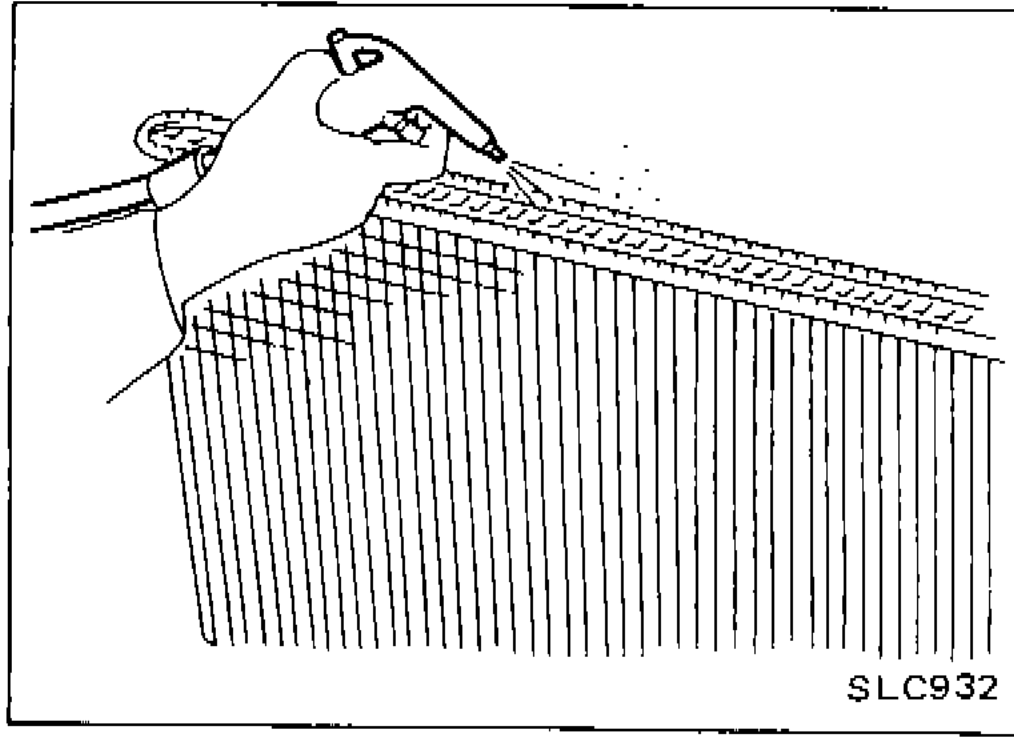

    Clean contact portion of tank.
    Hand cleaning the contact portion of the radiator tank
    SLC932
  3. 3

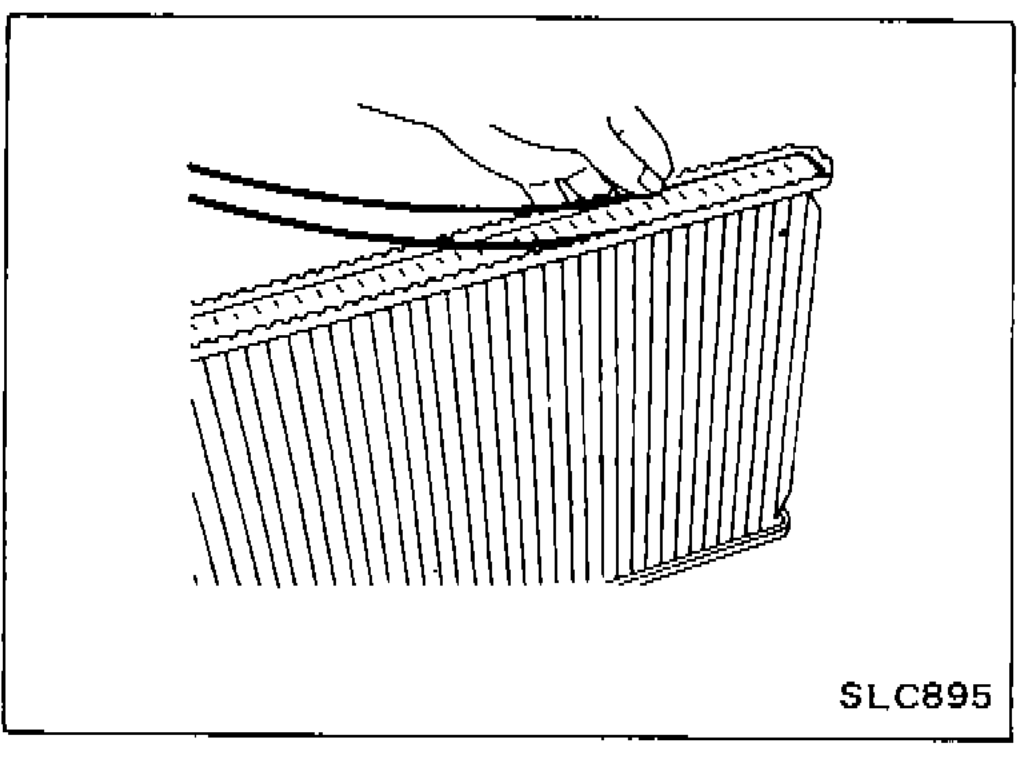

    Install sealing rubber. Push it in with fingers.
    Be careful not to twist sealing rubber.
    Hands pushing sealing rubber into the radiator tank with fingers
    SLC895
Parts DiagramFig. fig3OEM part numbers (Amayama)Approximate
#Part NameNotes
1Oil coolerA/T model only
2O-ringReplace (marked with X)
3Washer—
4Conical washerPay attention to direction; replace (marked with X)
5Nut—
6Lower tank—
