Nissan 200SX S13 silhouetteS13

TIMING BELT

EM-10prose procedure

Removal

  1. 1
    Drain engine coolant from radiator.
    Be careful not to spill coolant on drive belts.
  2. 2
    Remove air duct, upper radiator hose, radiator shroud and under cover.
  3. 3
    Remove the following belts: ● Power steering pump drive belt ● Compressor drive belt ● Alternator drive belt
  4. 4
    Remove water pump pulley, fan and fan coupling.
  5. 5

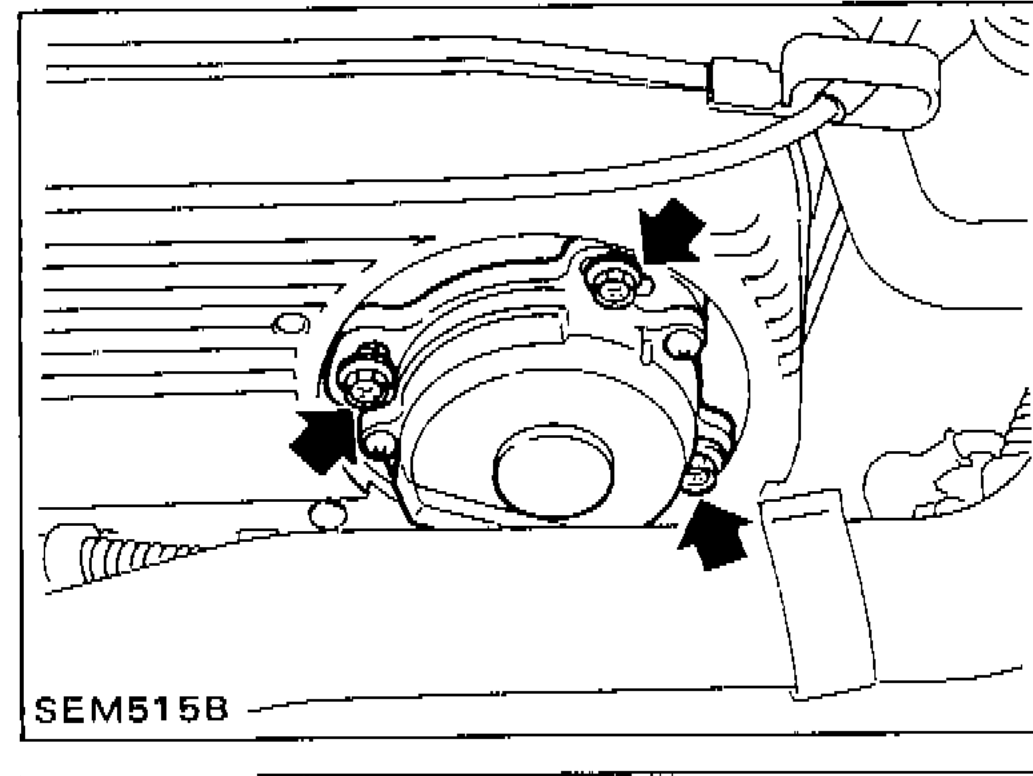

    Remove crank angle sensor.
    Put aligning mark on crank angle sensor and timing belt cover.
    Crank angle sensor location on timing belt cover with alignment mark arrows indicated
    SEM515B
  6. 6

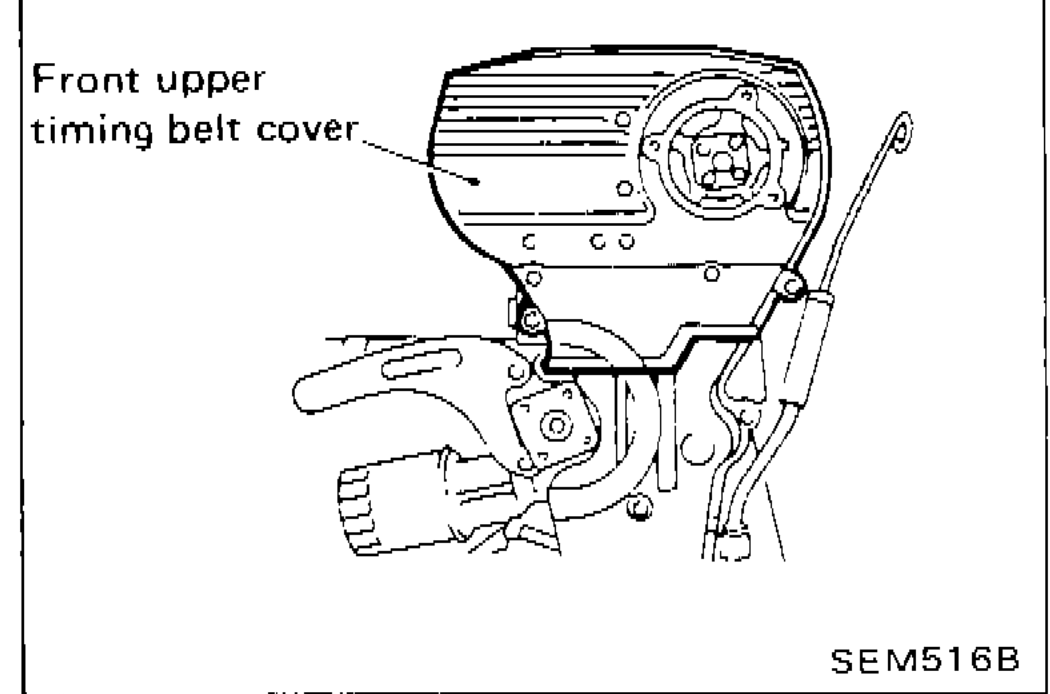

    Remove front upper timing belt cover.
    Front upper timing belt cover location on engine
    SEM516B
  7. 7
    Remove all spark plugs.
  8. 8

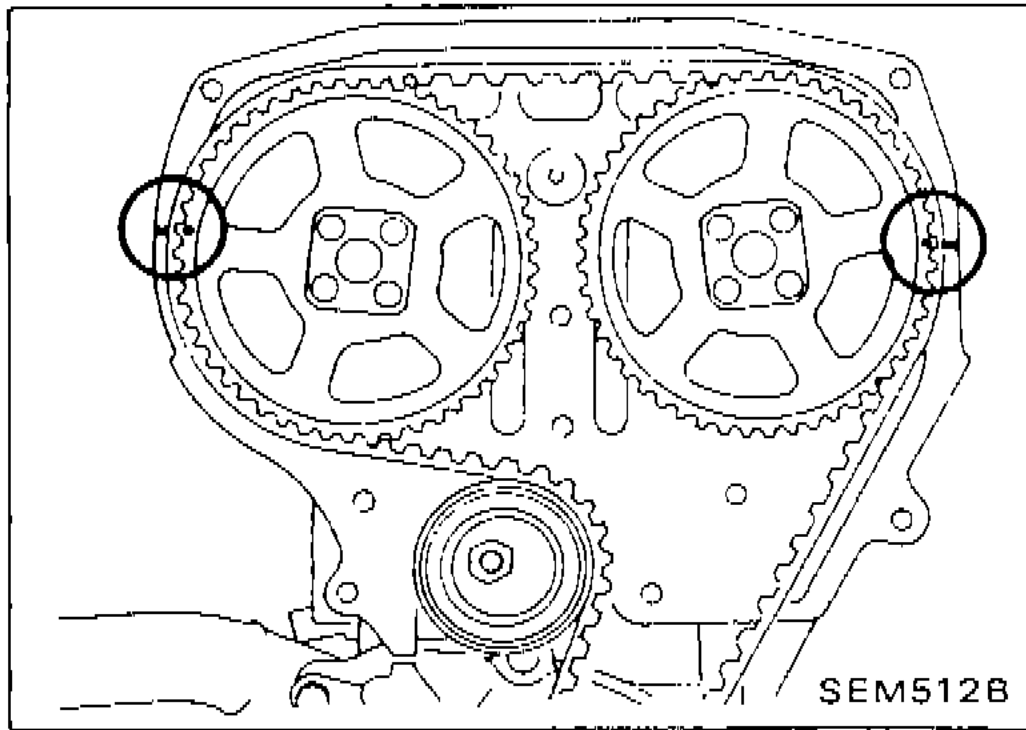

    Set No. 1 piston at T.D.C. on its compression stroke.
    Camshaft sprockets and timing belt with TDC alignment marks visible
    SEM512B
  9. 9
    Remove crankshaft pulley.
  10. 10
    Remove front lower timing belt cover.
  11. 11

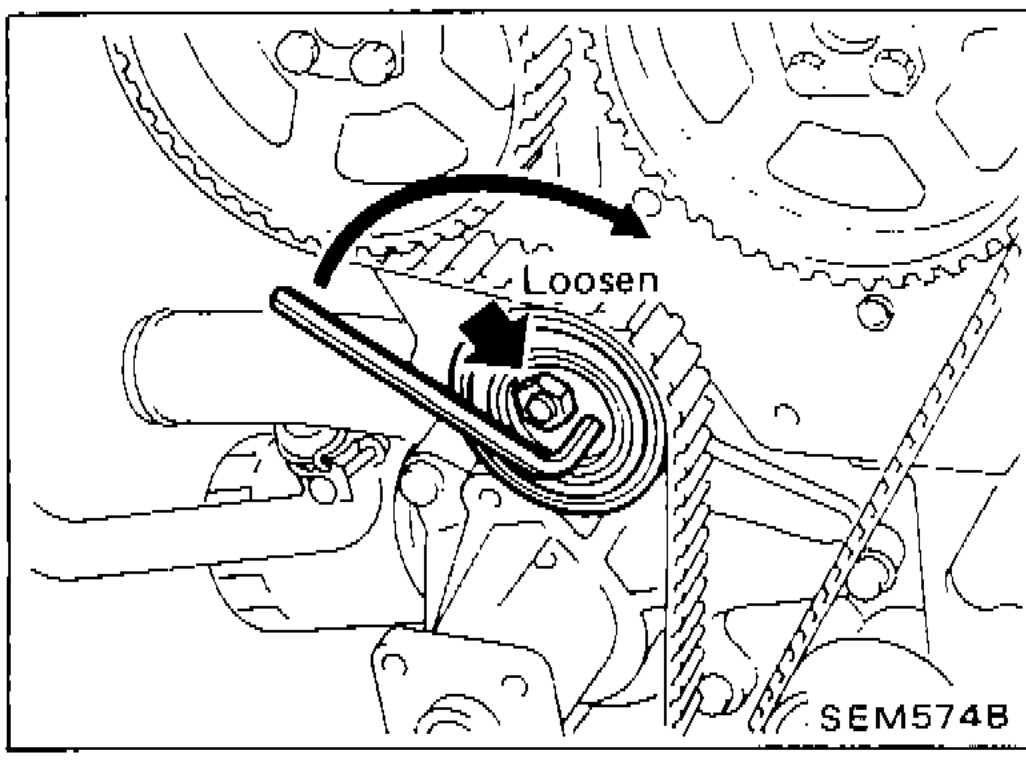

    Loosen timing belt tensioner nut, turn tensioner, then remove timing belt.
    Timing belt tensioner being loosened with tool, arrow indicating direction to turn tensioner to remove timing belt
    SEM574B
