Differential Carrier Disassembly (Cont'd)

PD-13prose procedure
Continued from PD-12

DISASSEMBLY

Differential Carrier (Cont'd)

Differential Carrier Disassembly (Continued)

  1. 3

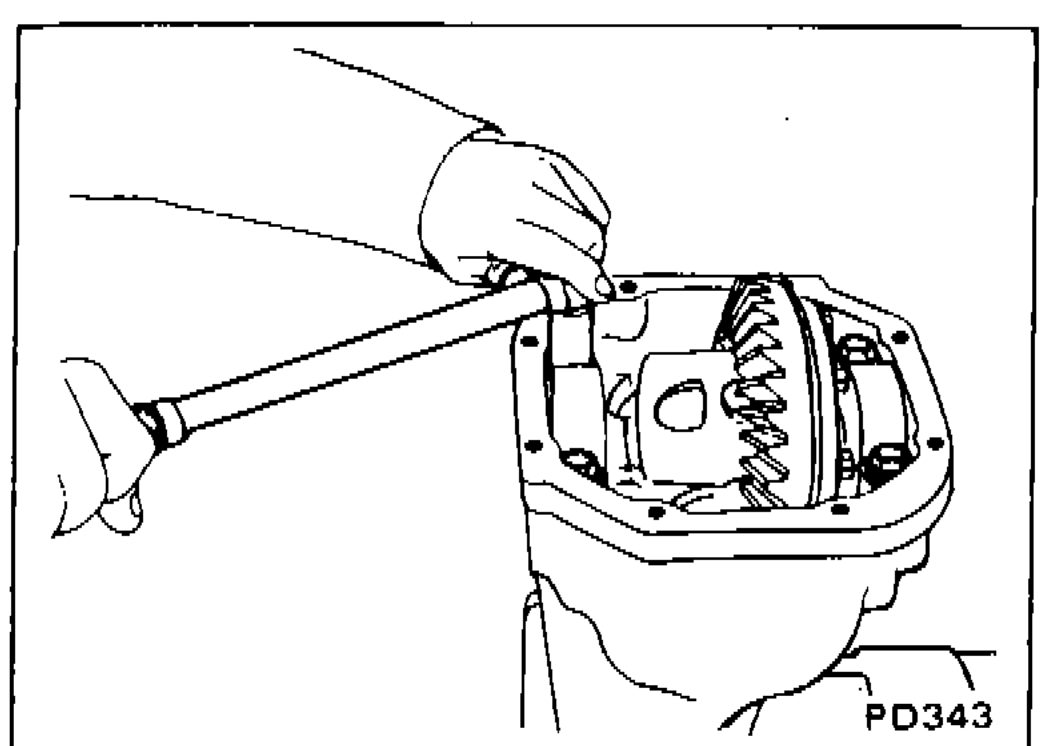

    Remove side bearing caps.
    Technician removing side bearing caps from differential carrier using a tool
    PD343
  2. 4

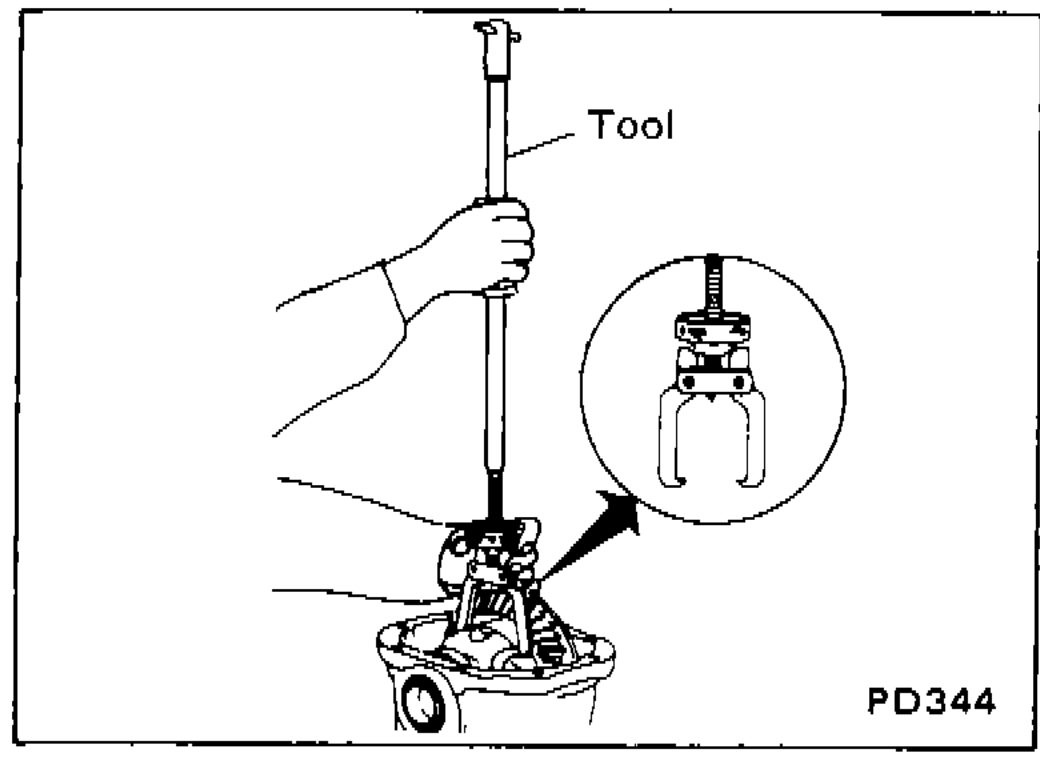

    Lift differential case assembly out with Tool. Tool number: HT72400000
    Keep the side bearing outer races together with inner cone — do not mix them up.
    Technician lifting differential case assembly out of carrier using Tool HT72400000
    PD344
  3. 5

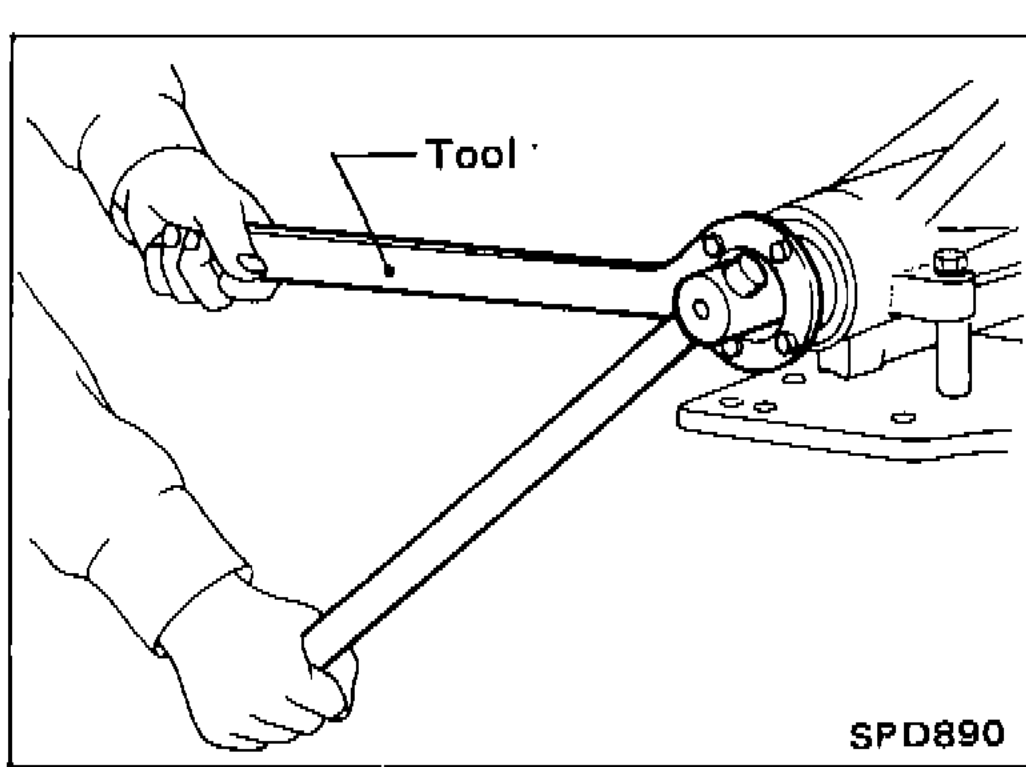

    Loosen drive pinion nut and pull off companion flange.
    Technician loosening drive pinion nut using a tool and holding bar
    SPD890
