CLUTCH RELEASE MECHANISM

CL-9prose procedure

INSPECTION

  1. 1
    Check release bearing to see that it rolls freely and is free from noise, cracks, pitting or wear. Replace if necessary.
  2. 2
    Check release sleeve and withdrawal lever rubbing surface for wear, rust or damage. Replace if necessary.

LUBRICATION

  1. 1
    Apply recommended grease to contact surface and rubbing surface.
    Pack this recess with grease.
    Apply lithium-based grease including molybdenum disulphide.

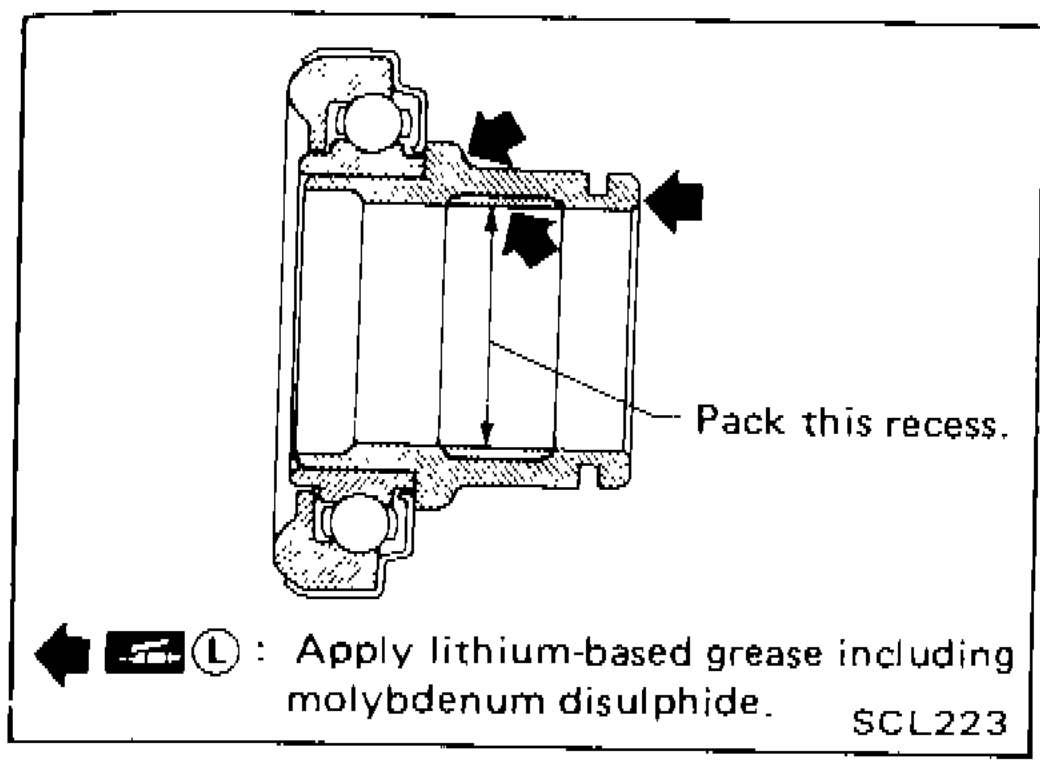

    Cross-section diagram of clutch release bearing assembly showing lubrication points (arrows) and recess to be packed with grease. Legend indicates lithium-based grease including molybdenum disulphide to be applied.
    SCL223
