CLUTCH DISC AND CLUTCH COVER

CL-11prose procedure

Clutch Cover and Flywheel

1

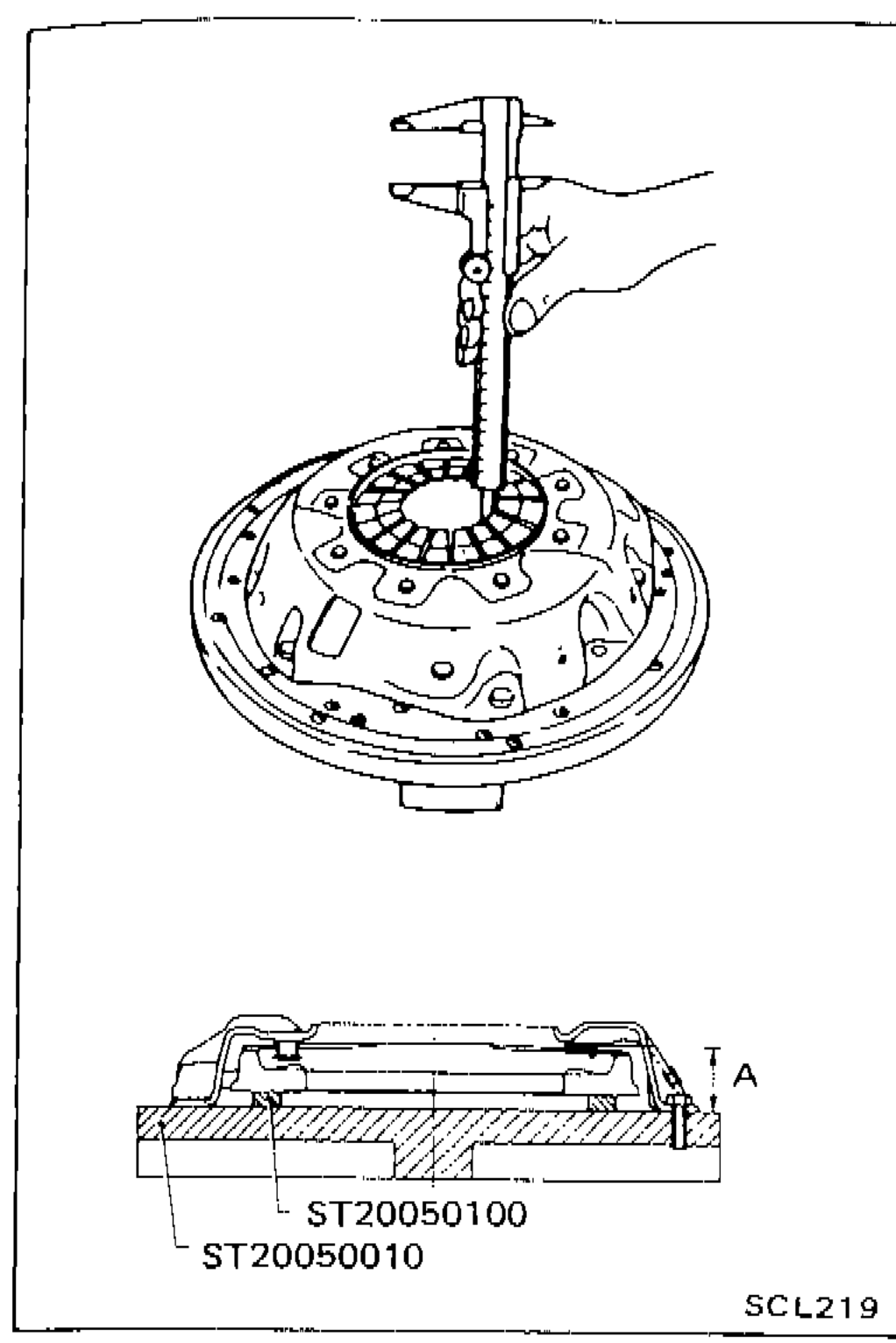

Set Tool and check height and unevenness of diaphragm spring.
SCL219
2
Check thrust rings for wear or damage by shaking cover assembly and listening for chattering noise, or lightly hammering on rivets for a slightly cracked noise. Replace clutch cover assembly if necessary.
3
Check pressure plate and clutch disc contact surface for slight burns or discoloration. Repair pressure plate with emery paper.
4
Check pressure plate and clutch disc contact surface for deformation or damage. Replace if necessary.
5

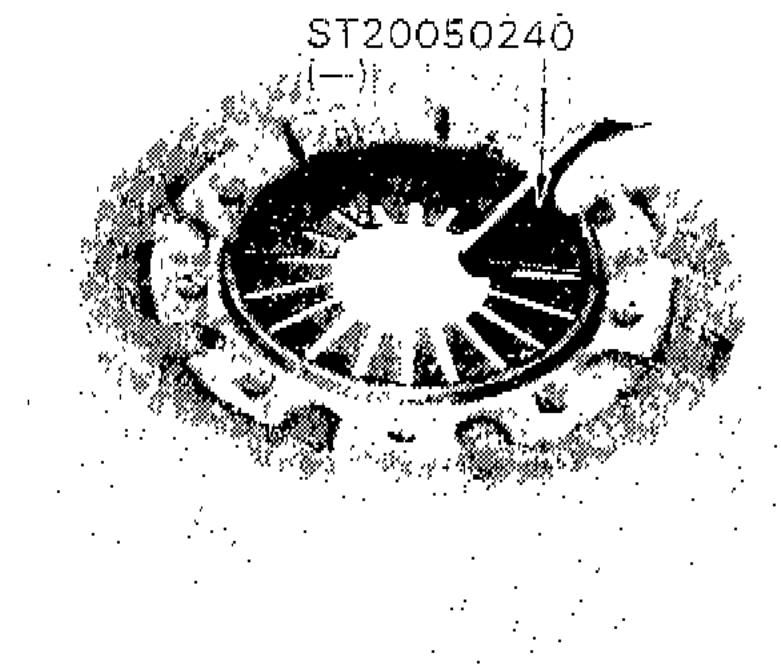

Adjust unevenness of diaphragm spring with Tool.

Specification	Value
Diaphragm spring height "A"	33.0 - 35.0 mm (1.299 - 1.378 in)mm (in)
Uneven limitDiaphragm spring unevenness	0.7 mm (0.028 in)mm (in)

Diaphragm spring height "A"

33.0 - 35.0 mm (1.299 - 1.378 in)mm (in)

Uneven limitDiaphragm spring unevenness

0.7 mm (0.028 in)mm (in)

1
Check contact surface of flywheel for slight burns or discoloration. Repair flywheel with emery paper.
SCL349
2

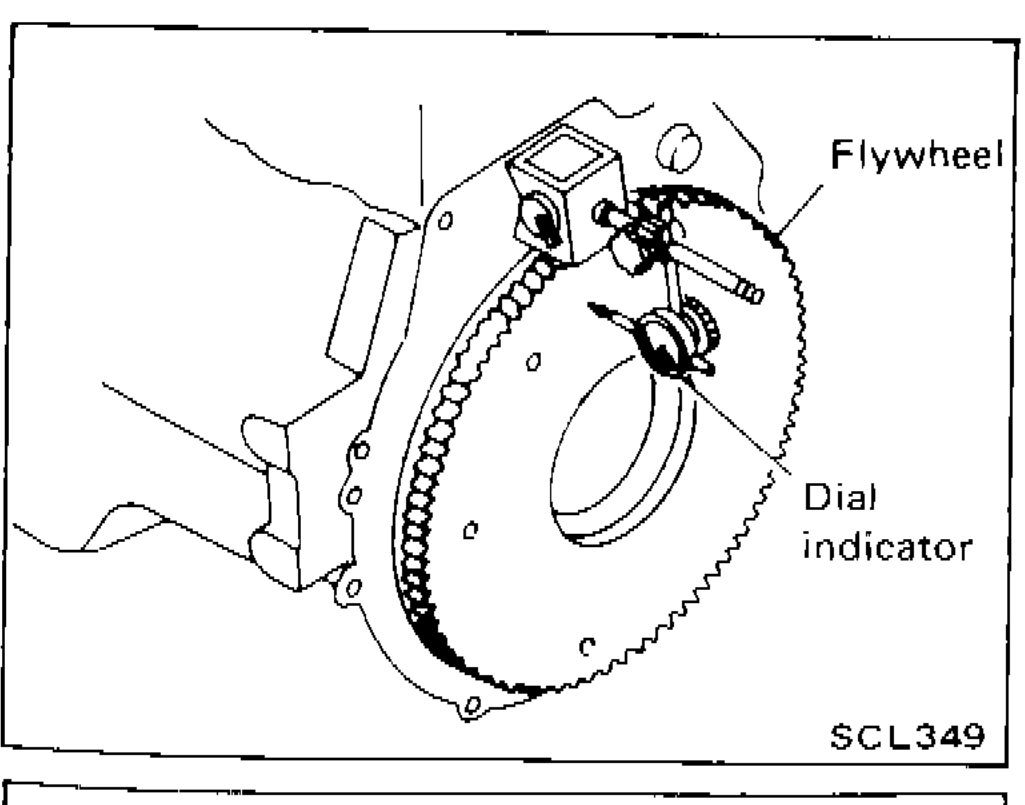

Check flywheel runout.

Specification	Value
Runout (Total indicator reading)Flywheel runout	0.15 mm (0.0059 in) or lessmm (in)

Runout (Total indicator reading)Flywheel runout

0.15 mm (0.0059 in) or lessmm (in)

1

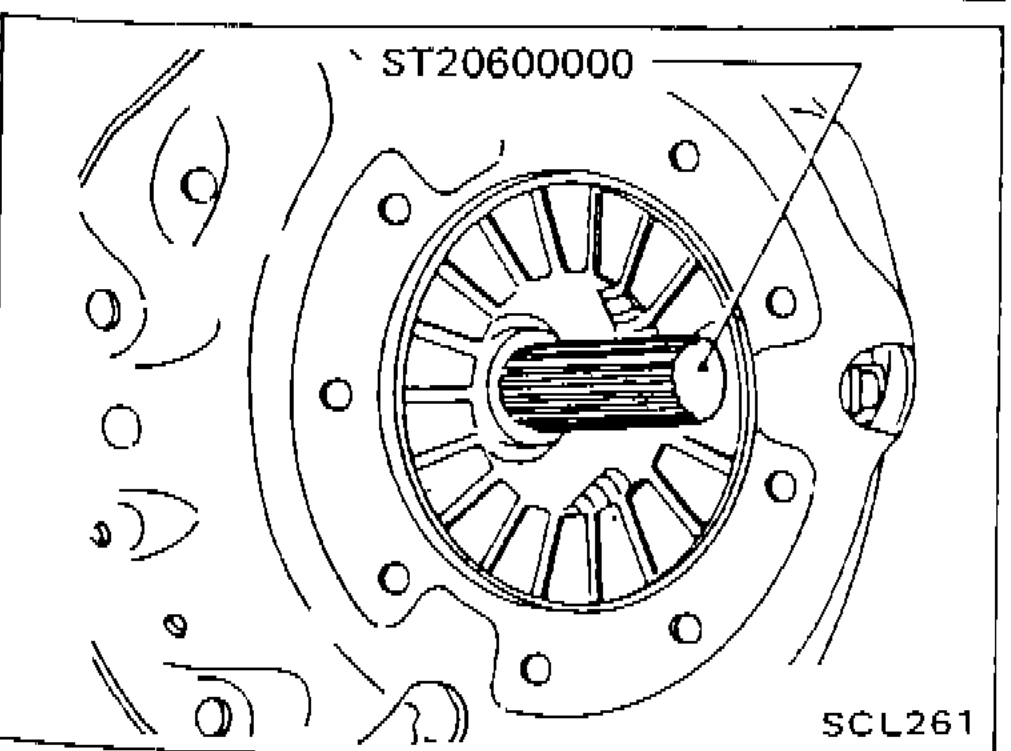

Insert Tool into clutch disc hub when installing clutch cover and disc.
SCL261
