Nissan 200SX S13 silhouetteS13

CLUTCH RELEASE MECHANISM

CL-8prose procedure
Parts DiagramFig. fig1
Parts diagram
#Part NameNotes
1Dust coverApply lithium-based grease including molybdenum disulphide
2Withdrawal leverApply lithium-based grease including molybdenum disulphide
3Retainer spring—
4Holder spring—
5Release sleeveApply lithium-based grease including molybdenum disulphide
6Release bearingApply lithium-based grease including molybdenum disulphide

Removal and Installation

  1. 1

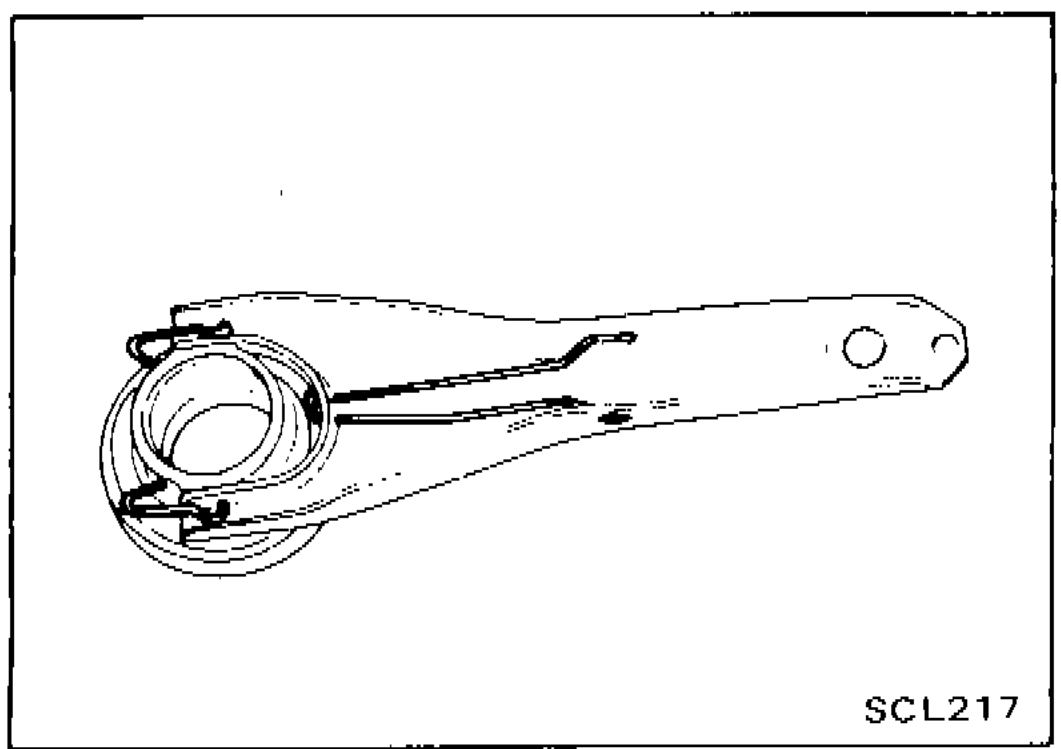

    Install retainer spring and holder spring.
    Photo showing withdrawal lever with release bearing assembly, illustrating installation of retainer spring and holder spring.
    SCL217
  2. 2

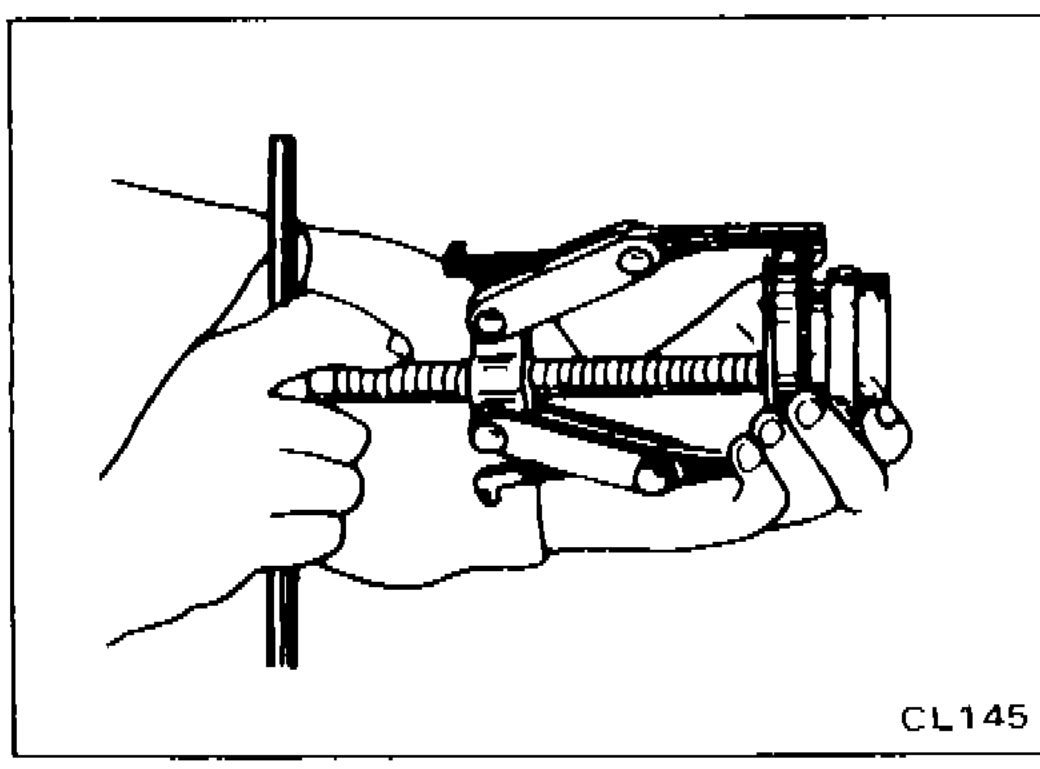

    Remove release bearing.
    Photo showing hands removing the release bearing from the withdrawal lever assembly.
    CL145
  3. 3
    Install release bearing with suitable drift.
    Illustration showing installation of release bearing using a suitable drift pressed downward onto the bearing assembly.
    SCL222
